JIS MARINE VALVE

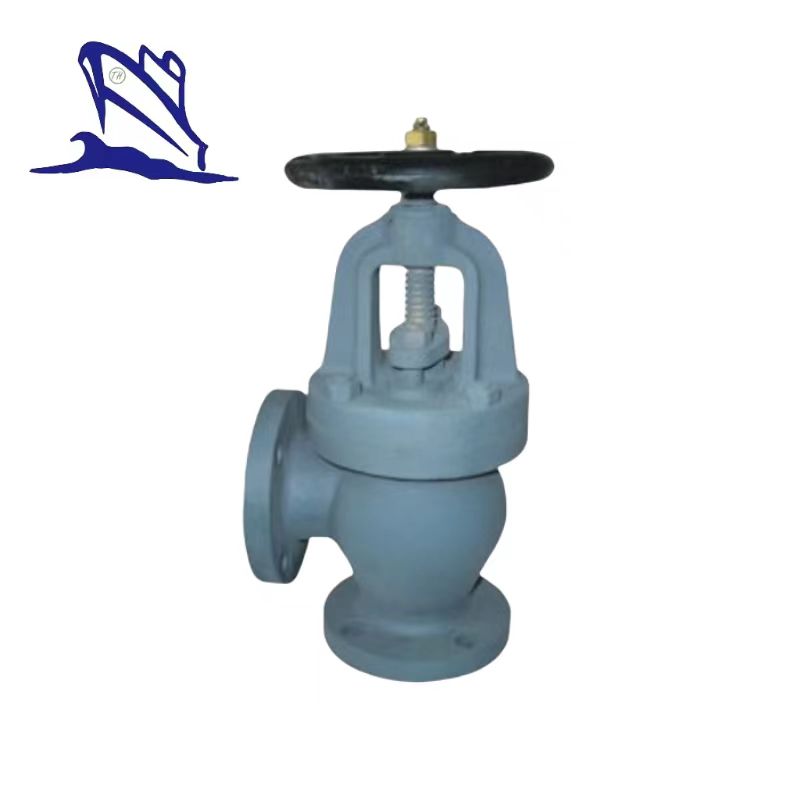

Marine Cast Iron Angle Globe Valve JIS F7308 10k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:10K.

5.DN:50mm-300mm.

6.Main material:

• Body/Bonnet:FC-HT200;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Applicaton:Oil piping,water piping and steam piping.

8.Function:Such valve are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Iron Angle Globe Valve JIS F7308 10k:
