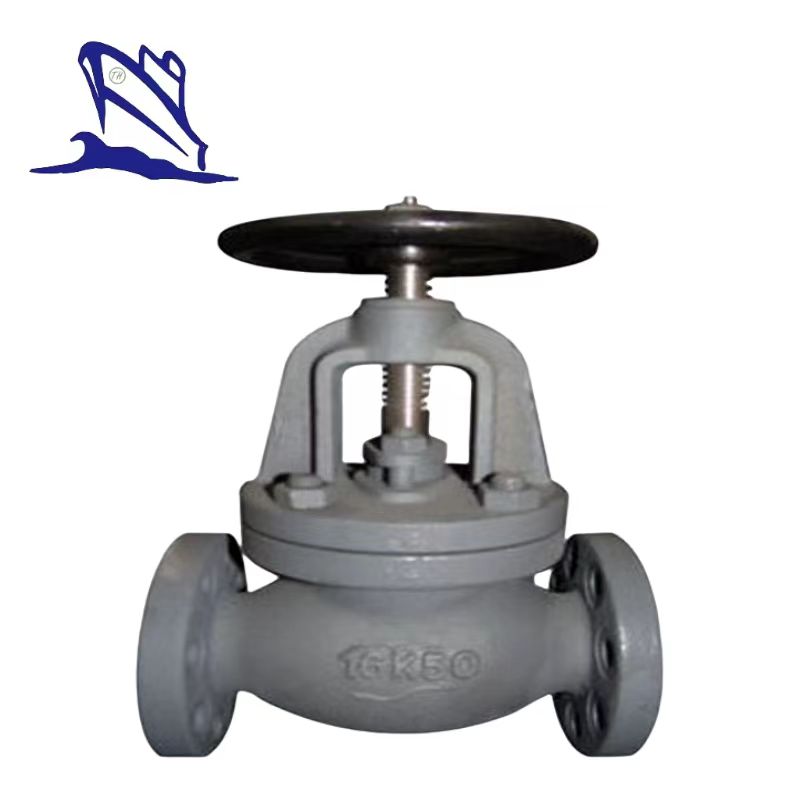

Marine Cast Iron Straight Globe Valve JIS F7309 16k
Marine Cast Iron Straight Globe Valve JIS F7309 16k:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:16k.
5.DN:50mm-200mm.
6.Main material：
- Body/Bonnet:HT200;
- Seat:SS410/BC6;
- Stem:SS410/H62;
- Disc:SS410/BC6.
7.Application:Oil piping,water piping and steam piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
9.Specificaton of Marine Cast Iron Straight Globe Valve JIS F7309 16k:
| IMPA | Type | DN | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
| 750261 | F7309 16k Globe | 50 | 220 | 155 | 120 | 8xΦ19 | 19.60 |
| 750262 | 65 | 270 | 175 | 140 | 8xΦ19 | 28.30 | |
| 750263 | 80 | 300 | 200 | 160 | 8xφ23 | 40.40 | |
| 750264 | 100 | 350 | 225 | 185 | 8xΦ23 | 56.90 | |
| 750265 | 125 | 430 | 270 | 225 | 8xΦ25 | 89.50 | |
| 750266 | 150 | 500 | 305 | 260 | 12xΦ25 | 123.00 | |
| 750267 | 200 | 570 | 350 | 305 | 12xΦ25 | 188.00 |
