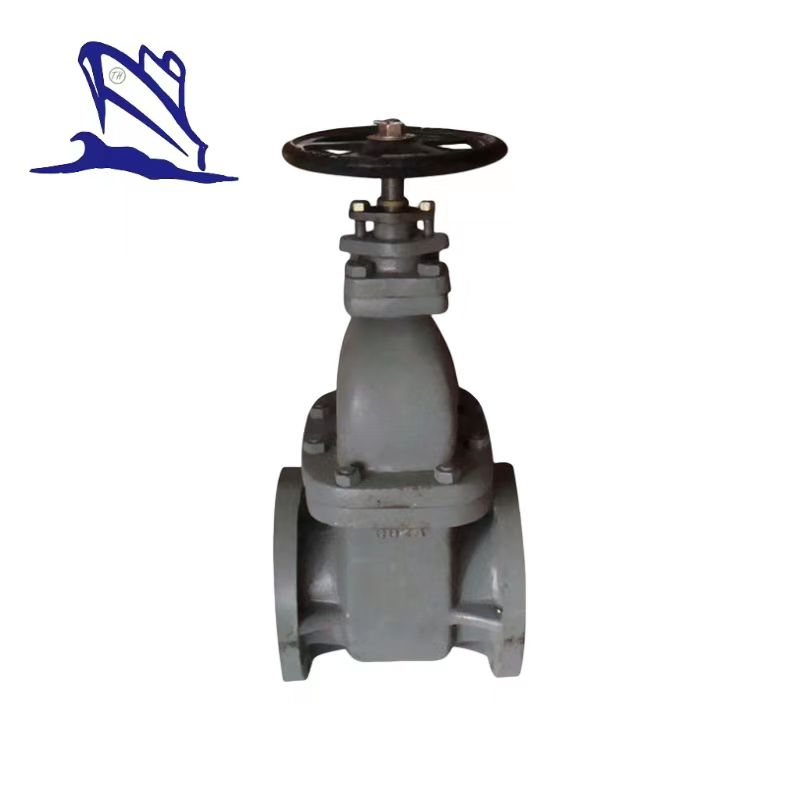

Marine Cast Iron Gate Valve JIS F7364 10k
Marine Cast Iron Gate Valve JIS F7364 10K:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:10k.
5.DN:50mm-350mm.
6.Main material:
- Body/Bonnet:HT200;
- Seat:SS410/BC6;
- Stem:SS410/H62;
- Disc:SS410/BC6.
7.Application:Oil piping,water piping and steam piping.
8.Function:Such valves are used for on-off duty.
9.Specification of Marine Cast Iron Gate Valve JIS F7364 10K:
| IMPA | Type | DN/(mm) | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/(kg) |
| 750821 | F7364 10k Gate | 50 | 200 | 155 | 120 | 4xΦ19 | 19.40 |
| 750822 | 65 | 220 | 175 | 140 | 4xΦ19 | 27.60 | |
| 750823 | 80 | 230 | 185 | 150 | 8xΦ19 | 33.00 | |
| 750824 | 100 | 250 | 210 | 175 | 8xΦ19 | 45.80 | |
| 750825 | 125 | 270 | 250 | 210 | 8xΦ23 | 65.90 | |
| 750826 | 150 | 290 | 280 | 240 | 8xΦ23 | 86.00 | |
| 750827 | 200 | 320 | 330 | 290 | 12xΦ23 | 136.00 | |
| 750828 | 250 | 380 | 400 | 355 | 12xΦ25 | 230.00 | |
| 750829 | 300 | 440 | 445 | 400 | 16xΦ25 | 331.00 | |
| 750830 | 350 | 500 | 490 | 445 | 16xΦ25 | 433.00 | |
| 750831 | 400 | 590 | 560 | 510 | 16xΦ27 | 597.00 |
