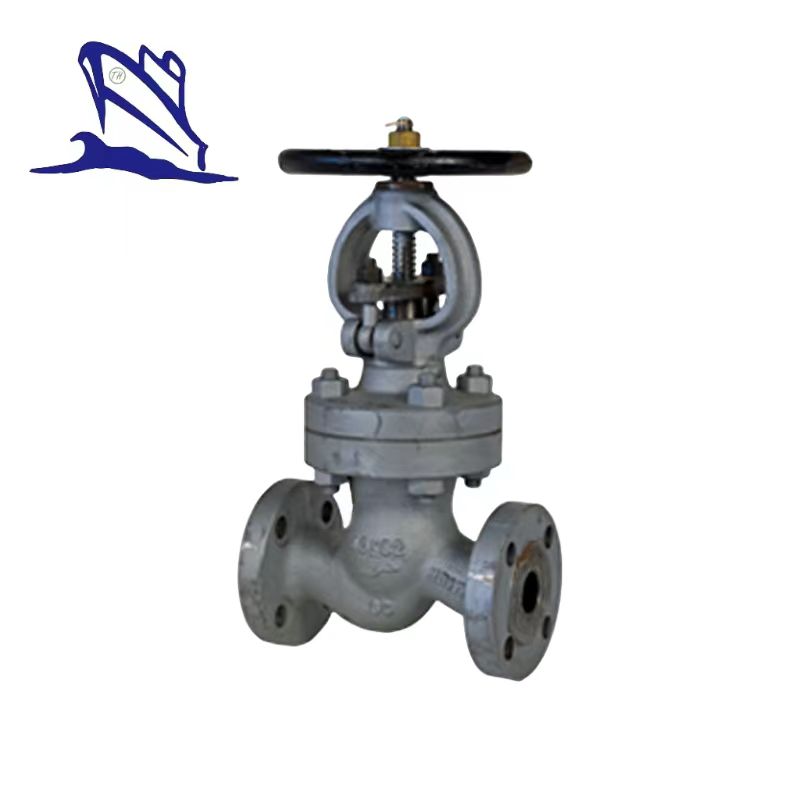

Marine Cast Steel Globe Valve JIS F7317 40k
Marine Cast Steel Globe Valve JIS F7317 40k:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:40k.
5.DN:32mm-150mm.
6.Main material:
- Body/Bonnet:FS;
- Seat:SS410;
- Stem:SS410;
- Disc:SS410.
7.Application:Air piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
9.Specification of Marine Cast Steel Globe Valve JIS F7317 40k:
IMPA | DN/mm | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/Cmm) | Flange hole/n*d(mm) | Weight/kg |
750471 | 32 | 229 | 140 | 105 | 4xΦ19 | 25.40 |
750472 | 40 | 241 | 160 | 120 | 4xΦ23 | 30.20 |
750473 | 50 | 292 | 165 | 130 | 8xΦ19 | 41.00 |
750474 | 65 | 330 | 200 | 160 | 8xΦ23 | 62.30 |
750475 | 80 | 356 | 210 | 170 | 8xΦ23 | 79.00 |
750476 | 100 | 432 | 250 | 205 | 8xΦ25 | 140.00 |
750477 | 125 | 508 | 300 | 250 | 8xΦ27 | 197.00 |
750478 | 150 | 559 | 355 | 295 | 12xΦ33 | 298.00 |
