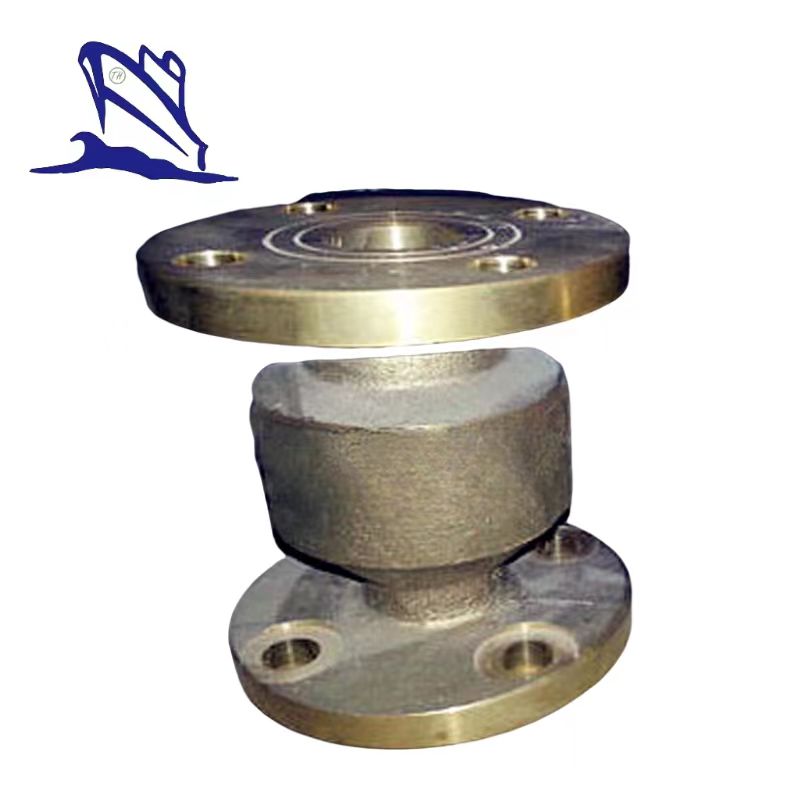

Marine Cast Bronze Foot Valve JIS F3056 5k/10k
Marine Cast Bronze Foot Valve JIS F3056 5k/10k:
1.Test standard:JISF7400.
2.End standard:JIsb2220.
3.End type:Flange.
4.PN:5k/10k.
5.DN:40mm-80mm.
6.Main material:
- Body/Bonnet:BC6;
- Disc:BC6.
7.Specification of Marine Cast Bronze Foot Valve JIS F3056 5k/10k:
Marine Cast Bronze Foot Valve JIS F3056 5k
DN/mm | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) |
40 | 130 | 120 | 95 | 4xΦ15 |
50 | 142 | 130 | 105 | 4xΦ15 |
80 | 194 | 180 | 145 | 4xΦ19 |
Marine Cast Bronze Foot Valve JIS F3056 10k
DN/mm | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) |
40 | 130 | 140 | 105 | 4xΦ19 |
50 | 142 | 155 | 120 | 4xΦ19 |
80 | 194 | 185 | 150 | 8xΦ19 |
