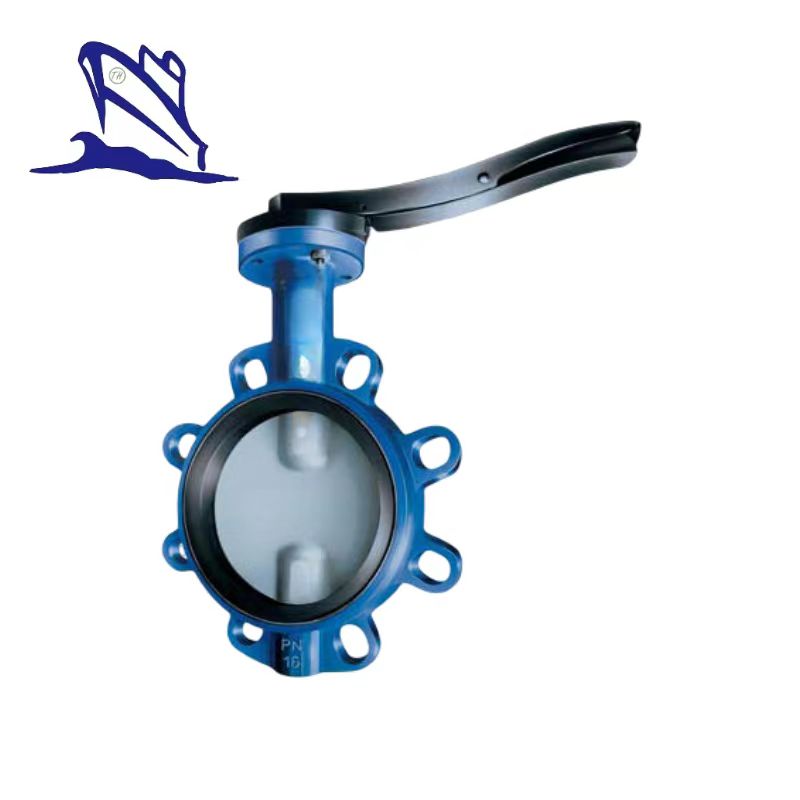

Marine Lug Type butterfly Valve JIS F7480 5k/10k
Marine Lug Type butterfly Valve JIS F7480 5k/10k:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Lug.
4.PN:5k/10k.
5.DN:50mm-400mm.
6.Main material:
- Body/Bonnet:Ductile Iron/Cast Iron;
- Seat:NBR;
- Stem:SUS403;
- Disc:SUS304/BC6.
7.Application:Oil piping,steam piping and water piping.
8.Test pressure:
PN | 5k | 10k |
Body/Mpa | 1.03 | 2.06 |
Seat/Mpa | 0.76 | 1.47 |

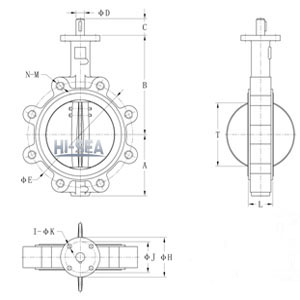

9.Specification of Marine Lug Type butterfly Valve JIS F7480 5k/10k:
Marine Lug Type butterfly Valve JIS F7480 5k(handle&worm)
DN/mm | D/mm | D1/mm | L/mm | n-Th/mm | Weight/kg |
50 | 94 | 105 | 43 | 4-M12 | 4.1 |
65 | 108 | 130 | 46 | 4-M12 | 5.5 |
80 | 126 | 145 | 46 | 4-M16 | 6.8 |
100 | 152 | 165 | 52 | 8-M16 | 8.6 |
125 | 182 | 200 | 56 | 8-M16 | 10.5 |
150 | 210 | 230 | 56 | 8-M20 | 12.5 |
200 | 263 | 280 | 60 | 8-M20 | 21.4 |
250 | 327 | 345 | 68 | 12-M20 | 29.3 |
300 | 370 | 390 | 78 | 12-M20 | 44 |
350 | 414 | 435 | 78 | 12-M22 | 62.2 |
400 | 474 | 495 | 102 | 16-M22 | 80 |
Marine Lug Type butterfly Valve JIS F7480 10k(handle&worm)
DN/mm | D/mm | D1/mm | L/mm | n-Th/mm | Weight/kg |
50 | 94 | 120 | 43 | 4-M16 | 4.1 |
65 | 108 | 140 | 46 | 4-M16 | 5.5 |
80 | 126 | 150 | 46 | 8-M16 | 6.8 |
100 | 152 | 175 | 52 | 8-M16 | 8.6 |
125 | 182 | 210 | 56 | 8-M16 | 10.5 |
150 | 210 | 240 | 56 | 8-M20 | 12.5 |
200 | 263 | 290 | 60 | 12-M20 | 21.4 |
250 | 327 | 355 | 68 | 12-M22 | 29.3 |
300 | 370 | 400 | 78 | 16-M22 | 44 |
350 | 414 | 445 | 78 | 16-M22 | 62.2 |
400 | 474 | 510 | 102 | 16-M24 | 80 |
