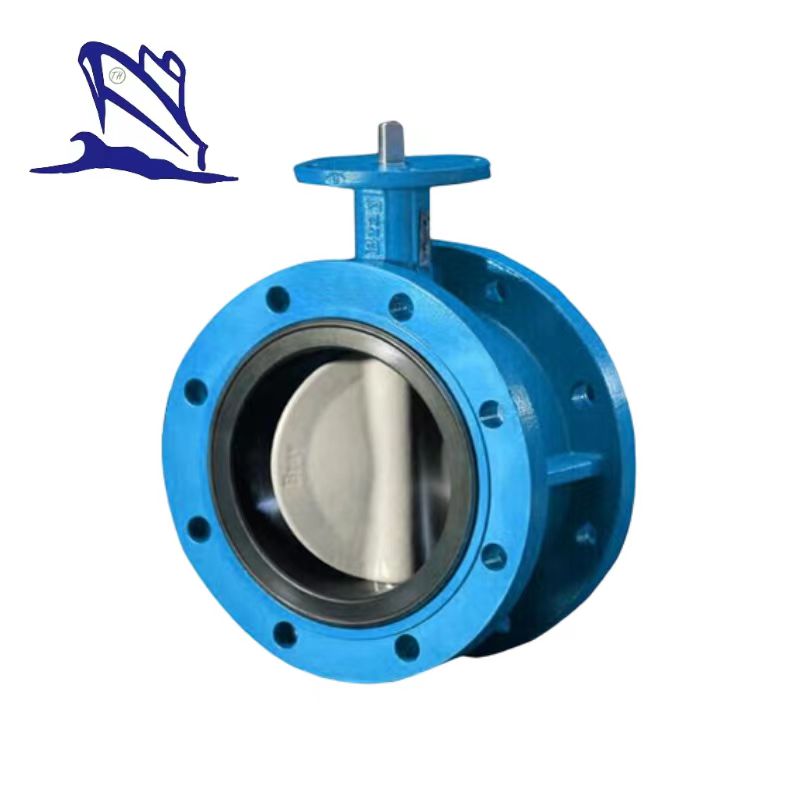

Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k
Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k:
1.Test standard: JISF7400.
2.End standard: JISB2220.
3.End type:Flange.
4.Pressure: 5k/10k.
5.DN: 125mm-350mm.
6.Main material:
- Body/Bonnet: FCD450/FC200;
- Seat: NBR;
- Stem: SUS403;
- Disc: SUS304/BC6.
7.Application:Water piping,oil piping,steam piping,acid piping etc.
8.Test pressure:
PN | 5K | 10K |
Body/Mpa | 1.03 | 2.06 |
Seat/Mpa | 0.76 | 1.47 |
9.Specification of Marine Double Flanged Type Butterfly Valve JIS F7480 5k/10k:
Marine Double Flanged Type Butterfly Valve JIS F7480 5k
DN/mm | D/mm | D1/mm | L/mm | n*d/mm | n-Th/mm |
125 | 250 | 200 | 100 | 4xΦ19 | 4-M16 |
150 | 280 | 230 | 100 | 4xΦ19 | 4-M16 |
200 | 330 | 280 | 100 | 4xΦ23 | 4-M20 |
250 | 400 | 345 | 110 | 8xΦ23 | 4-M20 |
300 | 445 | 390 | 110 | 8xΦ23 | 4-M20 |
350 | 490 | 435 | 120 | 8xΦ25 | 4-M22 |
Marine Double Flanged Type Butterfly Valve JIS F7480 10k
DN/mm | D/mm | D1/mm | L/mm | n*d/mm | n-Th/mm |
125 | 250 | 210 | 100 | 4xΦ23 | 4-M20 |
150 | 280 | 240 | 100 | 4xΦ23 | 4-M20 |
200 | 330 | 290 | 100 | 8xΦ23 | 4-M20 |
250 | 400 | 355 | 110 | 8xΦ25 | 4-M22 |
300 | 445 | 400 | 110 | 8xΦ25 | 8-M22 |
350 | 445 | 480 | 120 | 8xΦ25 | 8-M22 |
