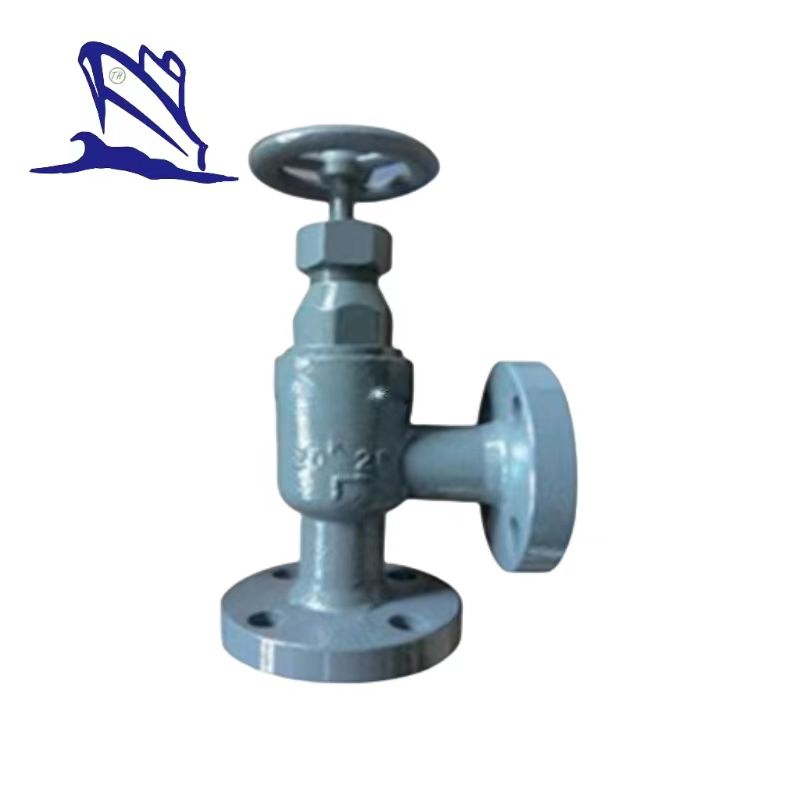

Marine Forged Steel Angle Valve JIS F7422 20k
Marine Forged Steel Angle Valve JIS F7422 20k:
1.Test standard:JISF7400.
2.End standard: JISB2220.
3.End type:F/S.
4.Pressure:20k.
5.DN:
- 'F'type:15mm-25mm;
- 'S'type:6mm and 10mm.
6.Main material:
- Body:SC49;
- Stem:SUS403;
- Disc:SUS402J1.
7.Application:Oil piping,water piping and steam piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
9.Specification of Marine Forged Steel Angle Valve JIS F7422 20k:
Marine Forged Steel Angle Valve JIS F7422 20k 'F'type
DN/mm | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
15 | 75 | 95 | 70 | 4xΦ15 | 4.20 |
20 | 80 | 100 | 75 | 4xΦ15 | 5.60 |
25 | 95 | 125 | 90 | 4xΦ19 | 7.20 |
Marine Forged Steel Angle Valve JIS F7422 20k 'S' type
DN/mm | L1/mm | L2/mm | K/mm | B2/mm | D3/mm | Weight/kg |
6 | 42 | 38 | 12 | 30 | M20x1.5 | 1.47 |
10 | 46 | 45 | 16 | 41 | M24x2 | 1.75 |
