Marine Forged Steel Globe Valve JIS F7336 30k
Marine Forged Steel Globe Valve JIS F7336 30k:
1.Test standard: JIS F7400.
2.End standard: JIS B2220.
3.End type: F/S/U.
4.Pressure: 30k.
5.DN:
- F type: 15mm-25mm;
- S type: 6mm and 10mm;
- U type: 6mm and 10mm.
6.Main material:
- Body/Bonnet: SF45;
- Seat: SUS403;
- Stem: SUS403;
- Disc: SUS402JI.
7.Application:Oil piping,water ping and steam piping.
8.Function:Such valves are used for on-off duty and regulating the follow rate.
9.Specification of Marine Forged Steel Globe Valve JIS F7336 30k:

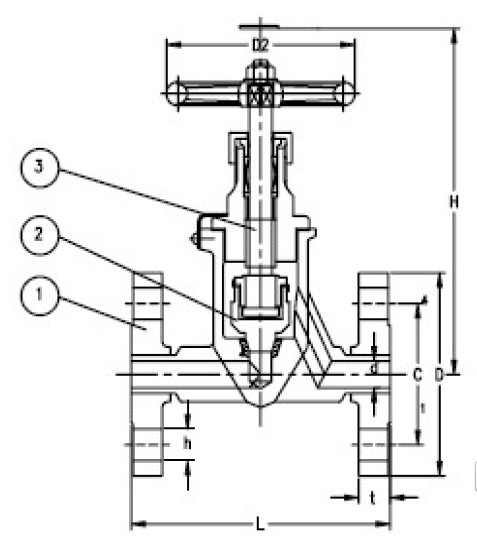

Marine Forged Steel Globe Valve JIS F7336 30k(F type)
DN | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
15 | 150 | 115 | 80 | 4xΦ19 | 5.60 |
20 | 170 | 120 | 85 | 4xΦ19 | 7.09 |
25 | 200 | 130 | 95 | 4xΦ19 | 9.46 |

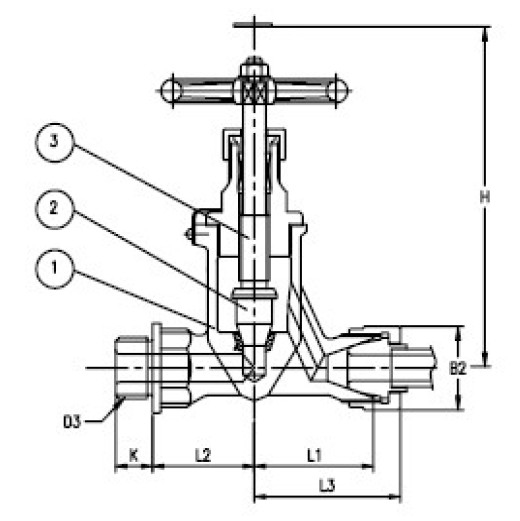

Marine Forged Steel Globe Valve JIS F7336 30k(S type)
DN/mm | L1/mm | L2/mm | L3/mm | K/mm | D3/mm | B2/mm | Weight/kg |
6 | 42 | 38 | 51 | 12 | M20x1.5 | 30 | 1.26 |
10 | 51 | 45 | 63 | 16 | M24x2.0 | 41 | 1.80 |
Marine Forged Steel Globe Valve JIS F7336 30k(U type)
DN/mm | L/mm | L1/mm | B2 | Weight/kg |
6 | 84 | 102 | 30 | 1.30 |
10 | 102 | 126 | 41 | 1.94 |
