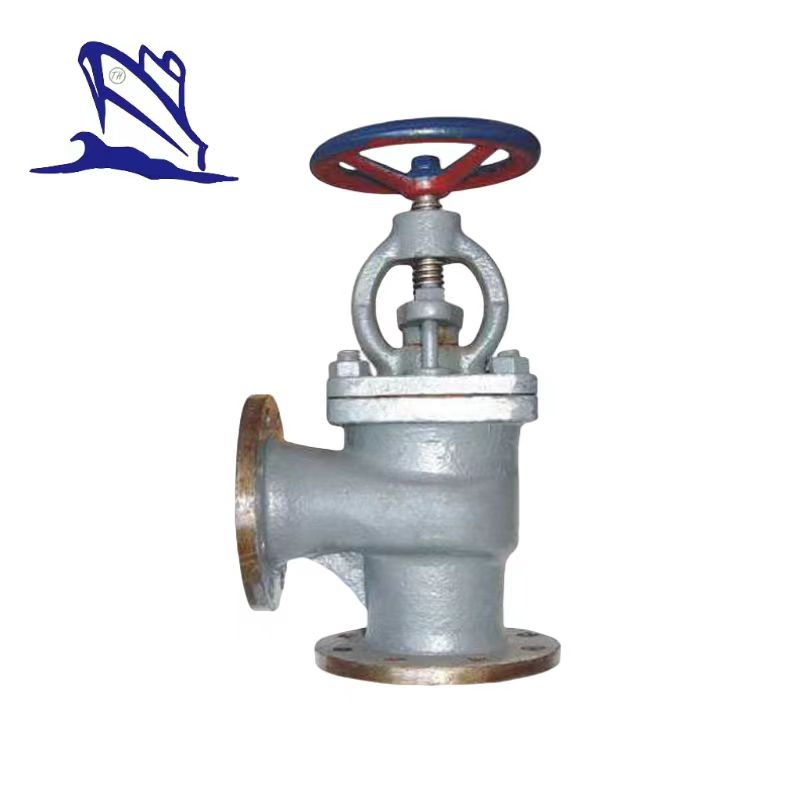

Marine Cast Ductile Iron angle valve JIS F7324(C) 16k
Marine Cast Iron angle valve JIS F7324(C) 16k:
1.Test standard: JISF7400.
2.End standard: JISB2220.
3.End type:Flange.
4.Pressure: 16k.
5.DN:15mm-40mm.
6.Main material:
- Body/Bonnet: FCD450;
- Seat: SS410/BC6;
- Stem: SS410/H62;
- Disc: SS410/BC6.
7.Application:Oil piping and water piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
9.Specification of Marine Cast Iron angle valve JIS F7324(C) 16k:
IMPA | DN/mm | Face to face/L(mm) | Flange diam/D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
750331 | 15 | 70 | 95 | 70 | 4xΦ15 | 2.73 |
750332 | 20 | 75 | 100 | 75 | 4xΦ15 | 3.65 |
750333 | 25 | 85 | 125 | 90 | 4xΦ15 | 5.16 |
750334 | 32 | 95 | 135 | 100 | 4xΦ15 | 6.72 |
750335 | 40 | 100 | 140 | 105 | 4xΦ19 | 8.13 |
