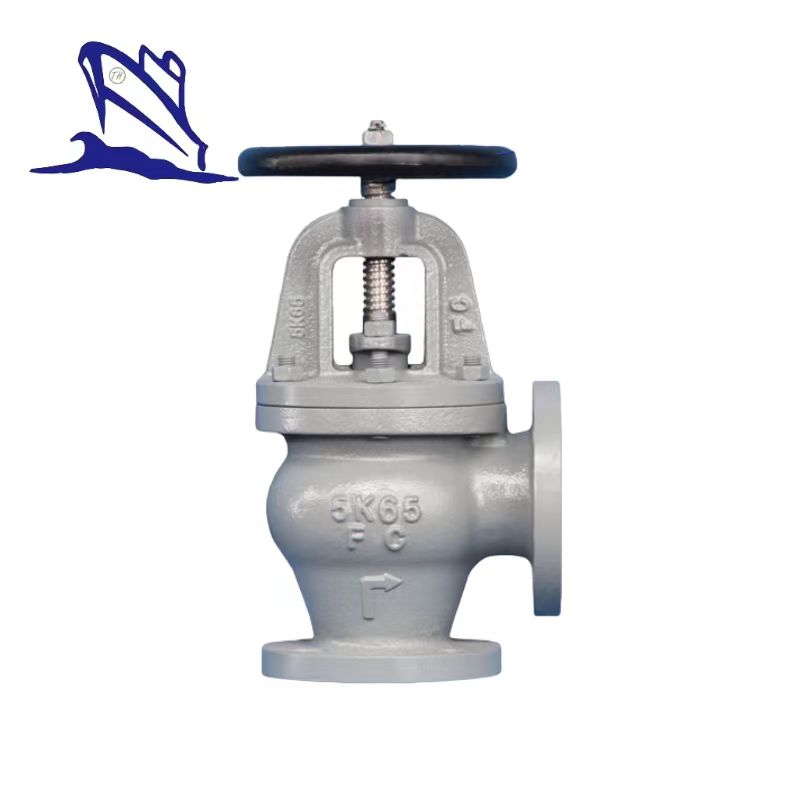

JIS MARINE VALVE

1. Application

The products are used for controlling the medium to open and close, preventing refluence in fuel oil piping, lubricating oil piping, water piping and steam piping at temperatures 205℃ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

2. Material

body: cast iron

seat: bronze

disc: bronze

stem: brass

3. Nominal Diameter ＆ Pressure

diameter: ND50~ND400

pressure: 10K

4. Features

(1). OEM, ODM service is acceptable. Our factory can produce according to customer's special requirements.

(2). Our products will be inspected by all production procedures.

(3). IACS Certificate: CCS,ABS,BV,LR,RINA.etc. are available.

(4). Manufactured according to JIS F7400 standards. The valve material can be chosen by customers.

5. Main Size List
