MARINE BOLLARD

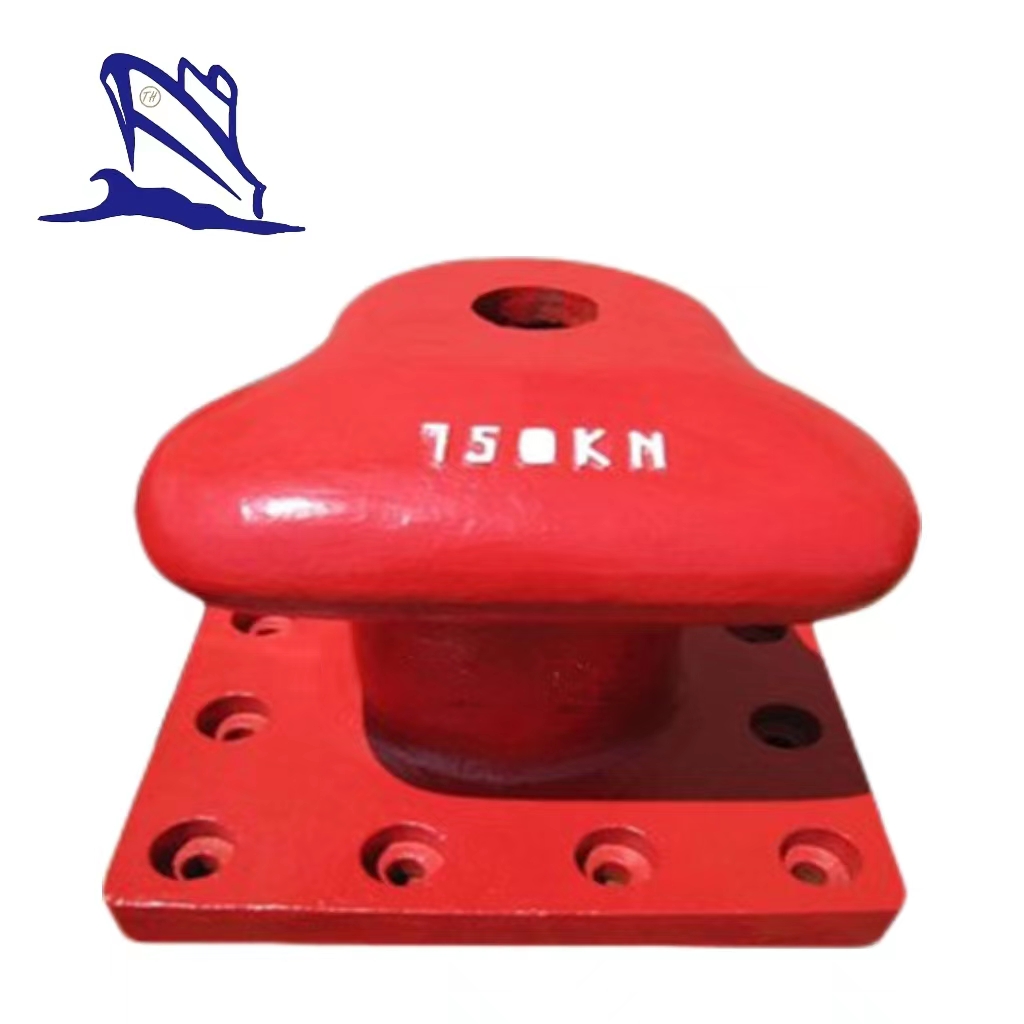

Curved Type Bollard

Description:

Curved type bollard is one type of dock bollards. We provide a large range of other marine bollards such as horn type bollard, kidney shaped bollard, T-head bollard, R type bollard, single bitt bollard, double bitts bollard, dock cleats and other standard type bollards. If you have special requirements about the bollards, we can produce the products according to your drawings. For more information, please feel free to contact us.

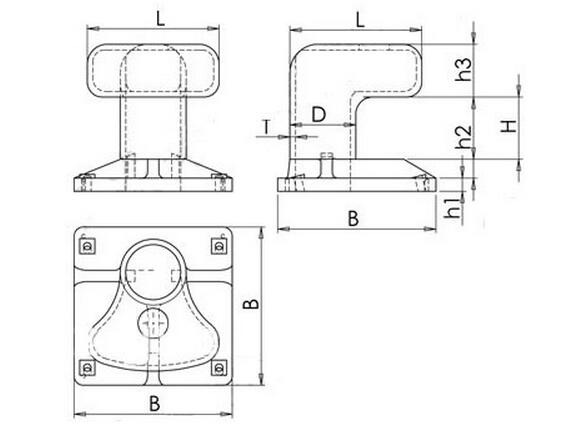

Parameters of Curved Type Bollard:

Type	Size(mm)								Weight (kg)
Type	D	H	T	L	B	h1	h2	h3	Weight (kg)
5T	150	170	20	300	350	30	60	120	70
10T	200	210	20	400	480	40	70	160	140
15T	250	250	20	500	600	50	80	200	245
25T	300	290	21	600	720	65	95	240	420
35T	300	290	25	600	720	65	95	240	440
50T	350	330	29	700	840	70	100	280	665
70T	400	370	33	800	1000	90	120	320	1100
100T	450	410	39	900	1200	95	125	360	1670

Features:

Model Type: Curved Type Bollard;

Material: Cast iron, Cast steel, Ductile cast iron.
