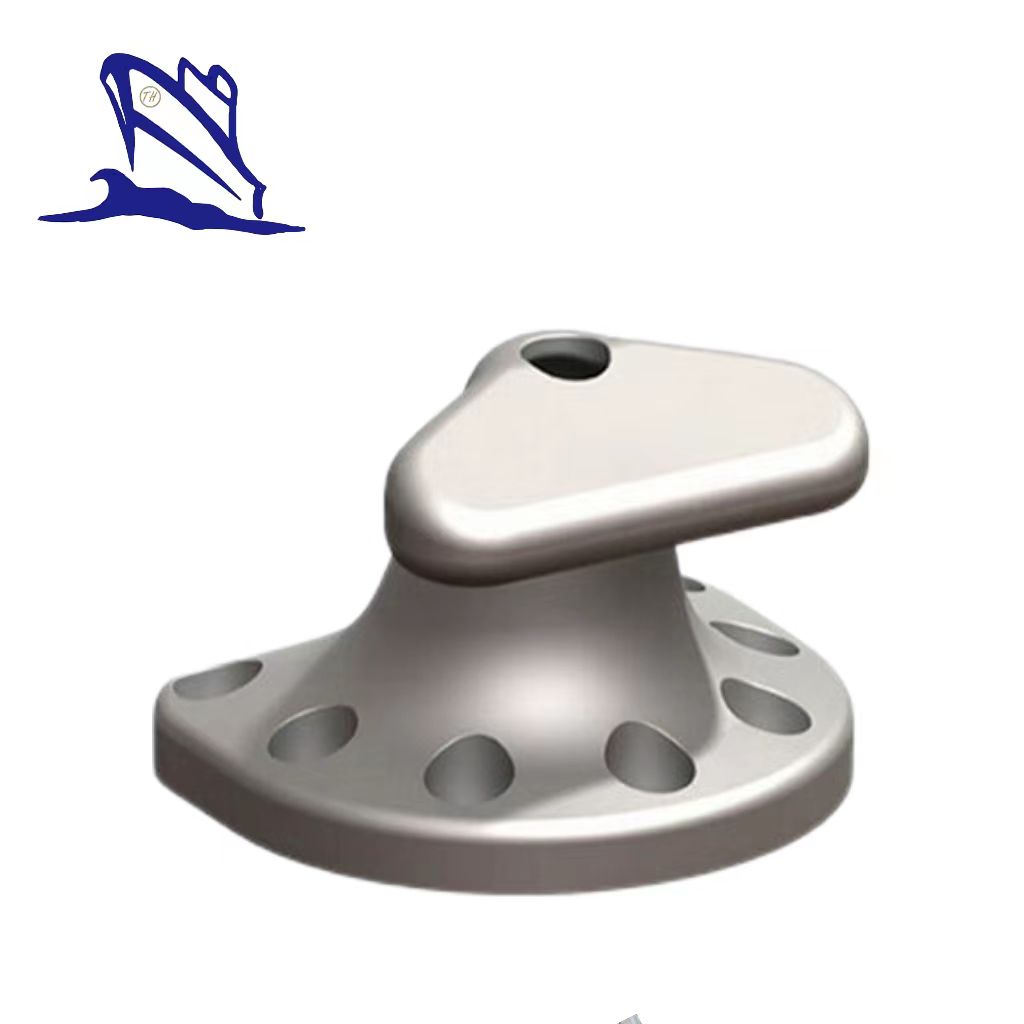

CVI Bollard
Description:
CVI bollard is one type of dock bollard. Also we can provide you the following dock bollards: K head dock bollard, stag horn type bollard, T head dock bollard, J type dock bollard, R type dock bollard, single bitt bollard, etc.. For more information, please do not hesitate to contact us.

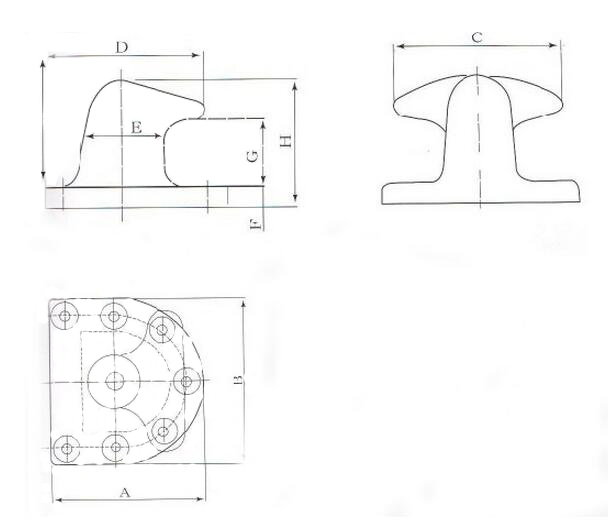

Parameters of CVI Bollard:
| Type | S.WL(T) | A | B | C | D | E | F | G | H |
| CVI-10 | 10 | 540 | 600 | 460 | 475 | 250 | 40 | 190 | 360 |
| CVI-20 | 20 | 540 | 600 | 460 | 475 | 250 | 50 | 190 | 370 |
| CVI-30 | 30 | 540 | 600 | 460 | 475 | 250 | 60 | 190 | 380 |
| CVI-50 | 50 | 650 | 700 | 600 | 570 | 300 | 80 | 230 | 450 |
| CVI-75 | 75 | 670 | 800 | 650 | 620 | 340 | 90 | 260 | 510 |
| CVI-100 | 100 | 810 | 1000 | 750 | 710 | 381 | 100 | 300 | 560 |
| CVI-150 | 150 | 810 | 1000 | 750 | 710 | 381 | 100 | 306 | 600 |
| CVI-200 | 200 | 800 | 1080 | 800 | 700 | 430 | 110 | 396 | 600 |
Features:
Model Type: CVI Bollard;
Material: Casting Steel;
Safe Working Load: 10T-200T;
Certificates: CCS, ABS, BV, LR, NK, RINA, etc.
