MARINE BOLLARD

Description:

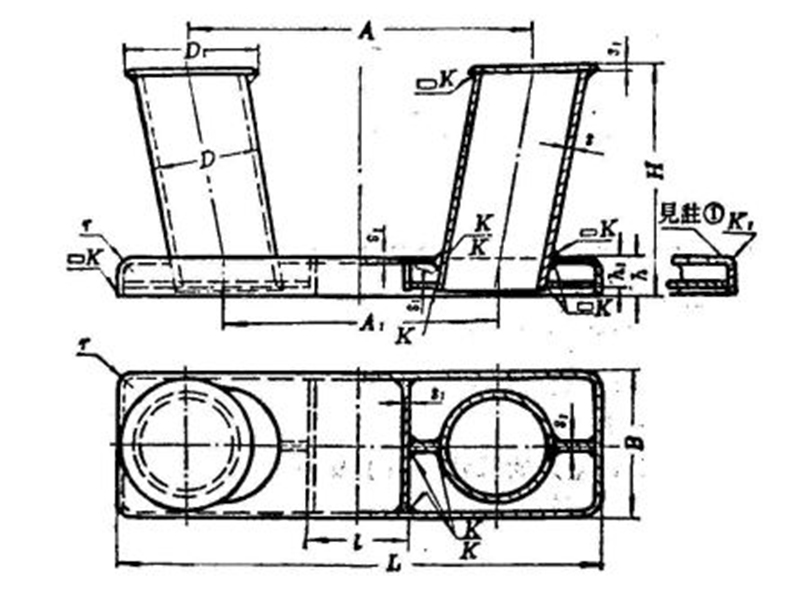

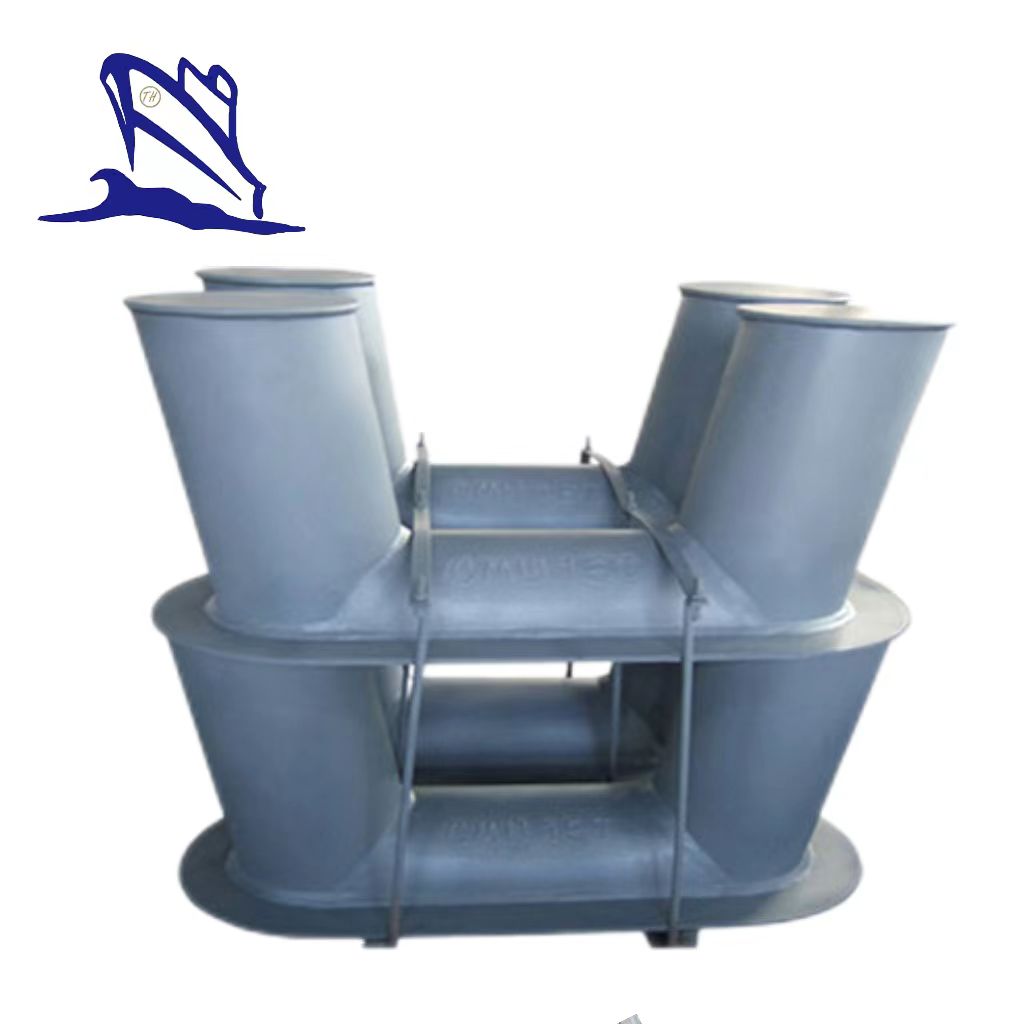

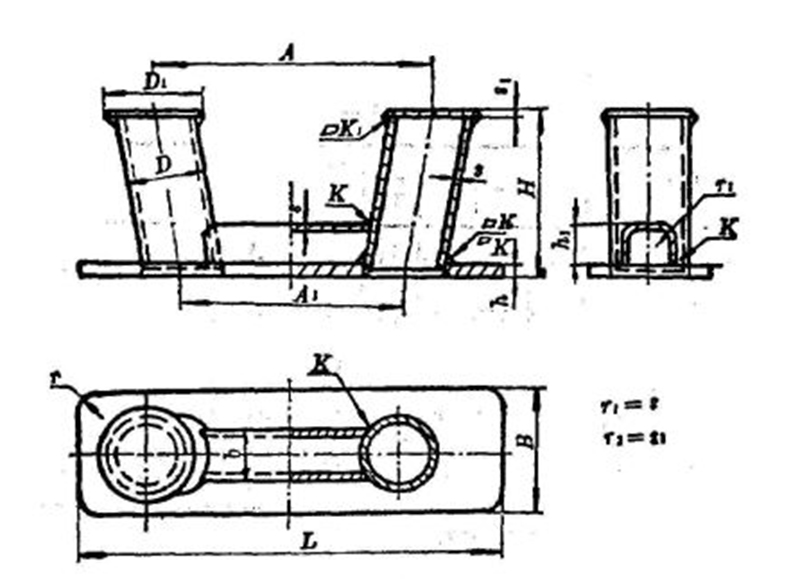

CBT 169-1999 welded inclined bollard has two types: DH type and SH type. DH type bollard is single base plate welded inclined bollard, and SH type is double base plates welded inclined bollard. SH type and DH type welded inclined bollards are produced in line with standard CBT 169-1999. The inclined column design of this product can prevent the ropes from falling off when the ship is swaying. Wire ropes and mooring ropes are applicable to this type of bollard.

Advantages:

CBT 169-1999 is a standard specification for welded inclined bollards used for mooring ships or vessels. The advantages of using CBT 169-1999 Welded Inclined Bollard include:

1. High Load Capacity: CBT 169-1999 Welded Inclined Bollard is designed to withstand high loads and forces, making it suitable for mooring large vessels and ships.

2. Safety: The inclined design of the bollard ensures that the mooring ropes are pulled downwards and away from the bollard, reducing the risk of rope slippage or sudden release.

3. Durability: CBT 169-1999 Welded Inclined Bollard is made of high-quality materials that are resistant to corrosion and wear, making it durable and long-lasting.

4. Easy to Install: The bollard can be easily installed using standard welding techniques, and it can be customized to fit the specific requirements of the mooring location.

5. Cost-Effective: CBT 169-1999 Welded Inclined Bollard is cost-effective compared to other mooring systems, and it requires minimal maintenance.

Overall, CBT 169-1999 Welded Inclined Bollard is an effective and reliable mooring system that offers a range of benefits, including high load capacity, safety, durability, easy installation, and cost-effectiveness.

Features

Model Type: Inclined Bollard;

Applicable Rope Types: Wire ropes, Mooring ropes;

Material: Steel Plate;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc.;

Standard: CBT 169-1999.

Parameters of CBT 169-1999 Welded Inclined Bollard:
