MARINE BOLLARD

Description:

Dock inclined double bitts bollard is one type of security dock bollard. Dock inclined double bitts bollard is a better choice for ship mooring. Dock bollard has various types which are designed according to berth capacity, wharf structure: K head dock bollard, stag horn type bollard, T head dock bollard, J type dock bollard, R type dock bollard, single bitt bollard, etc...

Advantages:

Dock inclined double bitts bollards are a popular choice for securing vessels at ports, and they offer several advantages over other types of bollards:

1. Increased Holding Power: Dock inclined double bitts bollards are designed to provide a more secure hold on mooring lines compared to traditional bollards. The inclined angle of the bollard helps to prevent lines from slipping off and keeps them secure.

2. Improved Safety: The inclined angle of the bollard helps to prevent lines from snapping back during mooring operations. This can reduce the risk of injury to crew members and damage to vessels.

3. Reduced Maintenance Costs: Dock inclined double bitts bollards require less maintenance compared to other types of bollards. The inclined design helps to reduce the wear and tear on the bollard and mooring lines, which can extend the life of the equipment.

4. Flexibility: Dock inclined double bitts bollards can accommodate a wide range of vessel sizes and types. The inclined angle allows for greater flexibility in positioning the bollard, which can make it easier to secure vessels in different locations along the dock.

Overall, dock inclined double bitts bollards offer improved safety, increased holding power, reduced maintenance costs, and greater flexibility compared to other types of bollards, making them an attractive choice for port operators and ship owners.

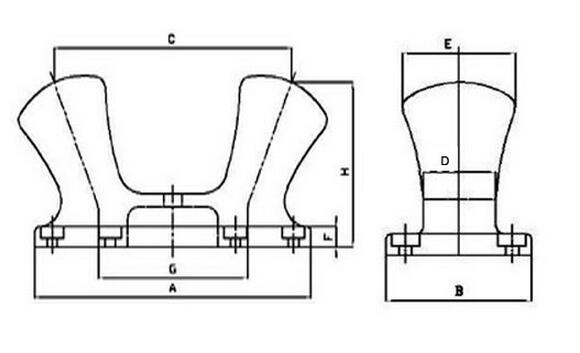

Parameters of Dock Inclined Double Bitts Bollard for Reference:

Capacity (ton)	Type	A	B	C	D	E	F	G	H	Bolts Qty.
20	DBA20	685	370	610	150	254	50	369	394	8
30	DBA30	825	420	725	180	290	58	445	451	8
50	DBA50	945	455	825	200	330	65	510	508	8
75	DBA75	1205	522	1040	255	405	75	650	622	10
100	DBA100	1390	635	1200	305	457	82	760	698	10
125	DBA125	1525	675	1320	330	500	85	840	752	10
150	DBA150	1650	720	1420	355	533	90	910	797	10
175	DBA175	1875	840	1650	406	610	105	1067	909	10
200	DBA200	2030	860	1750	432	660	115	1130	987	10

Features:

Model Type: Dock Bollard;

Material: Casting Steel;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc..
