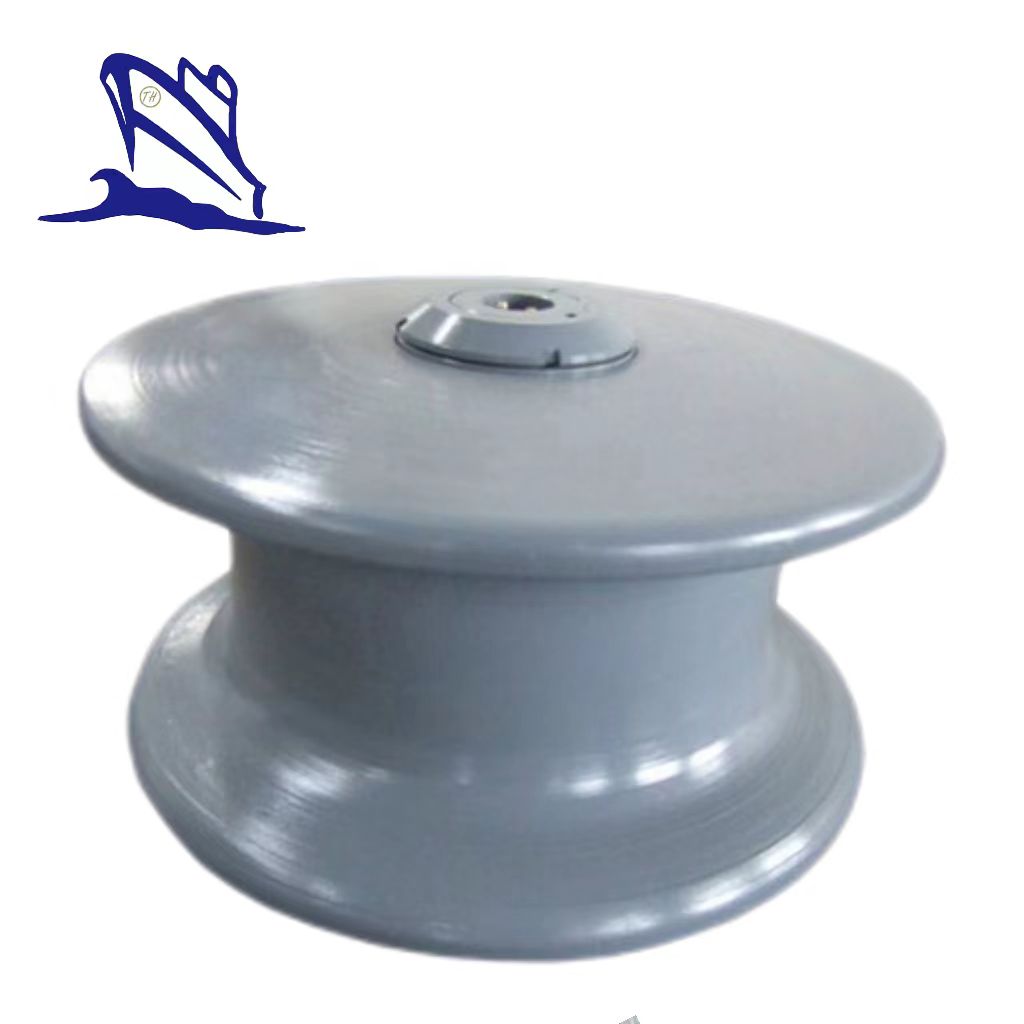

GB 10105-88 Marine Roller
Description:
Marine roller is an important ship mooring device that can protect mooring ropes and change the direction mooring ropes. GB 10105-88 marine roller for fairlead is made of casting steel. It can be customized for many colors for your requirement. If you’re interested in our marine rollers, please contact us.
Parameters of GB 10105-88 Marine Roller:
| Dia. of Roller | Max. Diameter of Applicable Rope | Size | Weight (kg) | |||||||||
Synthetic Fiber Rope | Hemp Rope | Steel(GB1102) Rope Stress Length 1550N/mm² | D1 | d0 | d7 | H | s | t | k | |||
| 6×24 | 6×37 | |||||||||||
| 150 | 32 | 45 | 17 | 15 | 240 | 90 | 79 | 154 | 5 | 12 | 9 | 24.8 |
| 200 | 40 | 55 | 22.5 | 19.5 | 310 | 115 | 99 | 186 | 5 | 14 | 10 | 49.3 |
| 250 | 45 | 65 | 24 | 24 | 380 | 135 | 119 | 230 | 6 | 14 | 10 | 92 |
| 300 | 50 | 70 | 30 | 28 | 440 | 155 | 129 | 255 | 7 | 16 | 12 | 127 |
| 350 | 55 | 75 | 37.5 | 34.5 | 500 | 175 | 149 | 271 | 7 | 18 | 13 | 168 |
| 400 | 65 | 85 | 41 | 39 | 560 | 185 | 159 | 307 | 7 | 20 | 14 | 252.5 |
| 450 | 80 | - | 44.5 | 43 | 630 | 210 | 178 | 316 | 7 | 20 | 14 | 310 |
Features:
Model Type: GB 10105-88 Marine Roller;
Material: Cast Steel;
Standards: GB 10105-88.
Certificates: CCS, ABS, BV, LR, NK, RINA, etc..
