MARINE FAIRLEAD

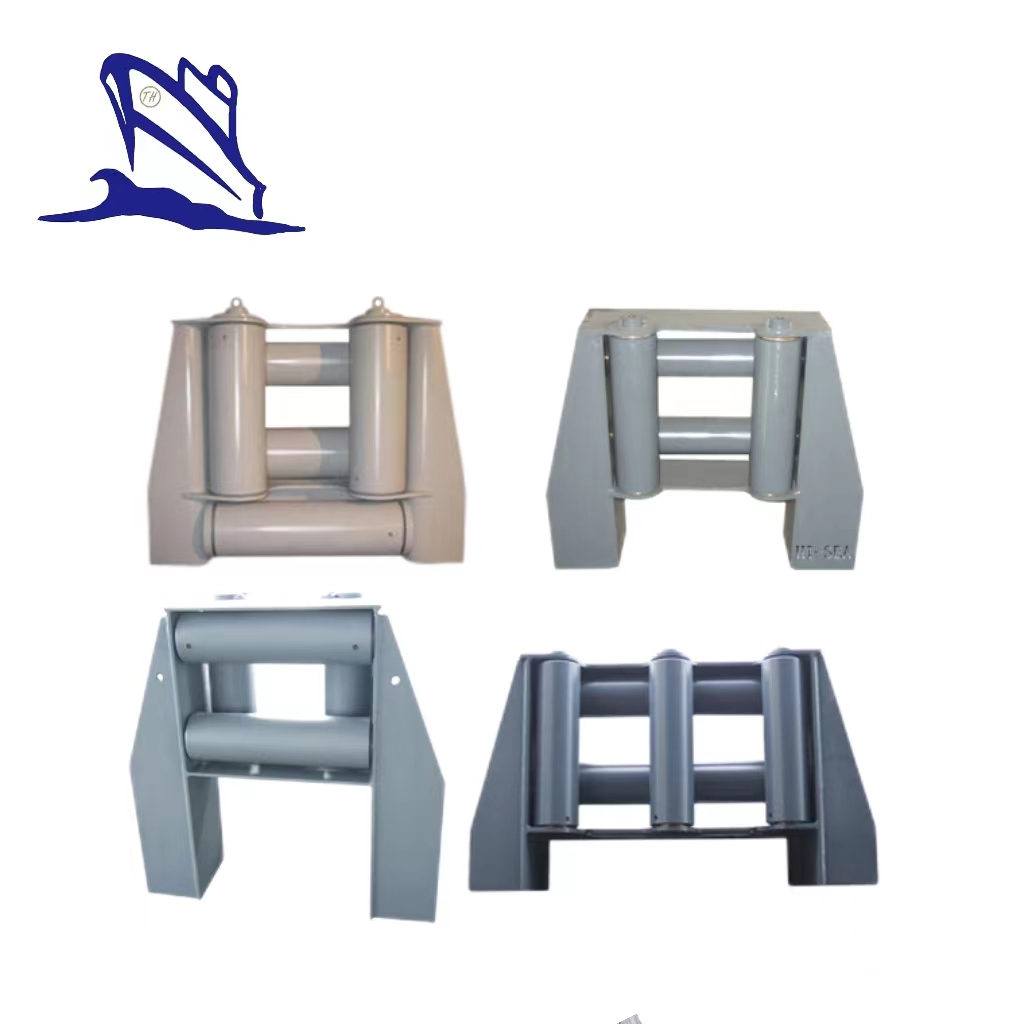

German Standard Roller Fairlead

Description:

According to DIN(German standard), there are four rollers fairlead, five rollers fairlead, six rollers fairlead, and we can also provide 12 rollers fairlead. Different DIN standard marine fairlead with different rollers are suitable for different diameters of wire ropes. The DIN standard four fairleads are widely used for small boats and different vessels, such as container vessels, tankers, bulk carriers, dry cargo vessels, etc.
Features:

Model Type: German Standard Roller Fairlead;

Material: Cast Steel and Steel Plate;

Standard: German Standard;

Certificates: ABS, SSC, BV, NINA, etc..

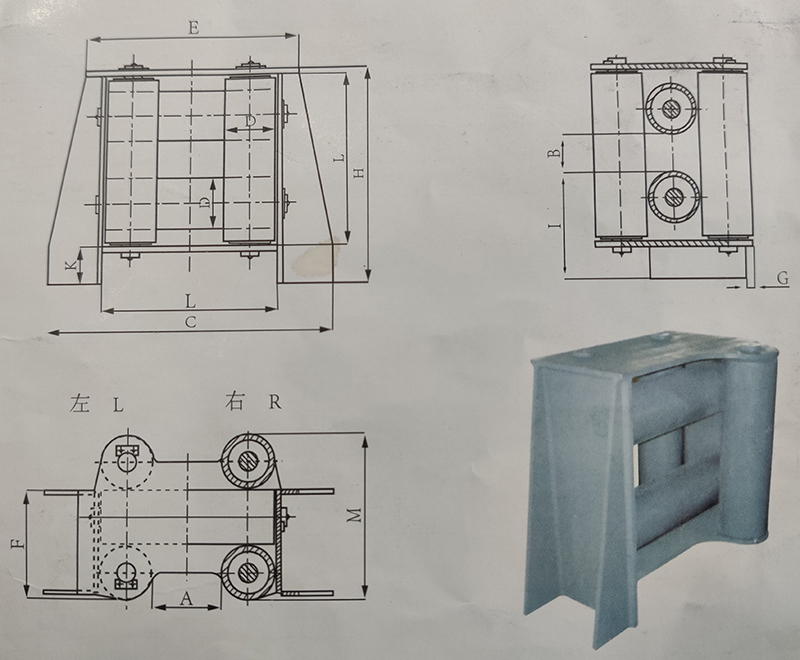

Type	Wire Φ	A	B	C	D	E	F	G	H	I	K	L	Weight （kg)
CF2	12	180	100	650	80	446	170	10	465	208	80	356	75
CF3	16	230	130	800	100	546	210	10	575	258	100	446	130
CF5	20	250	130	900	120	626	250	15	655	308	120	506	220
CF8	24	280	160	1000	140	716	290	20	730	328	120	576	330
CF12	32	300	160	1200	180	836	366	25	855	398	140	676	580
CF20	40	320	180	1350	245	1030	500	35	1045	505	180	830	1100
CF32	48	400	250	1700	300	1236	610	45	1260	583	200	1016	2210

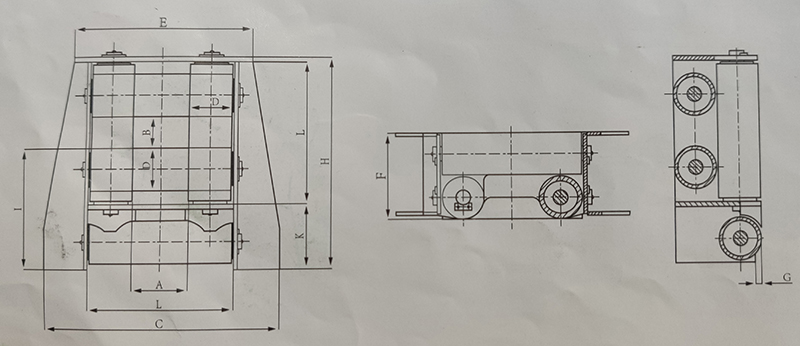

Type	Wire Φ	A	B	C	D	E	F	G	H	I	K	L	Weight （kg)
CFG2	12	180	100	650	80	446	170	10	165	253	125	356	90
CFG3	16	230	130	800	100	546	210	10	575	308	150	446	160
CFG5	20	250	130	900	120	626	250	15	655	363	175	506	280
CFG8	24	280	160	1000	140	716	290	20	730	423	215	576	394
CFG12	32	300	160	1200	180	836	366	25	855	518	260	676	860
CFG20	40	320	180	1350	245	1030	500	35	1045	660	335	830	1500
CFG32	48	400	250	1700	300	1236	610	45	1260	788	405	1016	2550
