MARINE FAIRLEAD

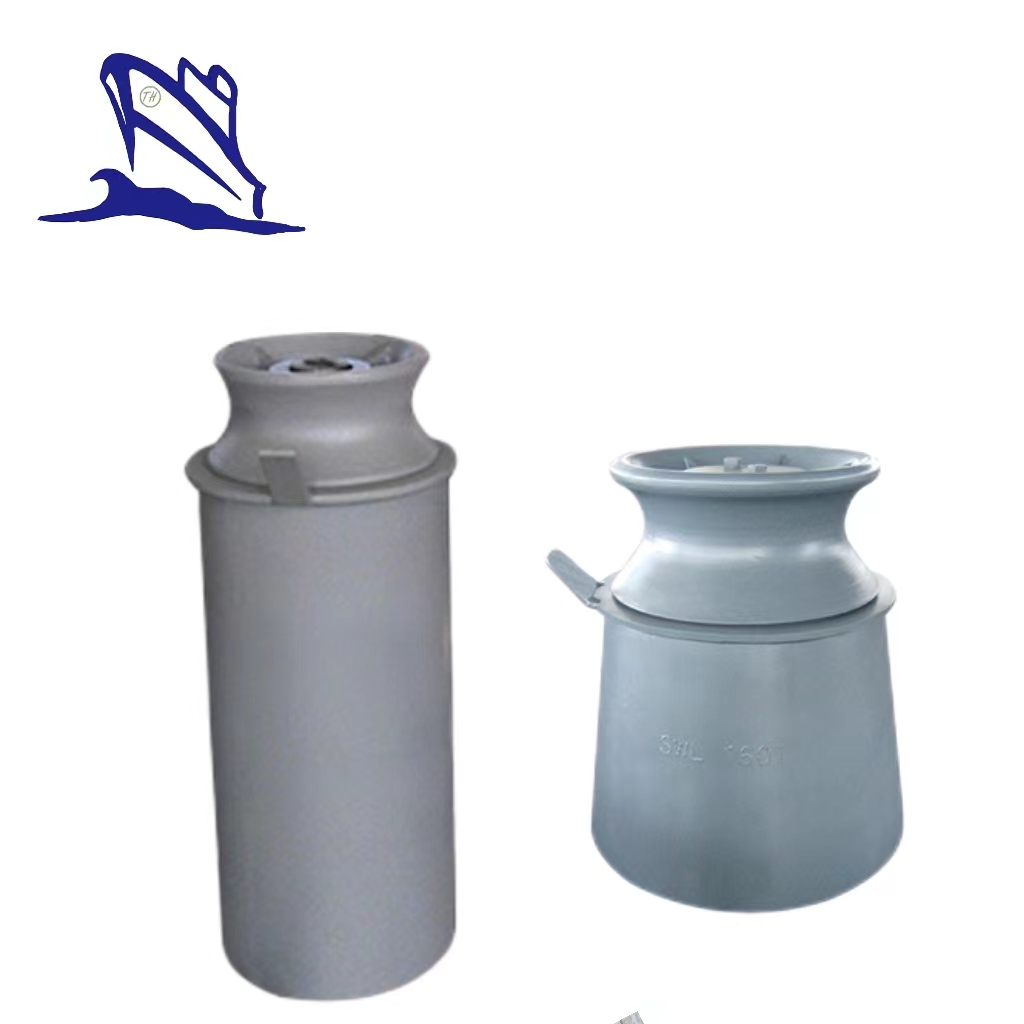

DIN 81907 Warping Roller Fairlead with Pedestal

Description:

DIN 81907 warping roller fairlead with pedestal has two types: DIN 81907 type A with cylindrical pedestal and type B with conical pedestal. DIN 81907 pedestal fairlead is installed on the deck which used to guide the mooring ropes. DIN 81907 fairlead is produced following the German standard. The roller is flexible to guide ropes. The surface of both the roller and the pedestal are allowed to be smooth without any defects.

Features:

Model Type: Warping Roller Fairlead with Pedestal;

Material: Cast Steel and Steel Plate;

Standard: DIN 81907.

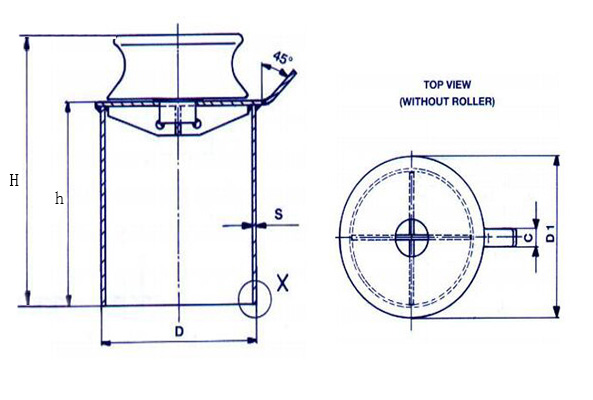

Parameters of DIN 81907 Warping Roller Fairlead with Pedestal Type A:

Type	H	TUBE(DxS)	Weight (kg)
3	200	355.6X12.56	68
3	400	355.6X12.56	89
3	600	355.6X12.56	111
3	800	355.6X12.56	132
5	200	457.2X12.5	117
5	400	457.2X12.5	144
5	600	457.2X12.5	172
5	800	457.2X12.5	199
8	200	558.8X12.5	209
8	400	558.8X12.5	242
8	600	558.8X12.5	276
8	800	558.8X12.5	310
12	200	660.4X14.2	325
12	400	660.4X14.2	370
12	600	660.4X14.2	415
12	800	660.4X14.2	460
20	200	660.4X17.5	460
20	400	660.4X17.5	516
20	600	660.4X17.5	571
32	200	812.8X16	748
32	400	812.8X16	810
32	600	812.8X16	873

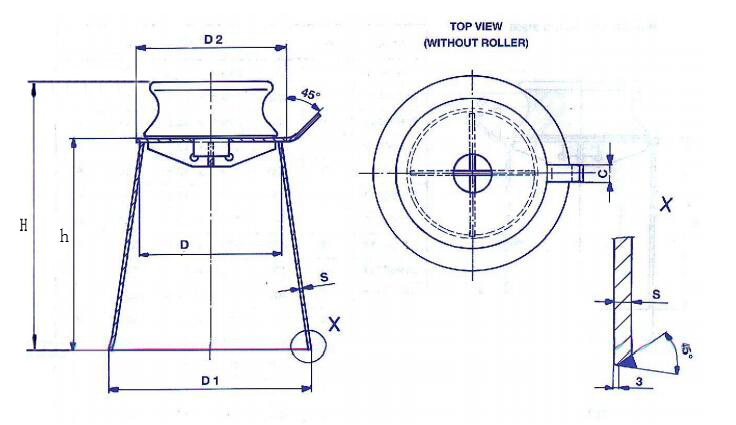

Parameters of DIN 81907 Warping Roller Fairlead with Pedestal Type B:

Type	H	D	D1	S	D2	C	Weight (kg)
8	1000	550	815	15	575	80	426
12	1000	630	895	15	655	80	568
12	1200	630	945	15	655	80	638
20	800	660	870	15	685	1000	629
20	1000	660	925	15	685	1000	695
20	1200	660	975	15	685	1000	764
20	1400	660	1025	15	685	1000	838
32	800	800	1010	15	825	1000	953
32	1000	800	1065	15	825	1000	1030
32	1200	800	1115	15	825	1000	1110
32	1400	800	1165	15	825	1000	1196
