JIS F2014-1987 Closed Roller Fairlead Type DF DS
Description:

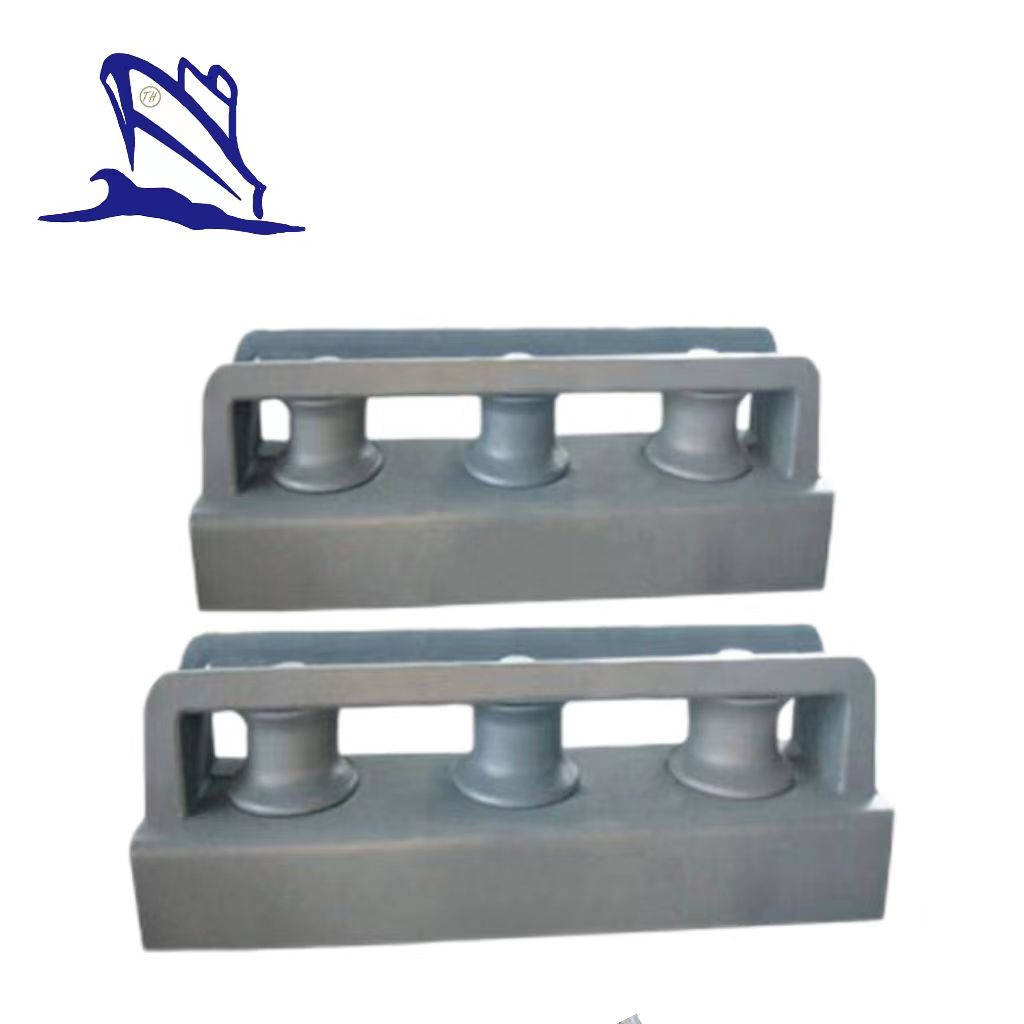

JIS F2014-1987 closed roller fairlead type DF DS is also called closed three rollers fairlead. The fairlead is installed on the ship's deck and leads the rope's direction. Besides, this product are certified by IACS. And we can produce regular fairleads for your requirement. If you are interested in our products, please contact us.
Parameters of JIS F2014-1987 Closed Roller Fairlead Type DF DS:
Type | Nominal Dia. (mm) | D (mm) | L (mm) | L (mm) | l2 (mm) |
DF&DS | 150 | 150 | 1440 | 420 | 300 |
200 | 200 | 1720 | 530 | 330 | |
250 | 250 | 2070 | 640 | 395 | |
300 | 300 | 2360 | 750 | 430 | |
350 | 350 | 2750 | 860 | 515 | |
400 | 400 | 3070 | 970 | 565 | |
DS | 450 | 450 | 3440 | 1080 | 640 |
Features:
Model Type: Closed Roller Fairlead;
Material: Cast Steel and Steel Plate;
Nominal Dia.: 150mm-450mm;
Roller Qty.: 3;
Standard: JIS F2014-1987.
