MARINE FAIRLEAD

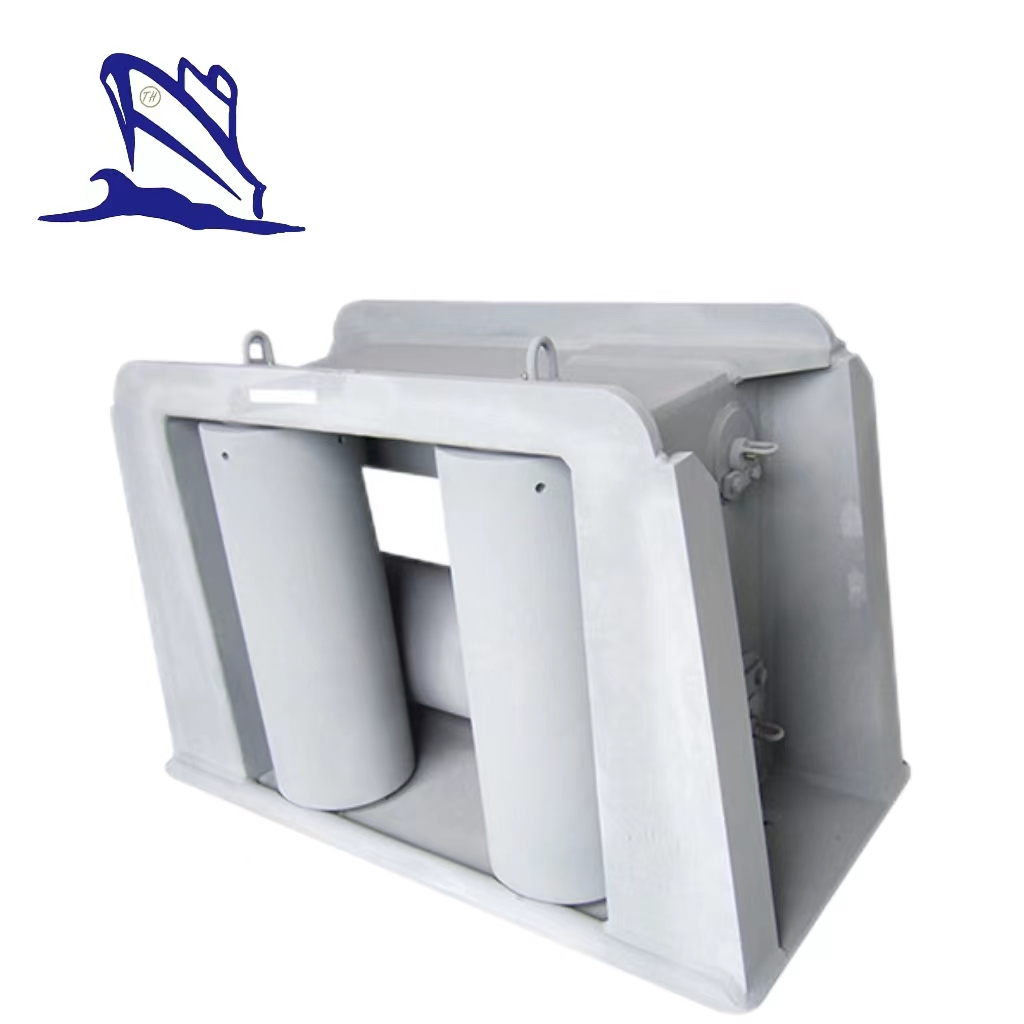

JIS F2026-80 Four Rollers Fairlead Type A

Application:

JIS F2026-80 roller fairlead is produced strictly according to the Japanese standard JIS F2026-80. It has two types: type A(with four rollers); type BR(with five rollers). They can perfectly guide the direction of ropes and protect them. Our all products are approved by IACS certificate,so we assure that we can provide you products with high quality and fair price. For more information, please contact us.

Features:

Model Type: Four Rollers Fairlead;

Material: Cast Steel and Steel Plate;

Roller Qty.: 4;

Nominal Dia.: 140mm-315mm;

Standard: JIS F2026-80.

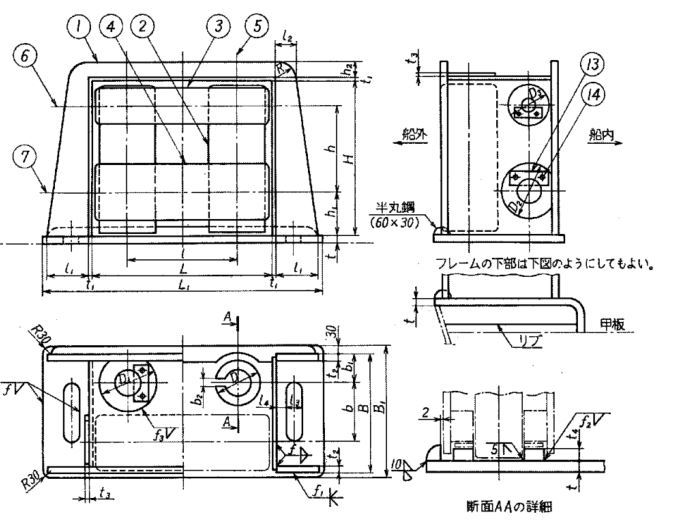

Parameters of JIS F2026-80 Four Rollers Fairlead type A:

Form 1-1:

Nominal Dia.	Frame
Nominal Dia.	B	B1	b	b1	b2	D	D1	D2	D3	H	h	h1	h2	L	L1	l	l1	l2
140	310	355	150	69	20	90	140	120	80	480	275	130	40	515	805	335	120	60
160	360	405	175	82	22	110	160	140	90	515	290	145	45	570	890	365	135	65
180	410	455	200	95	24	135	180	150	100	560	315	155	50	620	960	390	145	70
200	460	505	225	108	26	160	200	160	110	590	330	170	60	675	1049	420	160	80
250	565	610	280	133	30	200	250	200	130	715	415	195	75	825	1303	520	210	105
315	670	715	330	159	34	240	300	240	160	870	520	220	90	980	1562	620	260	130

Form 1-2:

Nominal Dia.	Frame								Applicable Wire Rope dia.	Opening Dia (long x wide)	Weight (kg)
Nominal Dia.	l3	l4	R	t	t1	t2	t3	t4	Applicable Wire Rope dia.	Opening Dia (long x wide)	Weight (kg)
140	50	20	40	12	10	16	6	20	18	148x195	187
160	50	20	45	14	10	18	8	22	22.4	150x200	277
180	50	20	50	16	10	20	10	24	25	150x199	387
200	50	20	60	18	12	22	10	26	28	152x204	510
250	60	25	75	20	14	26	12	30	35.5	199x253	900
315	60	25	90	22	16	30	14	34	42.5	253x302	1230
