MARINE FAIRLEAD

JIS F2026-80 Five Rollers Fairlead Type BR

Description:

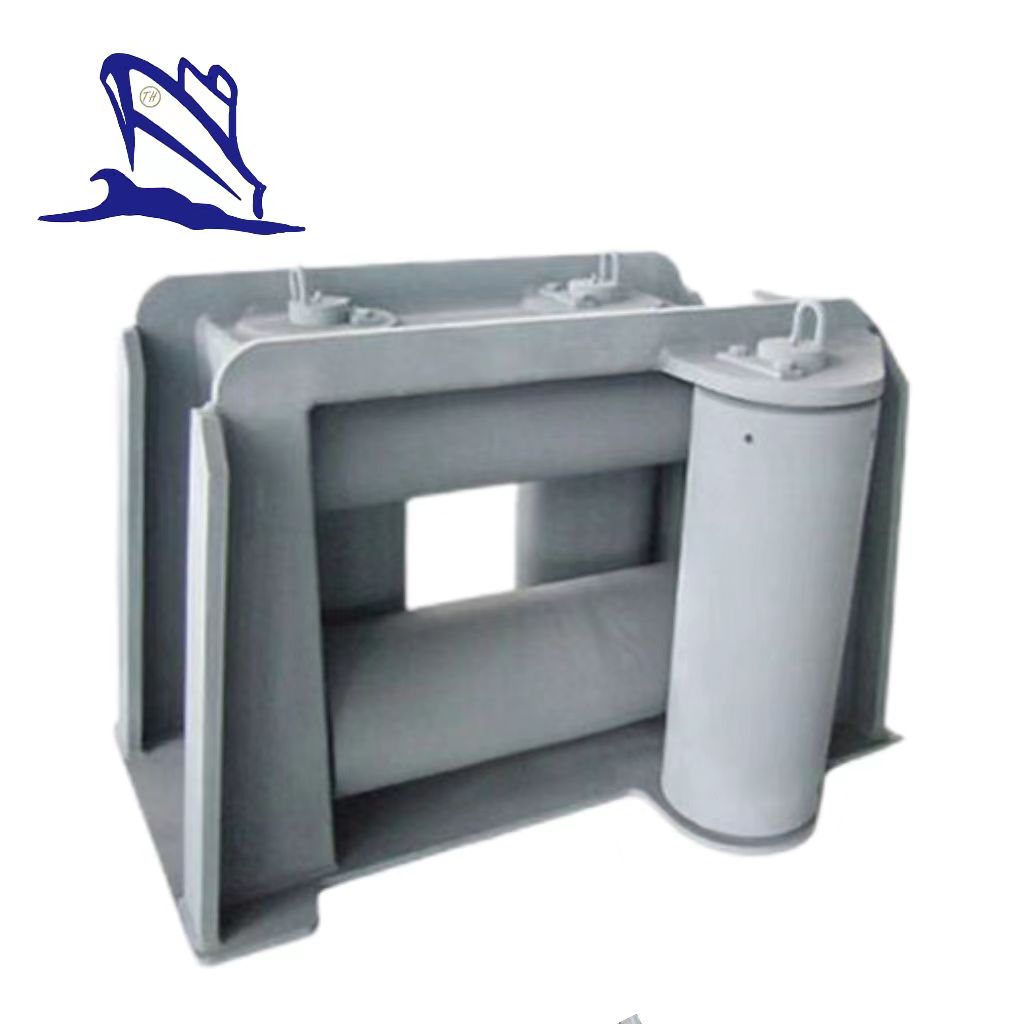

JIS F2026-80 five rollers fairlead type BR is followed the Japanese standard JIS F2026-80. It is used to guiding the mooring ropes. The weight of five rollers ranges from 235kg to 2050kg and the diameter of this fairlead is from 140mm to 315mm with SWL mark. If you are interested in our products, please contact us.

Features:

Model Type: Five Rollers Fairlead;

Material: Cast Steel and Steel Plate;

Roller Qty.: 5;

Nominal Dia.: 140mm-315mm;

Standard: JIS F2026-80.

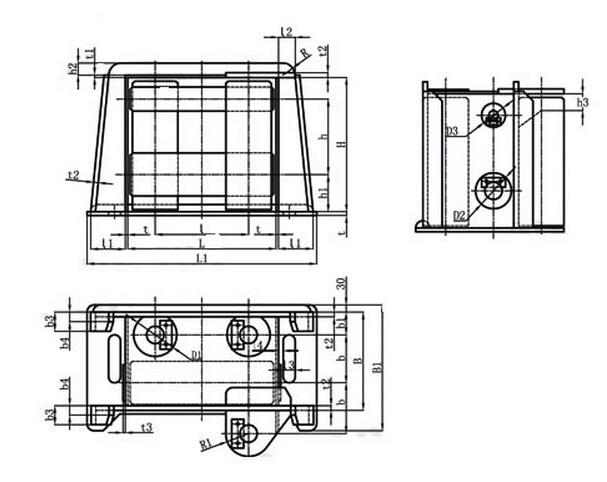

Parameters of JIS F2026-80 Five Rollers Fairlead Type BR:

Form 1-1:

Nominal Dia.	Frame
Nominal Dia.	B	B1	b	b1	b2	b3	b4	D	D1	D2	D3	H	h	h1	h2	h3	L	L1
140	310	390	150	69	20	45	25	90	140	120	80	480	275	130	40	50	515	805
160	360	460	175	82	22	65	35	110	160	140	90	515	290	145	45	60	570	890
180	410	525	200	95	24	80	40	135	180	150	100	560	315	155	50	70	620	960
200	460	583	225	108	26	90	45	160	200	160	110	590	330	170	60	80	675	1049
250	565	701	280	133	30	105	55	200	250	200	130	715	415	195	75	90	825	1303
315	670	824	330	159	34	125	65	240	300	240	160	870	520	220	90	100	980	1562

Form 1-2:

Nominal Dia.	Frame												Leg of weld				Weight (kg)
Nominal Dia.	l	l1	l2	l3	l4	R	R1	t	t1	t2	t3	t4	f	f1	f2	f3	Weight (kg)
140	335	120	60	50	20	40	70	12	10	16	6	20	9	6	12	4	235
160	365	135	65	50	20	45	85	14	10	18	8	22	9	7	12	6	353
180	390	145	70	50	20	50	95	16	10	20	10	24	9	9	12	8	496
200	420	160	80	50	20	60	110	18	12	22	10	26	10	10	14	8	648
250	520	210	105	60	25	75	135	20	14	26	12	30	10	12	14	10	1176
315	620	260	130	60	25	90	160	22	16	30	14	34	12	14	16	10	2050
