MARINE FAIRLEAD

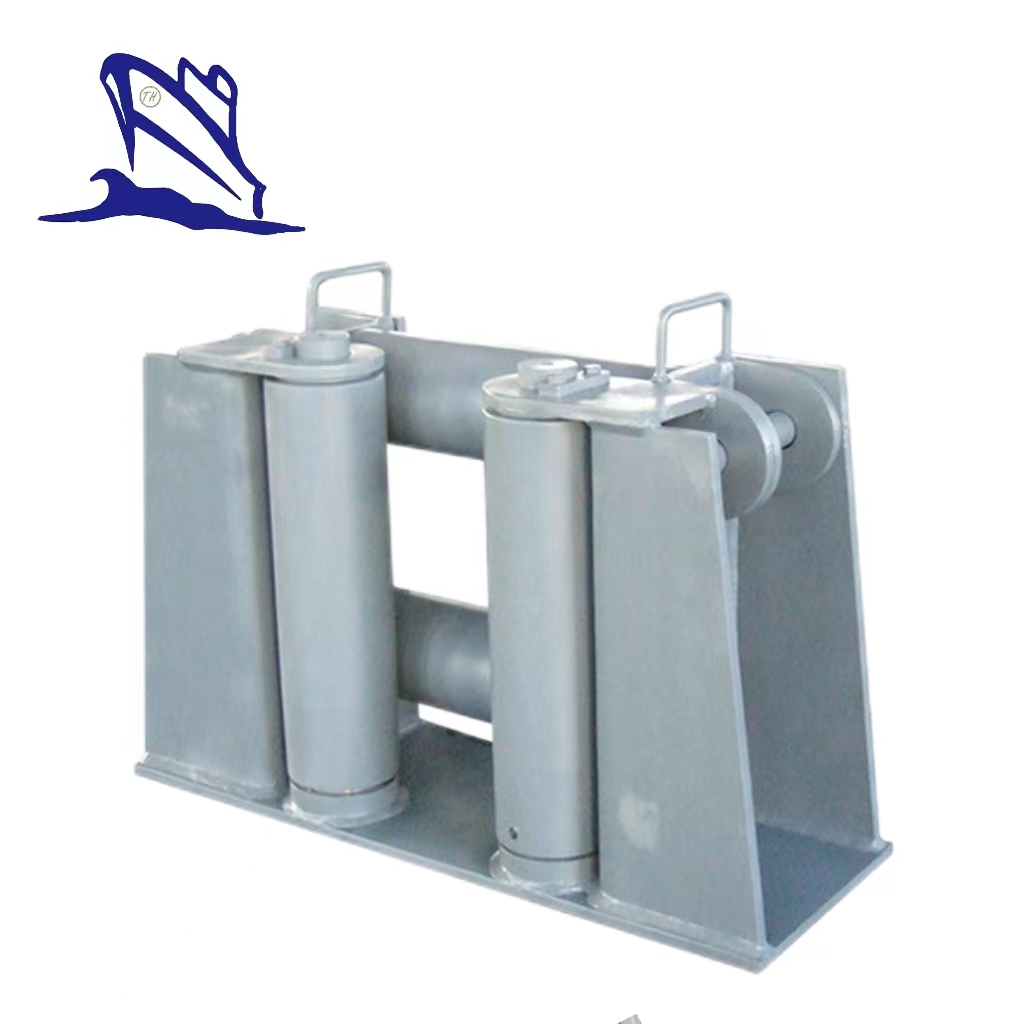

CB 3062-79 Four Rollers Fairlead Type BA

Application:

The total number of rollers ranges from 3 to 9. Strictly according to the standard CB 3062-79, type BA are produced by factory. The surface may not have any defects which affects its performance and intensity. If Knowing more details about this product you can immediately contact us.

Features:

Model Type: Four Rollers Fairlead;

Material: Cast Steel or Steel Plate;

Roller Qty.: 4;

Steel Wire Dia.: 19.5mm-43mm;

Nylon Rope Dia.: 36mm-95mm;

Standard: CB 3062-79.

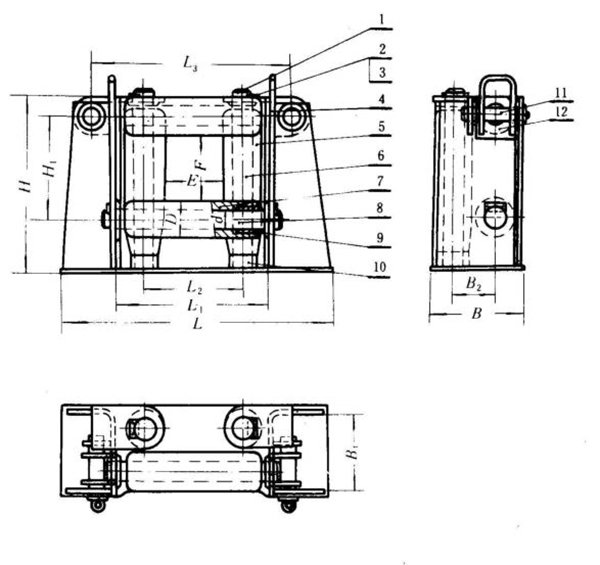

rs of CB 3062-79 Four Rollers Fairlead Type BA:

Steel Wire Dia.	Nylon Wire Dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	194	100	40-0.5	744	416	300	544	238	194	108	508	294	173
22.5	40	200	196	120	50-0.5	848	456	320	608	280	232	128	552	316	264
26	45	200	228	130	55-0.5	906	480	330	646	304	250	138	606	358	337
32	70	220	230	150	65-0.5	1030	540	370	730	346	288	158	670	380	485
34.5	80	240	250	160	70-0.5	1100	580	400	780	370	308	168	710	410	583
37.5	85	240	265	180	80-0.5	1210	620	420	850	417	345	190	7780	445	823
43	95	260	275	200	90-0.5	1336	686	460	936	459	385	210	820	475	1064
