MARINE FAIRLEAD

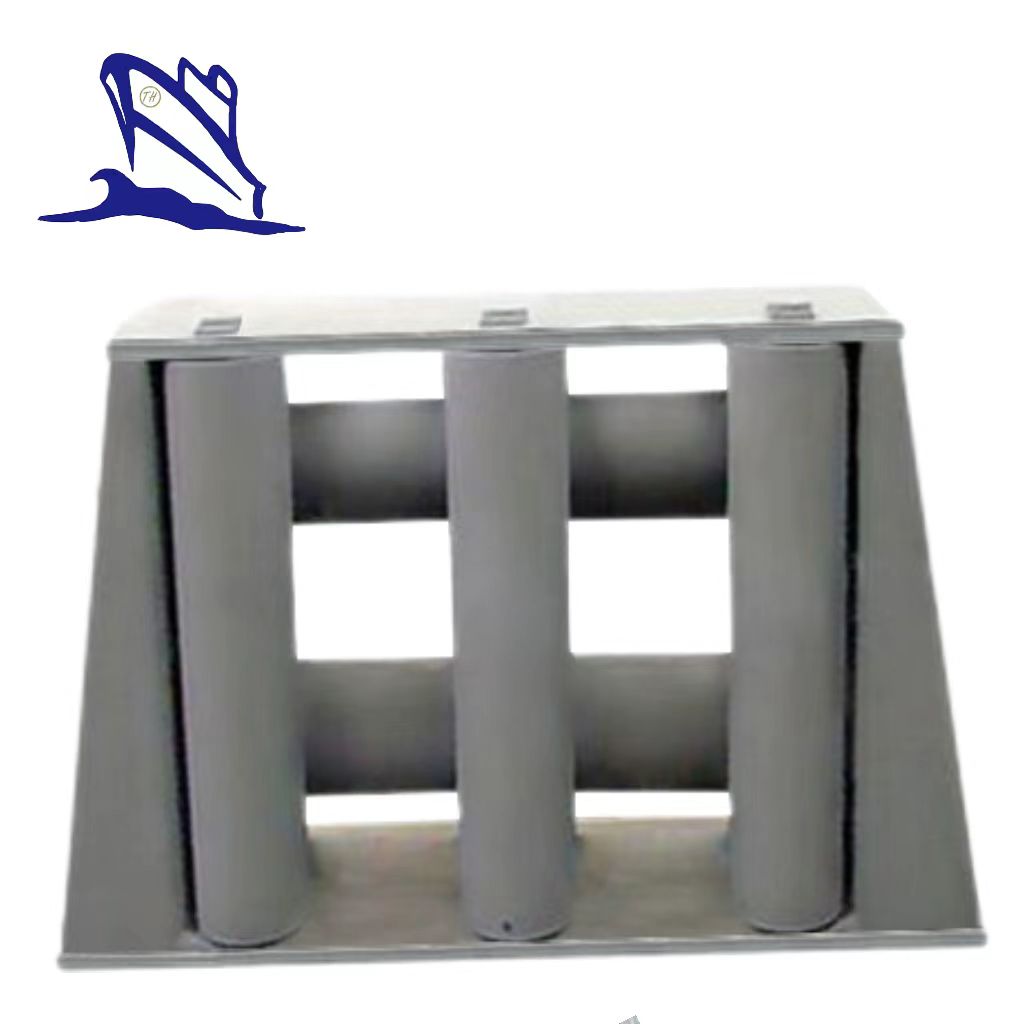

CB 3062-79 Seven Rollers Fairlead Type D

Description:

The type D fairlead also can be called seven rollers fairlead. And It is produced strictly according to the standard CB 3062-79. The surface of the rollers do not have any cracks or blisters. Besides, this fairlead can lead the directions of different ropes. We are able to provide fairleads with quality certificates. For more information, please contact us.

Features:

Model Type: Seven Rollers Fairlead;

Material: Cast Steel and Steel Plate;

Roller Qty.: 7;

Steel Wire Dia.: 19.5mm-68mm;

Nylon Rope Dia.: 36mm-100mm;

Standard: CB 3062-79.

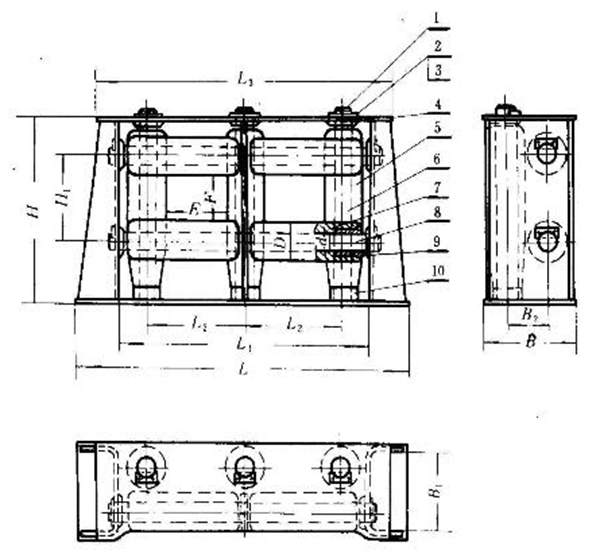

Parameters of CB 3062-79 Seven Rollers Fairlead Type D:

Steel Wire Dia.	Nylon Wire Dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	150	100	40-0.5	944	716	300	844	238	194	108	508	250	247
22.5	40	200	150	120	50-0.5	1048	776	320	928	280	232	128	552	270	377
26	45	200	180	130	55-0.5	1106	810	330	976	304	250	138	606	310	485
32	70	220	180	150	65-0.5	1250	910	370	1100	346	288	158	670	330	716
34.5	80	240	200	160	70-0.5	1340	980	400	1180	370	308	168	710	360	849
37.5	85	240	200	180	80-0.5	1450	1040	420	1270	417	345	190	7780	380	951
43	95	260	210	200	90-0.5	1596	1146	460	1396	459	385	210	820	410	1546
52	100	260	220	230	100-0.5	1746	1236	490	1516	521	445	240	910	450	2143
60.5	-	300	240	260	120-0.5	1990	1410	560	1730	590	500	270	1000	500	3134
68	-	320	250	320	150-0.5	2330	1630	640	2010	714	620	330	1130	570	5100
