MARINE FAIRLEAD

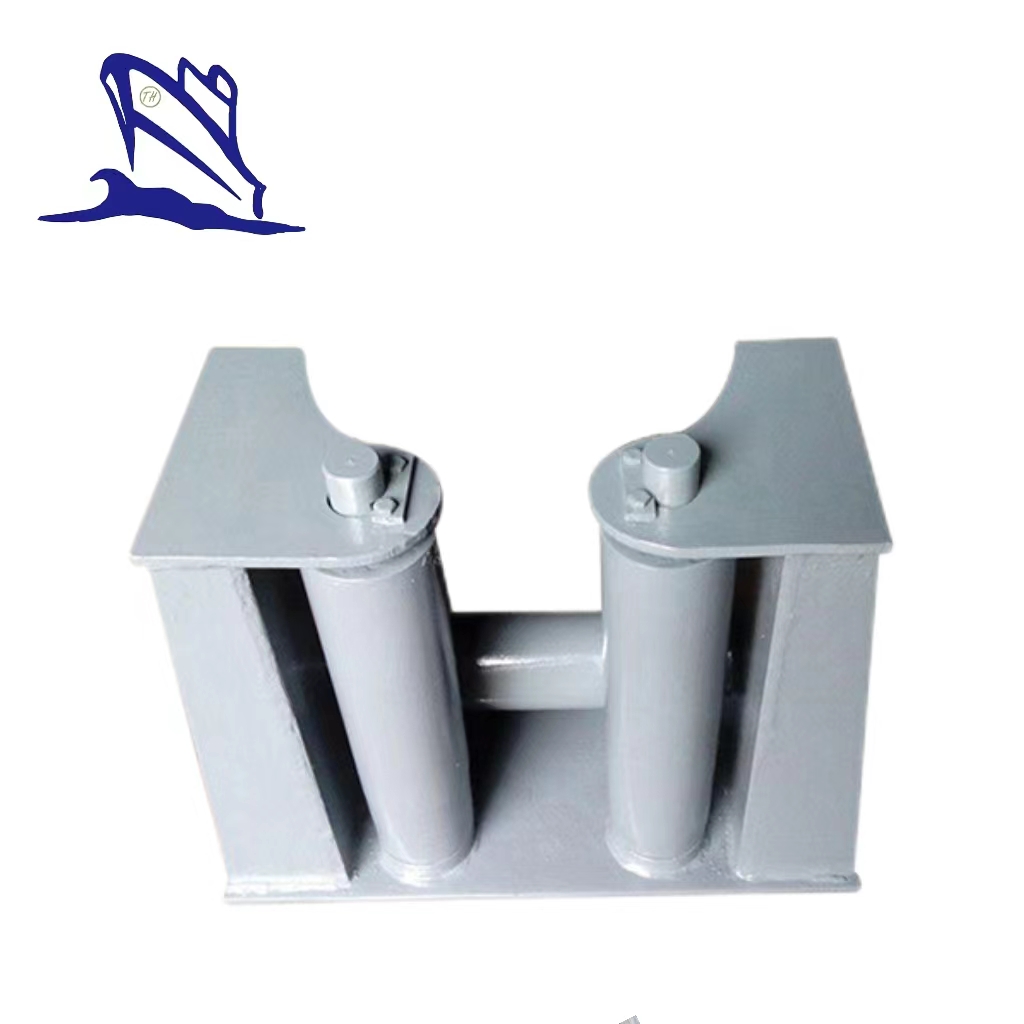

CB 3062-79 Three Rollers Fairlead Type A

Description:

The total number of rollers ranges from 3 to 9. The type A is also named three rollers fairlead. It is produced according to the standard CB 3062-79. The surface of the rollers shouldn’t have any cracks or blisters. This kind of fairlead is certified by CB 3062-79. For more information, please feel free to contact us.

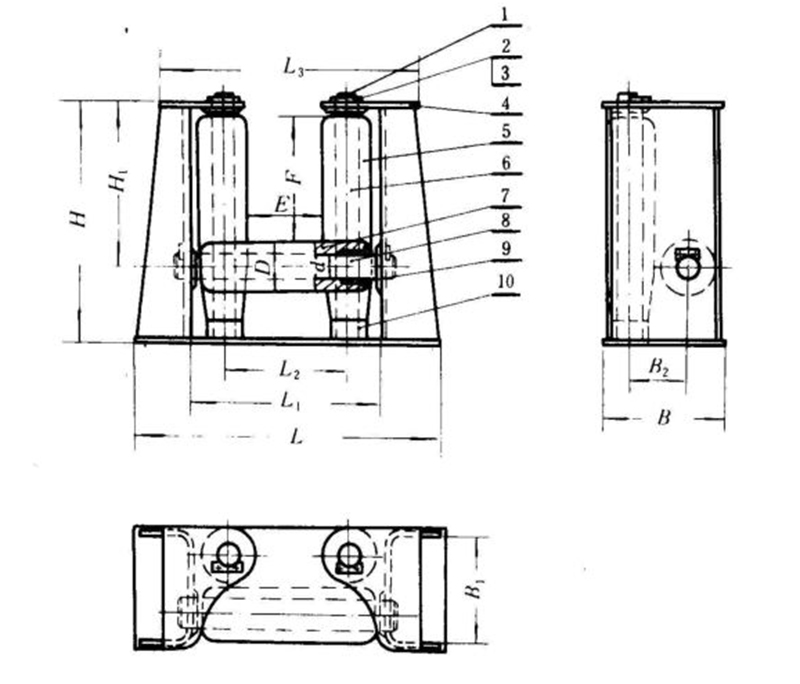

Parameters of CB 3062-79 Three Rollers Fairlead Type A:

Steel Wire Dia.	Nylon Wire Dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight (kg)
19.5	36	200	257	100	40-0.5	644	416	300	544	238	194	108	508	330	138
22.5	40	200	275	120	50-0.5	728	456	320	608	280	232	128	552	360	212
26	45	200	311	130	55-0.5	776	480	330	646	304	250	138	606	405	273
32	70	220	328	150	65-0.5	880	540	370	730	346	288	158	670	435	401
34.5	80	240	358	160	70-0.5	940	580	400	780	370	308	168	710	470	469
37.5	85	240	383	180	80-0.5	1030	620	420	850	417	345	190	7780	510	678
43	95	260	411	200	90-0.5	1136	686	460	936	459	385	210	820	550	866
52	100	260	450	230	100-0.5	1256	746	490	1026	521	445	240	910	605	1197
60.5	100	300	493	260	120-0.5	1430	850	560	1170	590	500	270	1000	670	1741
68	100	320	563	320	150-0.5	1690	990	640	1370	714	620	330	1130	770	2811

Features:

Model Type: Three Rollers Fairlead;

Material: Cast Steel or Customized;

Roller Qty.: 3;

Steel Wire Dia.: 19.5mm-68mm;

Nylon Rope Diameter: 36mm-100mm;

Standard: CB 3062-79.
