MARINE FAIRLEAD

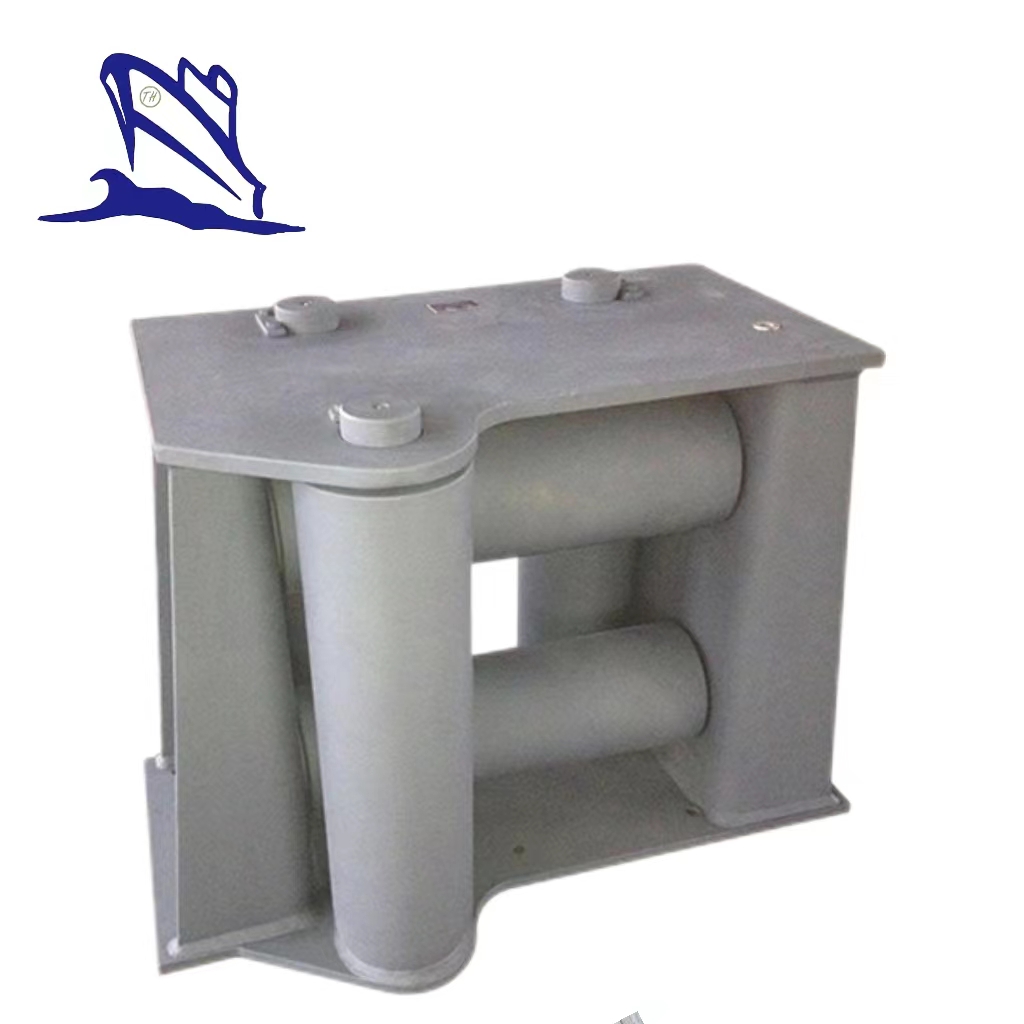

CB T3062-2011 Five Rollers Fairlead Type C



Description:

The type C fairlead can also called five rollers fairlead. It is strictly produced according to the standard CB/T 3062-2011. The nominal diameter of this fairlead roller can range from 100 mm to 320 mm, and the safety working load also ranges from 54kn to 533 kn. If you have more questions about this product, please contact us immediately.

Features:

Model Type: Five Rollers Fairlead;

Material: Cast Steel and Steel Plate;

Roller Qty.: 5;

Steel Wire Dia.: 14mm-44mm;

Nylon Rope Dia.: 36mm-100mm;

Standard: CB/T 3062-2011.

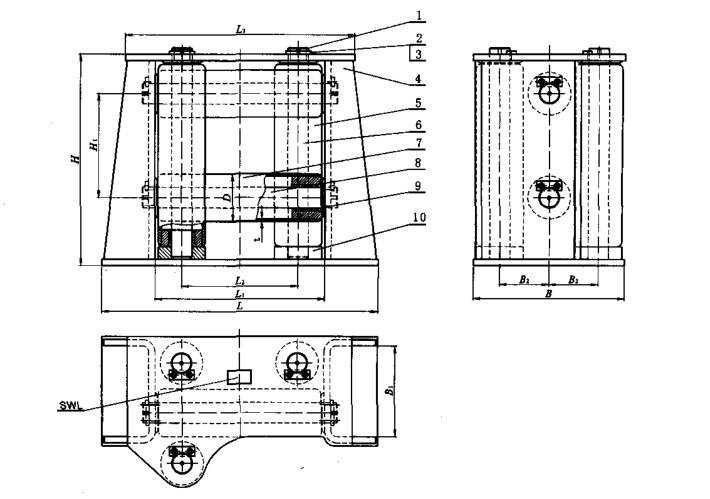

Parameters of CB/T 3062-2011 Five Rollers Fairlead Type C:

Nominal Dia.Steel Wire Dia.

Nylon

Rope

Dia.

SWL KNBB1B2DHH1LL1L2L3tWeight (kg)
10014365432419410810250825064441630054410139
12016407038423212812155227072845632060812209
14018458941525013814060631077648033064614284
150207011047528815815267033088054037073016410
160228013350730816816871036094058040078018541
1802685186571345190194770380103062042085020723
2002895216632385210219820410113668646093622931
2303210028272344524024591045012567464901026251253
26036100357815500270273100050014308505601170281852
32044100533997620330325113057016909906401370302877
