Single Roller Fairlead
Description:
It is used for guiding mooring ropes which is installed on the deck of ship. The single roller fairlead is used to guide ropes passing and to prevent chafing from bulwark or deck, together with mooring winch and roller chock. It is only installed on deck, which is different from multi-roller fairlead installed on bulwark. There are two types: Type A and Type B follows the standard DIN 81907 and CB/T436-2000. For more details please contact us.
Features:
Model Type: Single roller fairlead;
Material: Cast Steel and Steel Plate;
Standard: CB/T 436-2000.

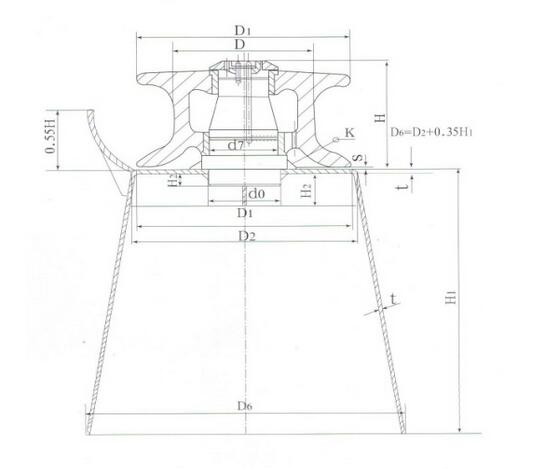

Parameters of single roller fairelead CB/T 436-2000 type B:
D (mm) | Max Cable Diameter (mm) | Dimensions(mm) | Roller Weight (kg) | Basement Weight (kg) H1=100 | ||||||||||||||
| Cable Tensile Strength 1550N/mm2 | Hemp Rope | Synthetic Fiber Rope | D0 | D1 | D2 | D7 | H | H1 | H2 | H3 | S | t | K | |||||
| 6x24 | 6x30 | 6x37 | ||||||||||||||||
| 150 | 17 | 17.5 | 15 | 45 | 32 | 90 | 240 | 270 | 79 | 154 | As Required | 40 | 75 | 5 | 12 | 9 | 24.8 | 129 |
| 200 | 22.5 | 21.5 | 19.5 | 55 | 40 | 115 | 310 | 340 | 99 | 186 | 50 | 85 | 5 | 14 | 10 | 49.3 | 178 | |
| 250 | 24 | 26 | 24 | 65 | 45 | 135 | 380 | 410 | 119 | 230 | 60 | 100 | 6 | 14 | 10 | 92 | 207 | |
| 300 | 30 | 32.5 | 28 | 70 | 50 | 155 | 440 | 470 | 129 | 255 | 60 | 100 | 7 | 16 | 12 | 127 | 265 | |
| 350 | 37.5 | 39 | 34.5 | 75 | 55 | 175 | 500 | 530 | 149 | 271 | 65 | 100 | 7 | 18 | 13 | 168 | 332 | |
| 400 | 41 | 39 | 39 | 85 | 65 | 185 | 560 | 590 | 159 | 307 | 70 | 100 | 7 | 20 | 14 | 252.5 | 401 | |
| 450 | 44.5 | - | 43 | - | 80 | 210 | 630 | 670 | 179 | 316 | 80 | 120 | 7 | 20 | 14 | 310 | 452 | |
