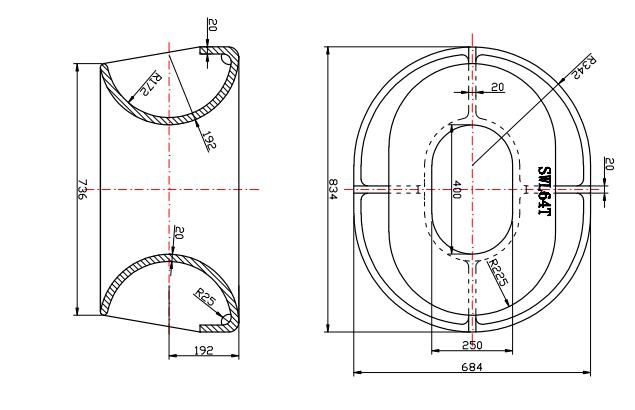

SWL64T Bulwark Mounted Chock
Description:
Bulwark mounted chock is a kind of closed chock, installed on the bulwark of vessel to limit the position of mooring ropes. The simple but highly effective design allows mooring ropes to pass through the chock to the bollard below whilst significantly reducing the abrasion on the mooring ropes, it can prolong the service life of mooring ropes. Cast from high quality steel, the chocks can be supplied with primed paint to protect it from harsh weather environments.
Other Types of Bulwark Mounted Chock:
Standard | Type of Bulwark Mounted Marine Chock | The Range of Nominal Size |
Type A, Type B | Type A: 10kN~320kN Type B: 10kN~80kN | |
Type A, Type B | Type A: 150mm~500mm Type B: 150mm~300mm | |
Type B | L x H x D: 250x200x214 ~ 500x400x525B | |
Type A, Type B | Type A: 400mm~800mm Type B: 400mm~800mm | |
Type BC, Type BP | Type BC: 310mm~500mm Type BP: 310mm~360mm | |
NS2589 Mooring Chock | a x b: 300mmx250mm, 400mmx250mm | |
Type A, Type AF, Type C | Type A: 150mm~550mm Type AF: 150mm~550mm Type C: 120mm~320mm | |
Bulwark Mounted Chock | A x B: 315mmx250mm, 425mmx280mm 600mmx315mm, 600mmx450mm | |
Type B | L: 310mm, 360mm | |
Type BP | L: 310mm, 360mm | |
Type BC | L: 310mm, 360mm, 400mm, 450mm, 500mm |
Features:
Model Type: Bulwark Mounted Chock;
Material: Cast Steel;
Standard: ISO13729 Type B;
Certificates: ABS, BV, CCS, DNV·GL, LR, NK, KR, RINA, etc..
