MARINE CHOCK

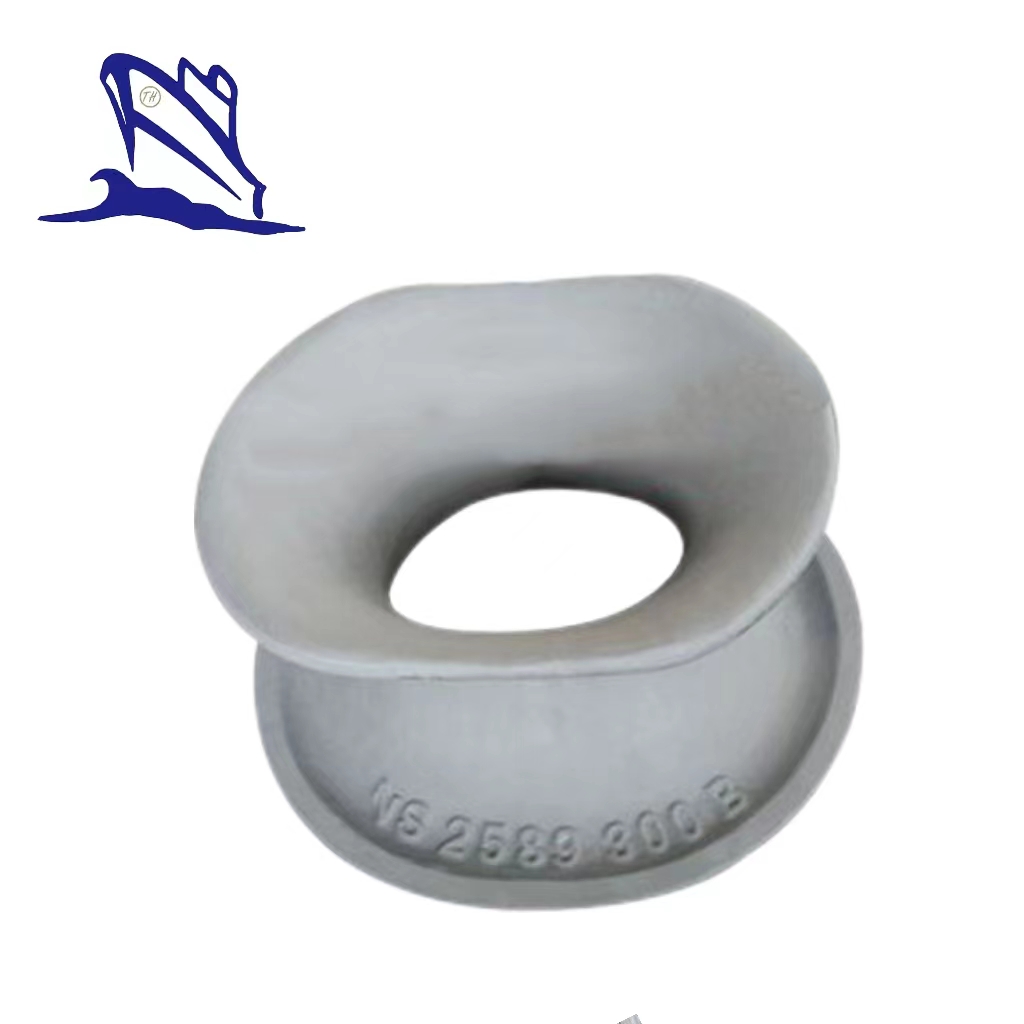

NS 2589 Mooring Chock



Description:

NS 2589 mooring chock is made up of cast steel. It’s surface is smooth with no burs or sharp edges. It helps reduce the friction between the mooring ropes and the hull. For this chock, it has two optional nominal dimensions. NS 2589 mooring chock follows the strict quality control system. If you are interested in our products, please feel free to contact us.

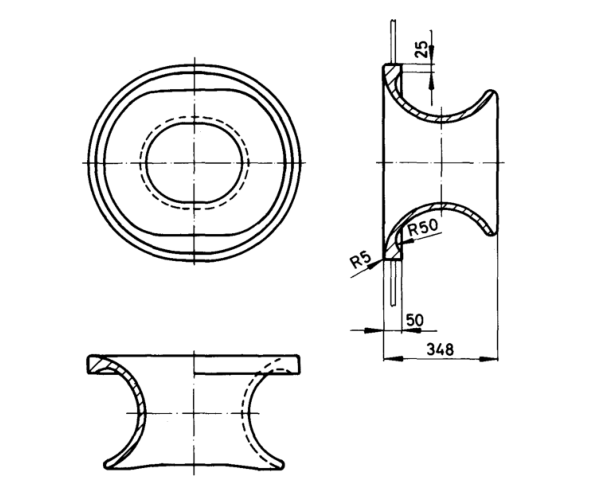

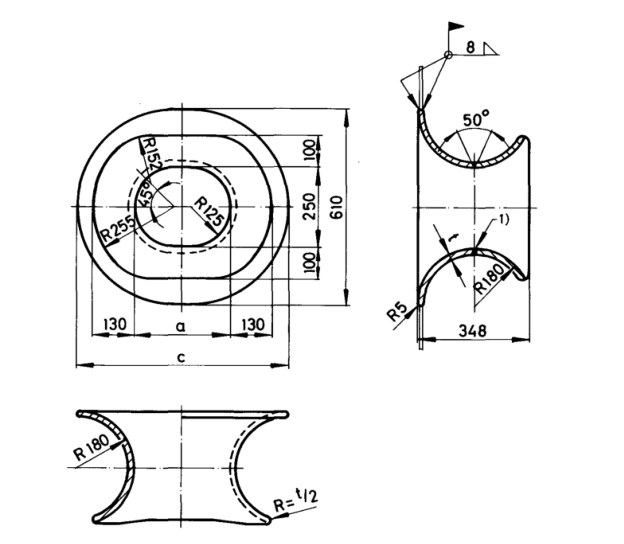

Parameters of NS 2589 Mooring Chock:

Nominal

Size

(mm)

a

(mm)

c

(mm)

t

(mm)

Type A

Weight

(kg)

Type B

Weight

(kg)

300x250

300

660

20

105

114

400x250

400

760

25

145

153

Features:

Model Type: NS 2589 mooring chock;

Material: Cast Steel;

Nominal Dimensions (mm): 300x250, 400x250;

Standard: NS 2589;

Certificates: CCS, ABS, BV, LR, RS, KR, etc..
