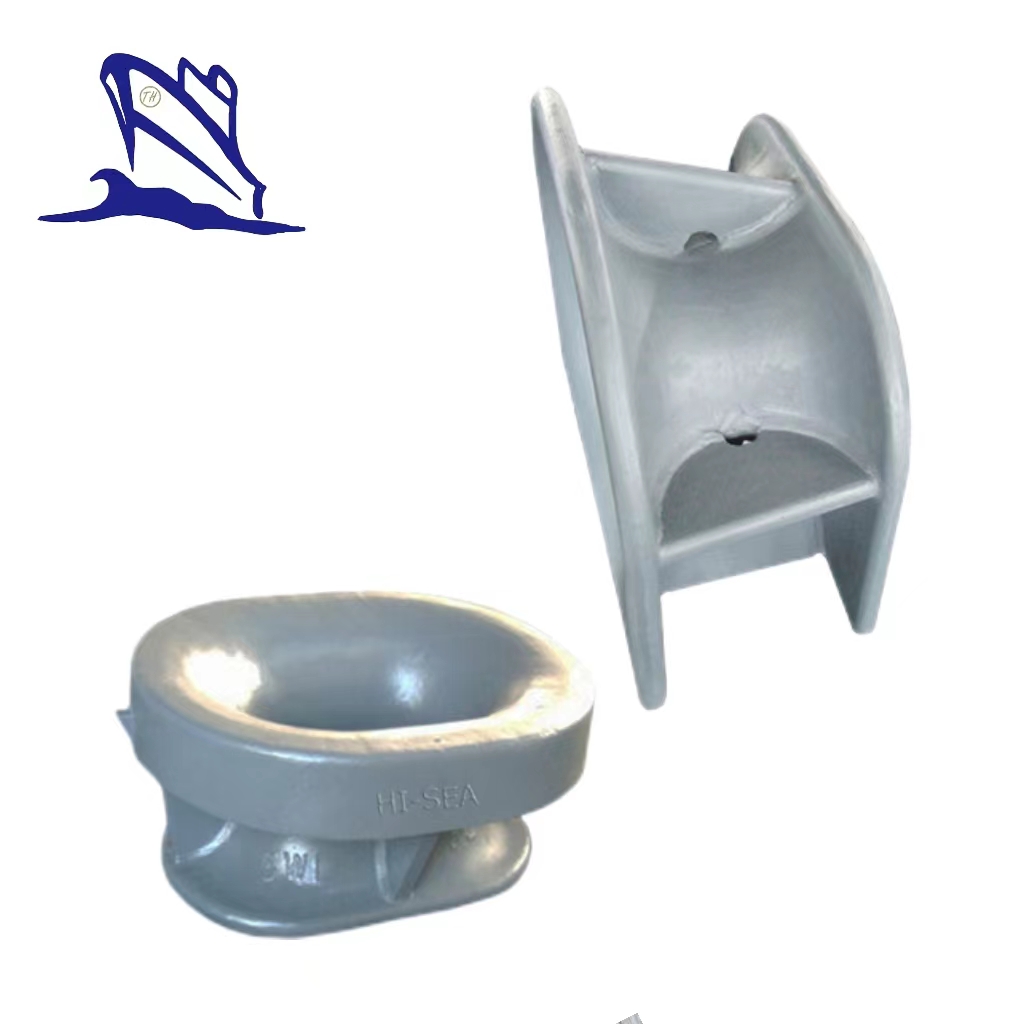

GB 11586-89 Panama Chock
Description:
Panama chock is called Panama bow, or Panama canal chock. GB 11586-89 Panama chock is divided into four types, Type AC, Type AP, Type BC and Type BP. This type of Panama chock is made based on Chinese standard, it is very similar with JIS F2017-82. For more information please browse our website and contact us at anytime you have question about our products.
Features:
Model Type: Panama Chock;
Material: Cast Steel;
Standard: GB 11586-89.

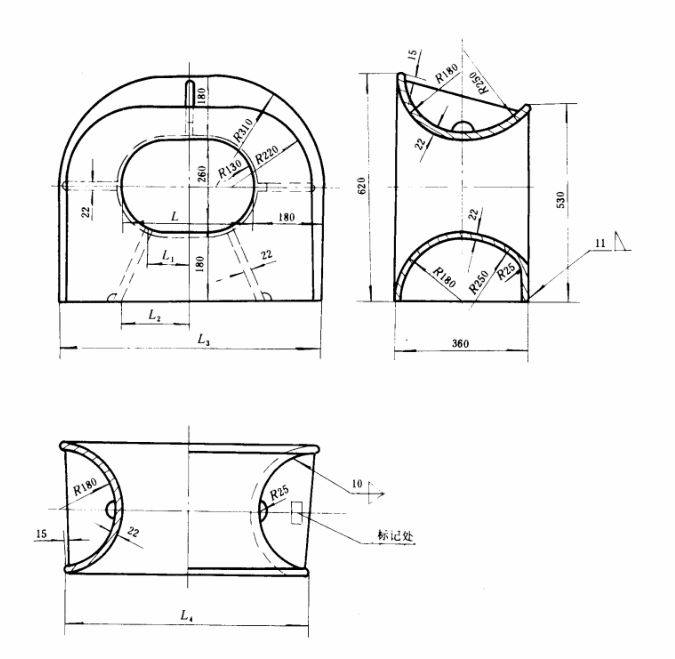

Parameter of GB11586-89 Panama Chock Type AC:
Nominal Size L (mm) | Unit:mm | Weight | |||||||||||||||
L1 | L2 | L3 | L4 | L5 | D | H1 | H2 | H3 | R1 | R2 | R3 | R4 | R5 | K | T | (kg) | |
310 | 199 | 105 | 310 | 708 | 652 | 38 | 639 | 541 | 199 | 329 | 231 | 140 | 142 | 195 | 15 | 32 | 253 |
360 | 200 | 130 | 360 | 760 | 704 | 40 | 640 | 542 | 200 | 330 | 232 | 138 | 140 | 192 | 15 | 34 | 289 |
400 | 202 | 150 | 400 | 804 | 750 | 44 | 642 | 545 | 202 | 332 | 235 | 134 | 136 | 185 | 20 | 36 | 323 |
450 | 203 | 175 | 450 | 856 | 802 | 46 | 643 | 547 | 203 | 333 | 237 | 132 | 134 | 182 | 20 | 38 | 351 |
500 | 204 | 200 | 500 | 908 | 854 | 48 | 644 | 549 | 204 | 334 | 239 | 130 | 132 | 180 | 20 | 40 | 395 |
Parameter of GB11586-89 Panama Chock Type AP:
Nominal size L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | Weight (kg) |
310 | 85 | 155 | 670 | 620 | 190 |
360 | 110 | 180 | 720 | 670 | 207 |
