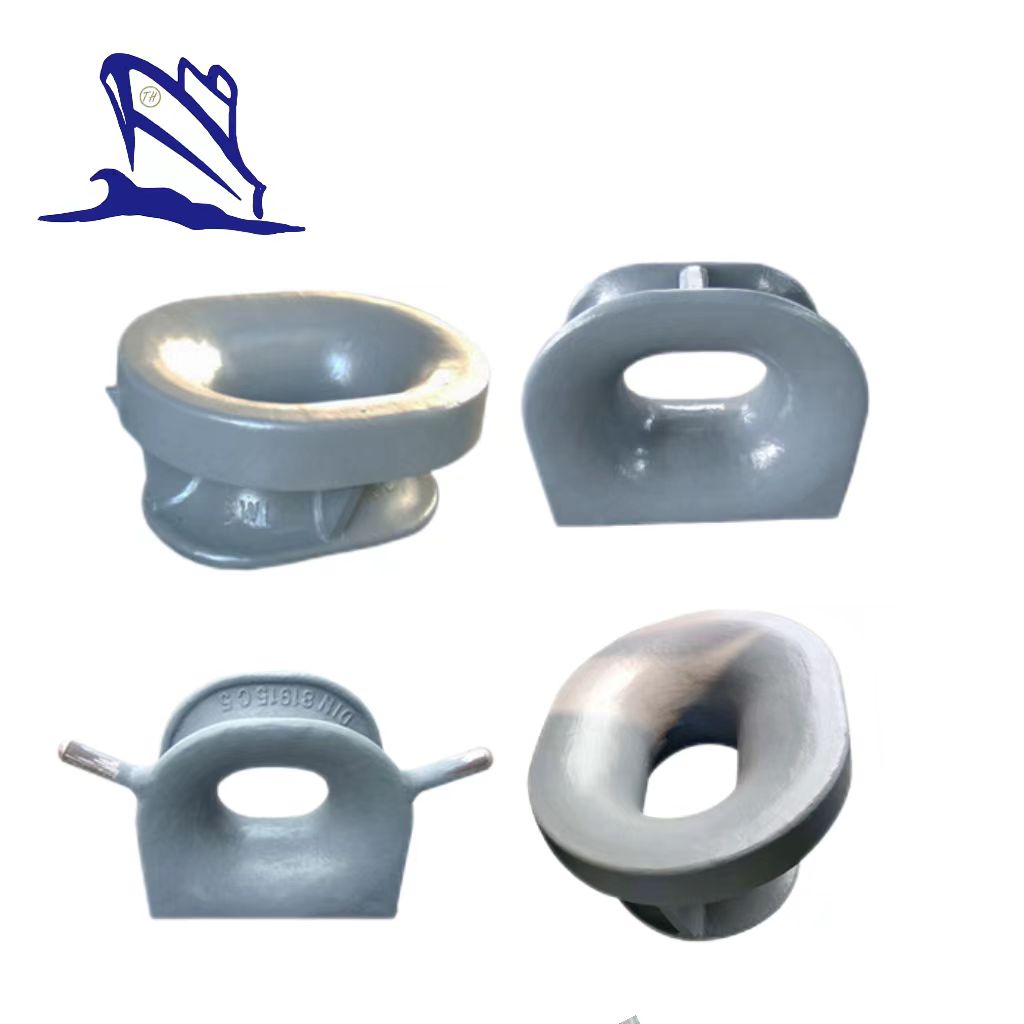

Closed Chock
Description:
Closed chock is made up of cast steel, commonly used to guide mooring ropes for vessels. For closed chock, the most popular types are ISO13729 chock and JIS F2005-75 chosk. We are not only supply closed chock, but open chock and special chock.
Features:
Type: Closed Chock;
Material: Cast Steel.
Main Standards of Closed Chock:
| Standard | Nominal Size |
| CB T34-2007 Mooring Chock | Type A and AF: 150~550mm, Type B and BF: 100~550mm, Type C: 120~320mm |
| DIN 81915 Chock | Type A: 1~32T, Type B: 1~8T, Type C: 20~32T, Type D: 1~8T, Type E: 8~20T |
| GB 11586-89 Panama Chock | Type AC:310~500mm, Type AP:310~360mm, Type BC:310~500mm, Type BP:310~360mm |
| ISO 13729-2012 Closed Chock | Type A and Type B: 250x200x214~500x400x525B |
| EU Type Deck Mounted Chock | 315x250mm~800x600mm |
| EU Type Bulwark Mounted Chock | 315x250mm~600x450mm |
| ISO13728 Panama Chock | Type A and Type B: 310mm, 360mm |
| JIS F 2005-1975 Closed Chock | L: 100mm~500mm |
| JIS F2017 Type AC Panama Chock | L: 310mm~500mm |
| JIS F2017 Type AP Panama Chock | L: 310mm, 360mm |
| JIS F2017 Type BC Panama Chock | L: 310mm~500mm |
| JIS F2017 Type BP Panama Chock | L: 310mm, 360mm |
| JIS F 2030-1978 Single Point Mooring Pipe | Type A and Type B: 400x300mm~800x600mm |
| JISF 2007-1976 Mooring Chock | Type A: 150x110mm~500x250mm Type B: 150~300mm |
| NS 2590 Mooring Chock | 300x250mm, 400x250mm |
| NS 2589 Mooring Chock | Type A and Type B: 300x250mm, 400x250mm |
| Panama Chock | ------ |
