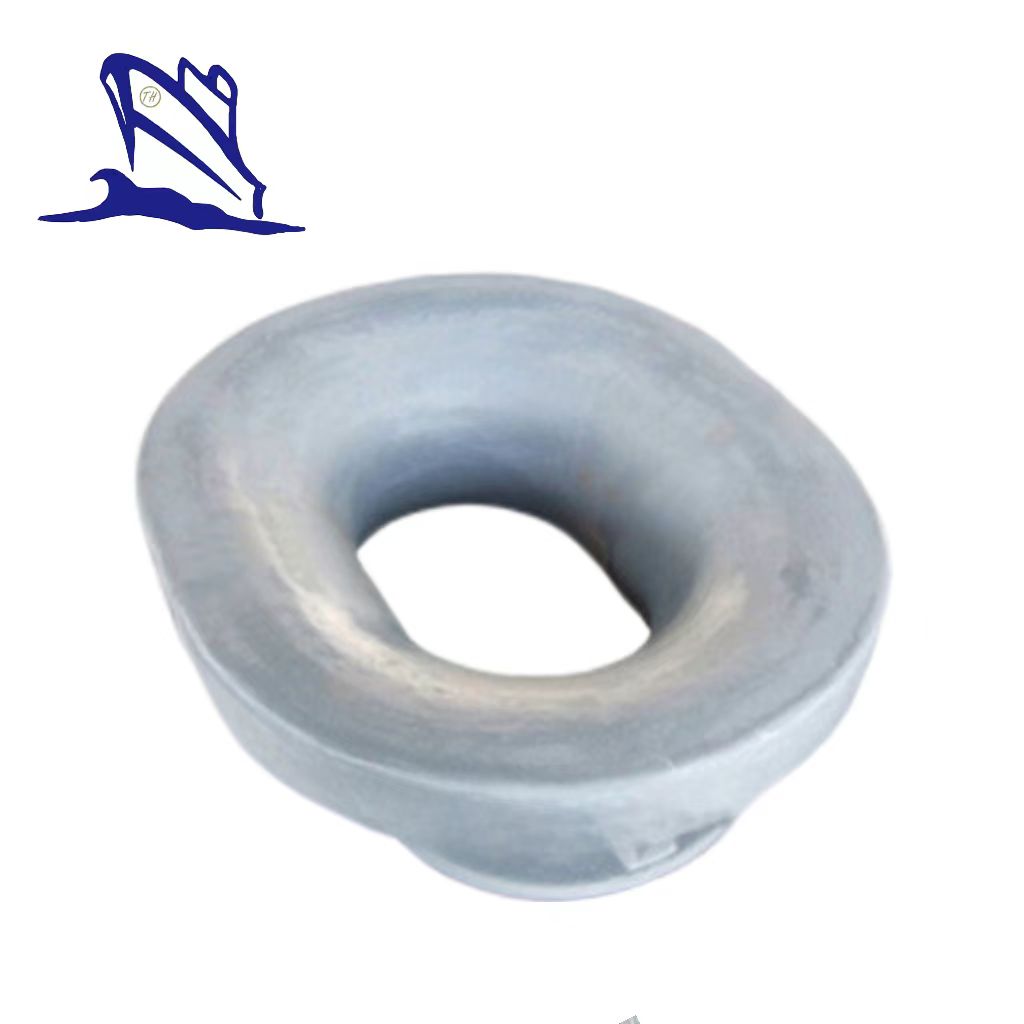

JIS F2007-1976 Mooring Chock
Description:
JIS F2007-1976 mooring chock is one type of the bulwark mounted chocks, normal size from 150mm to 500mm. Any questions please contact us. Look forward to hearing from you.
Features:
Model Type: bulwark mounted;
Material: Cast Steel;
Standard: JIS F2007-1976;
Certificates: CCS, ABS, BV, LR, NK, RINA, etc..

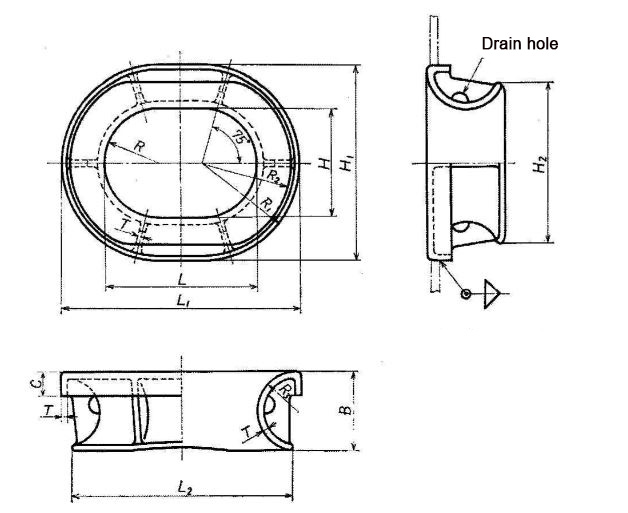

Parameters of JIS F2007-1976 Mooring Chock Type A:
Nominal Size | L | L1 | L2 | H | H1 | H2 | B | C | R | R1 | R2 | R3 | T | Number Of ribs | Leg Of weld | Calculated mass(kg) | Nominal dia. Of Applicable rope(Reference) | |
Manila rope | Wire rope | |||||||||||||||||
150 | 150 | 300 | 270 | 110 | 260 | 202 | 129 | 40 | 55 | 130 | 115 | 65 | 12 | 4 | 5 | 15.1 | 40 | 16(6x12) |
200 | 200 | 368 | 334 | 150 | 318 | 250 | 143 | 42 | 75 | 159 | 142 | 72 | 12 | 4 | 5 | 20.5 | 45 | 18(6x12) |
250 | 250 | 430 | 394 | 200 | 380 | 308 | 155 | 44 | 100 | 190 | 172 | 78 | 12 | 4 | 5 | 26.9 | 50 | 20(6x12) |
300 | 300 | 500 | 460 | 250 | 450 | 372 | 169 | 52 | 125 | 225 | 205 | 85 | 15 | 4 | 6 | 42.7 | 60 | 22.4(6x12) |
350 | 350 | 560 | 518 | 250 | 460 | 378 | 179 | 55 | 125 | 230 | 209 | 90 | 15 | 6 | 6 | 50.8 | 70 | 24(6x24) |
400 | 400 | 632 | 586 | 250 | 482 | 394 | 195 | 60 | 125 | 241 | 218 | 98 | 18 | 6 | 7 | 76.3 | 80 | 26(6x24) |
450 | 450 | 700 | 650 | 250 | 500 | 406 | 209 | 62 | 125 | 250 | 225 | 105 | 20 | 6 | 8 | 102 | 85 | 30(6x24) |
500 | 500 | 760 | 708 | 250 | 510 | 412 | 219 | 65 | 125 | 255 | 229 | 110 | 20 | 6 | 8 | 115 | 90 | 35.5(6x24) |
