MARINE CHOCK

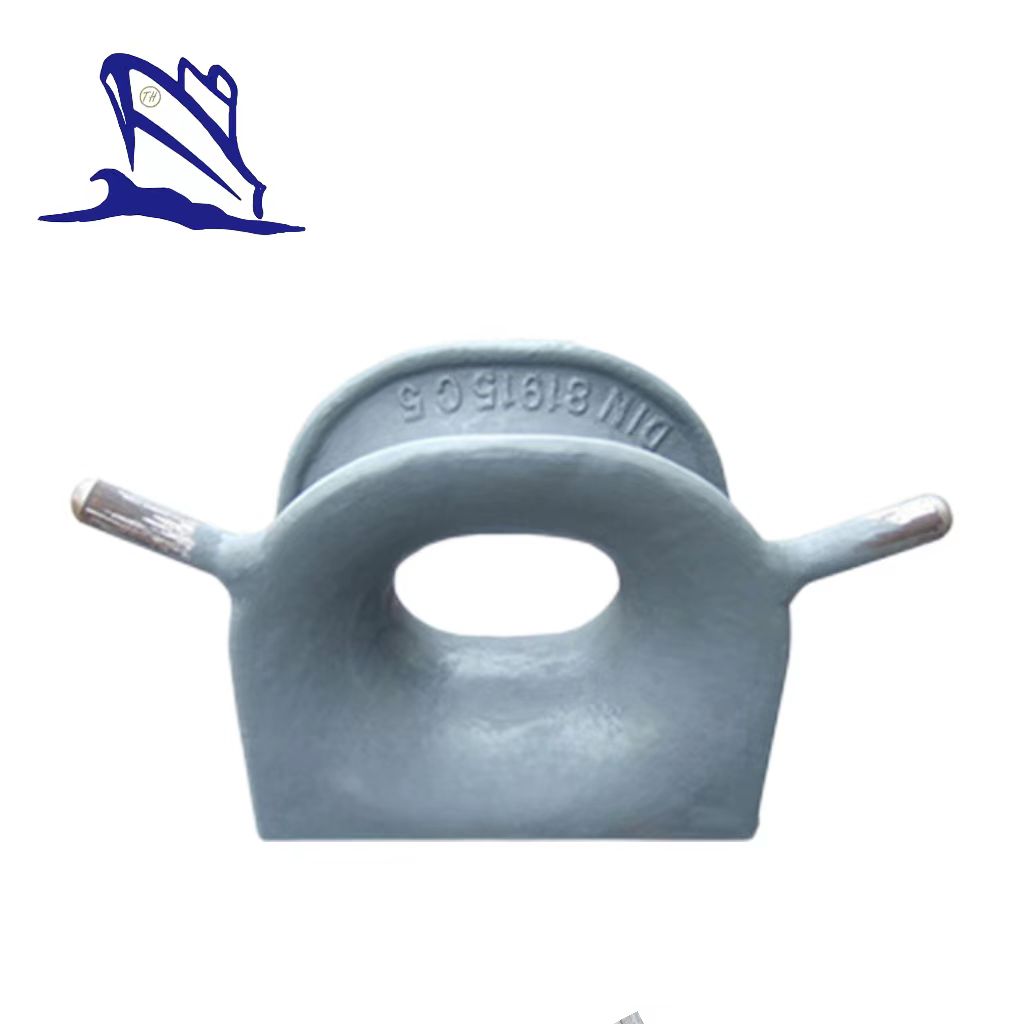

DIN 81915 Chock

Description:

DIN 81915 complying with German standard has several types, type A, type B, type C, type D and type E. Mounted on deck or bulwark, it can limit the position of the rope and protect the rope from friction. For more information please contact us without any hesitation. we are always here for you.

Features:

Model Type: DIN 81915 Chock Type A/B/C/D/E;

Material: Cast Steel;

Standard: DIN 81915;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc..

Nominal Size	Wire W.L. (Kn)	b1	b2	h1	h2	h3	l1	r1	r2	s1	s2	w1	w2	Weight (Kg)
1	10	250	175	160	65	20	285	80	45	10	5	125	90	18
2	20	315	225	200	70	25	360	100	57.5	12	6	160	115	26
3	30	390	275	250	75	32	450	125	70	14	7	200	140	42
5	50	480	340	300	80	38	550	150	90	16	8	250	180	74
8	80	585	415	360	90	45	680	180	112.5	18	9	320	225	120
12	125	710	500	440	110	55	840	220	135	20	10	400	270	185
20	200	840	595	520	130	65	1020	260	160	22	11	500	320	285
32	320	1100	800	700	150	80	1300	350	200	35	12	600	400	795
