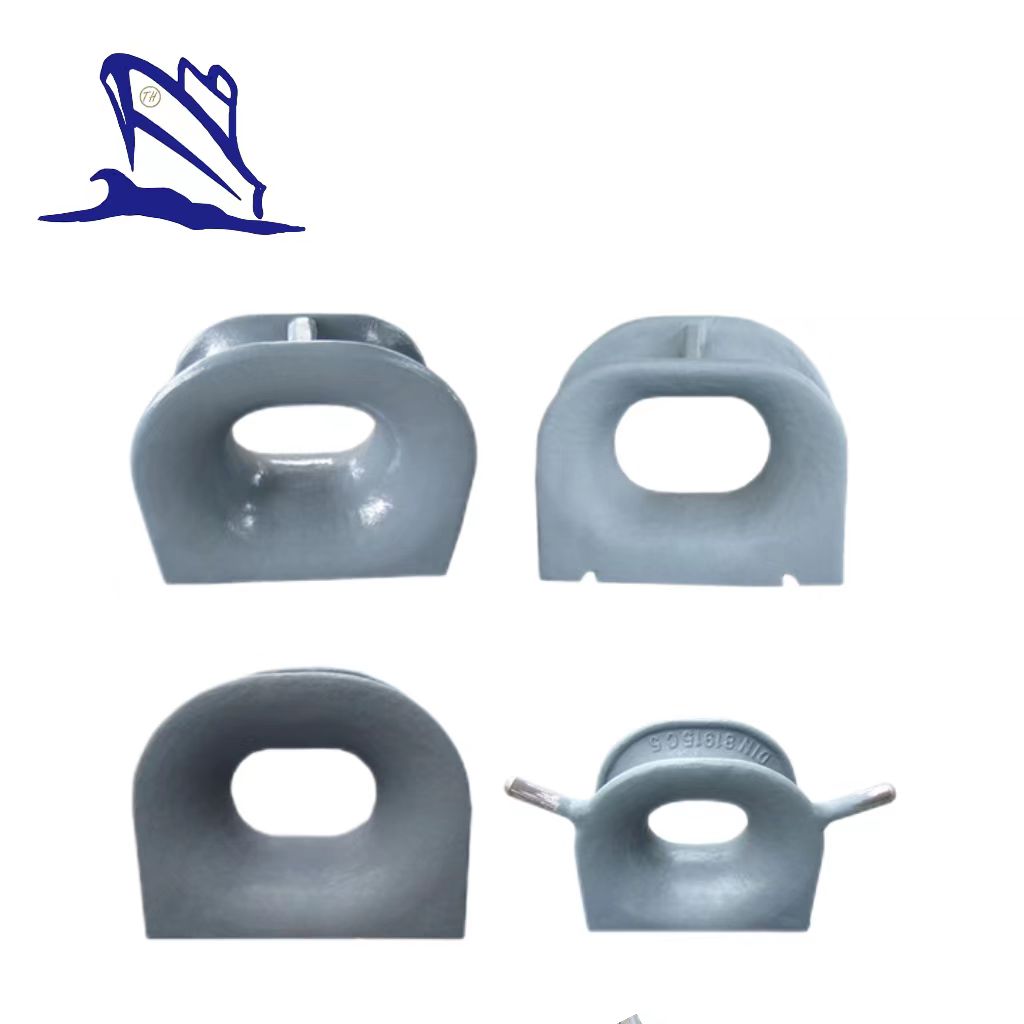

Deck Mounted Marine Chock
Description:
Deck Mounted Chock is mounted directly on the vessel's deck area, acting as a specific guide for mooring ropes. This type of chocks are aim to keep a minimum abrasion between ship and rope, reduce the risk of breakage under strain and prolong the life of the mooring ropes. Deck mounted chock is used as part of a common mooring arrangement and is supplied with ready to install with a primed paint. The deck mounted marine chocks can be fitted directly to the deck or we can supply them with a foundation if needed. By the way, we also can customize according to your request.
Standards of Deck Mounted Marine Chock:
Standard | Type of Deck Mounted Marine Chock | The Range of Nominal Size |
Type C, Type D, Type E | Type C: 200KN~320KN Type D: 10KN~80KN Type E: 80KN~200KN | |
JIS F2005-1975 Closed Chock | L: 100mm~500mm | |
Type A | L x H x D: 250x200x214~500x400x525B | |
Type AC, Type AP | Type AC (L): 310mm, 360mm, 400mm, 450mm, 500mm Type AP (L): 310mm, 360mm | |
NS 2590 Mooring Chock | W1xW2: 300mmx250mm, 400mmx250mm | |
Type B, Type BF | Type B: 100mm~500mm Type BF: 100mm~500mm | |
Type FC, Type SC | Type FC (L): 150mm~420mm Type SC (L): 150mm~400mm | |
Kevel Chock | A: 24’’, 30’’, 36’’, 42’’, 48’’ | |
Universal Closed Chock | Customized | |
Universal Open Chock | Customized | |
EU Type Deck Mounted Chock | A x B: 315mmx250mm~800mmx600mm | |
Type A | L: 310mm, 360mm | |
Type AP | L: 310mm, 360mm | |
Type AC | L: 310mm, 360mm, 400mm, 450mm, 500mm |
Features:
Model Type: Deck Mounted Marine Chock;
Material: Cast Steel;
Certificates: BV, ABS, CCS, LR, NK, KR, RINA, etc..
