MARINE TOEING BRACKET

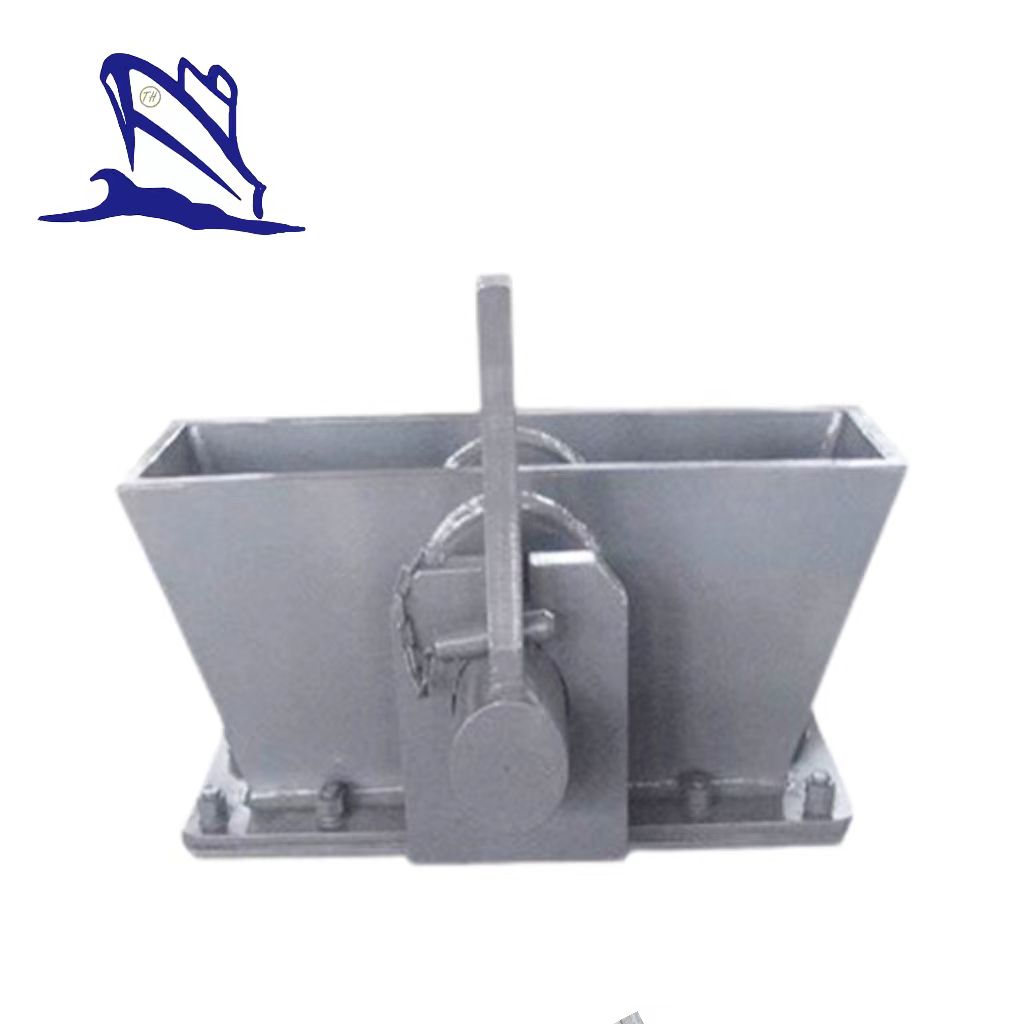

JIS F2025-1992 Plug Type Anchor Releaser

Application:

Plug type anchor releaser is used for securing the anchor chains in the chain locker. Plug type anchor releaser is applicable to anchor chain diameter 50mm to 120mm and commonly used on large and medium ships. It is installed on the anchor chains storage bulkhead, it is easy and convenient to operate when ship is in the emergent circumstance. Plug type anchor releaser is applicable up to Grade 2 anchor chains. For more detailed information, please feel contact us.

Features of JIS F2025-1992 Plug Type Anchor Releaser:

1. Type: Plug Type Anchor Releaser;

2. Standard: JIS F2025-1992;

3. Material: Steel, Brass Wire;

4. Applicable Chain Diameter: 52mm to 120mm;

5. Bolts No. Determined by Anchor Chain Diameter;

6. Certificates: CCS, ABS, BV, LR, DNV, etc.;

7. Customized size is available.

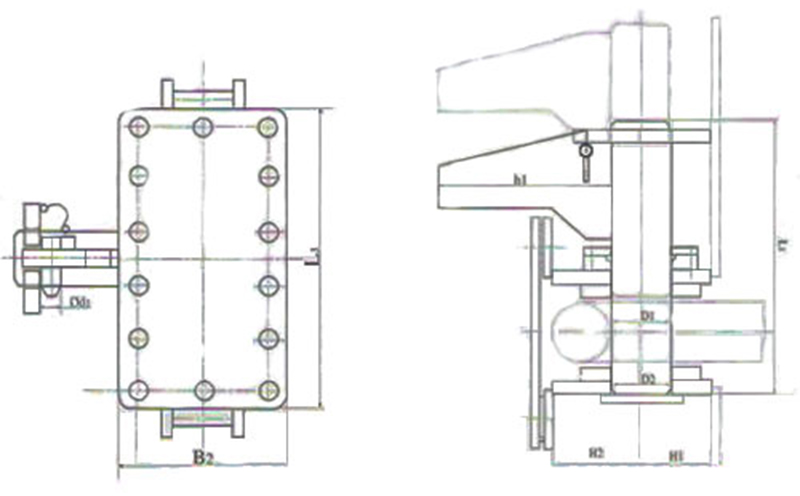

Parameters of JIS F2025-1992 Plug Type Anchor Releaser Type A:

Type	Applicable Anchor Chain Dia. (mm)	L₁	L₃	B₂	H₁	H₂	D₁	D₂	h₁	d₁	Weight (kg)
52	50~52	384	460	238	63	82	54	57	190	16	40.5
56	54~56	420	486	246	69	88	58	61	194	16	48.0
60	58~60	448	504	254	74	94	62	65	198	16	53.9
64	62~64	478	524	264	80	100	66	69	202	16	60.0
68	66~68	504	542	272	84	107	70	73	207	16	70.8
73	70~73	540	570	282	87	114	75	78	212	19	81.4
78	76~78	576	594	292	95	122	80	83	217	19	92.8
84	81~84	624	628	302	102	131	85	88	223	19	106
90	87~90	670	660	316	110	140	90	93	230	19	128
95	92~95	708	686	330	118	148	95	98	235	22	146
102	98~102	762	724	346	128	158	100	103	242	22	188
111	105~111	828	770	364	139	171	110	110	251	22	231
120	114~120	892	810	386	150	184	120	123	260	22	274

Parameters of JIS F2025-1992 Plug Type Anchor Releaser Type B:

Form 1-1:

Nominal Dia. (mm)	Applicable Anchor Chain Dia. (mm)	L4	L5	B1	B5	H4	D2	D3	R	t1	t2	D1
40	38~40	160	0	50	0	78	45	88	50	12	6	42
44	42~44	180	0	54	0	85	49	96	54	14	6	46
48	46~48	195	0	58	0	92	53	104	56	14	8	50
52	50~52	210	100	64	24	100	57	112	65	14	10	54
56	54~56	225	115	68	32	106	61	120	71	14	12	58
60	58~60	240	130	72	40	114	65	128	75	14	14	62
64	62~64	255	145	78	50	122	69	136	79	14	16	66
68	66~68	270	150	82	54	130	73	144	85	16	16	70
73	70~73	290	170	88	64	138	78	154	90	16	18	75
78	76~78	310	190	94	74	148	83	164	95	16	20	80
84	81~84	330	210	100	84	158	88	174	100	16	22	85
90	87~90	350	230	106	94	170	93	184	107	18	24	90
95	92~95	380	250	112	108	180	98	194	112	18	28	95
102	98~102	410	270	120	116	192	103	206	120	22	28	100
111	105~111	440	300	130	130	208	113	224	131	24	30	110
120	114~120	470	330	140	152	224	123	242	140	24	36	120

Form 1-2:

Nominal Dia. (mm)	l4	l5	L6	L7	b2	b3	t5	d6	Calculated Weight (kg)
40	111	12	100	70	30	11	8	14	5.9
44	119	12	100	70	30	13	8	14	8.0
48	127	12	100	70	30	15	8	14	9.8
52	137	12	100	70	30	17	8	14	11.1
56	145	12	100	70	30	19	8	14	14.0
60	153	12	100	70	30	21	8	14	16.0
64	168	15	130	90	40	18	10	18	18.1
68	176	15	130	90	40	20	10	18	23.1
73	186	15	130	90	40	22	10	18	26.5
78	196	15	130	90	40	25	10	18	30.8
84	206	15	130	90	40	28	10	18	35.3
90	220	15	130	90	40	30	10	18	42.8
95	234	15	130	90	40	33	10	18	50.7
102	255	18	180	130	50	31	12	22	66.8
111	273	18	180	130	50	35	12	22	84.0
120	295	18	180	130	50	39	12	22	102
