MARINE TOEING BRACKET

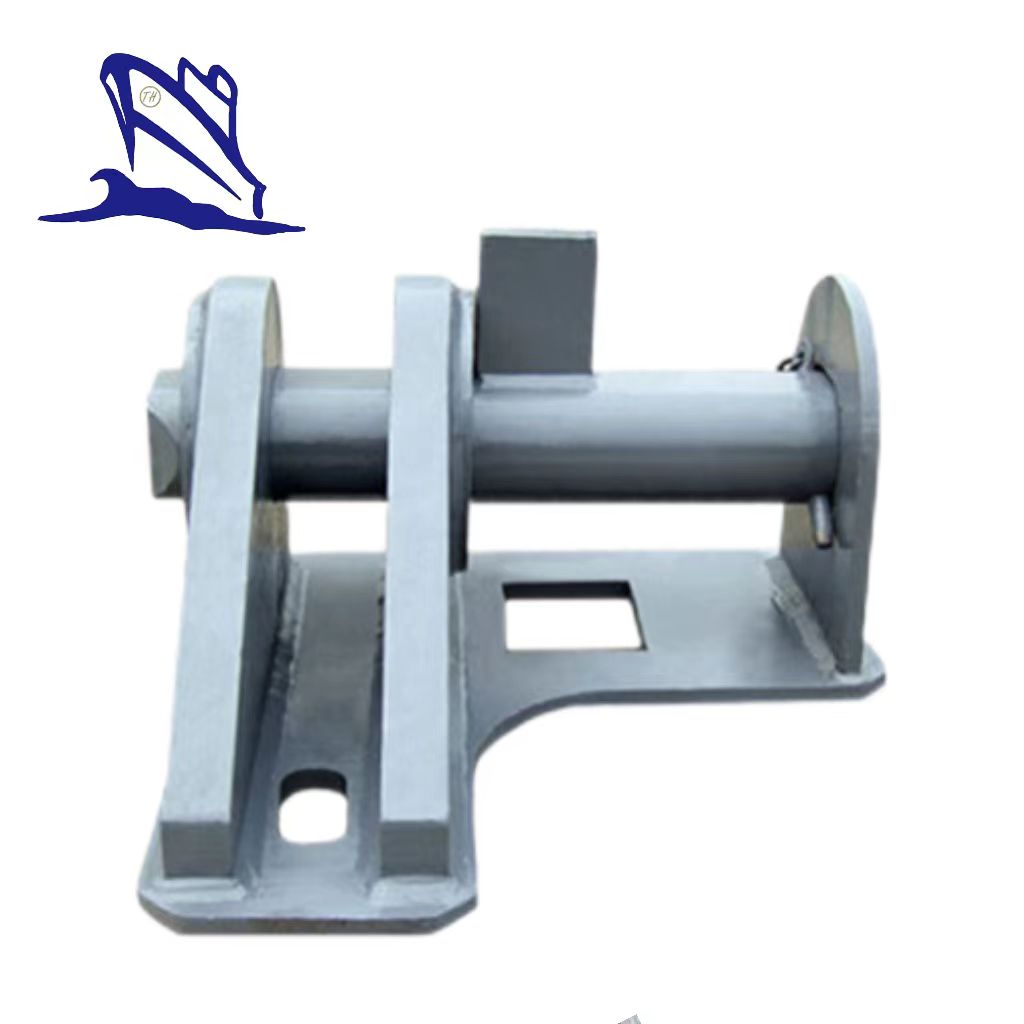

JIS F2029-97 Towing Bracket

Application:

JIS F2029-97 towing bracket is a kind of marine deck equipment. And it is welded to the deck and is rated to withstand the breaking load of the anchor chain. JIS F2029-97 towing bracket is applicable to the anchor chains with diameter of 52mm to 132mm. There are welding slots on the bracket. We can provide JIS F 2029-97 towing bracket with the certificates of BV, CCS, ABS, DNV, etc.. For more detailed information, please contact us.

Features of JIS F2029-97 Towing Bracket:

1. Standard: JIS F2029-97;

2. Material: Cast Steel and Steel Plate;

3. Suitable Chain Diameter: 50mm~132mm;

4. Welded on Deck;

5. Certificate: CCS, ABS, DNV·LR, NK, etc.;

6.Customized size is available.

Parameters of JIS F2029-97 Towing Bracket:

Form 1-1:

Nominal Size	Applicable dia. of anchor chain (mm)	Base plate							Pin
Nominal Size	Applicable dia. of anchor chain (mm)	L1	L2	L4	B	B1	B2	t3	D	L	l	l1	l2	l3	t4	h	d1
52	50~52	425	470	95	70	165	230	12	65	430	80	175	175	135	32	100	13
56	54~56	450	500	100	75	180	250	14	70	455	80	190	185	145	32	110	13
60	58~60	475	540	115	80	195	260	16	75	475	80	200	195	155	32	120	13
64	62~64	500	580	120	85	205	270	16	80	505	80	215	210	170	32	130	13
68	66~68	530	610	125	90	220	300	19	85	525	80	225	220	175	32	140	16
73	70~73	560	660	130	100	235	310	19	90	560	80	245	230	190	32	150	16
78	76~78	600	700	140	105	260	340	22	95	590	80	260	250	200	32	160	16
84	81~84	620	760	150	110	270	360	22	100	615	80	275	260	210	32	170	16
90	87~90	695	810	160	120	295	390	25	110	685	100	300	285	235	40	180	16
95	92~95	725	860	170	130	305	410	25	120	720	100	320	300	245	40	190	19
102	97~102	765	920	185	135	330	440	28	130	745	100	330	315	260	40	205	19
111	105~111	805	1000	200	145	350	470	28	140	790	100	355	335	280	40	220	19
120	114~120	850	1080	220	160	370	510	28	150	845	100	385	360	305	40	240	19
132	124~132	910	1200	240	175	395	560	30	160	905	100	415	385	330	40	260	19

Form 1-2:

Nominal Size	Eye plate							Pin support plate			Stopper pin	Welding leg length		Weight
Nominal Size	L3	H	D1	D3	R	t	t1	D2	S	e	l4	f	f1	(kg)
52	415	130	70	160	95	22	14	72	245	15	115	10	7	55
56	450	140	75	170	100	25	14	77	255	15	120	11	7	70
60	480	150	80	180	105	25	16	82	265	15	130	12	8	83
64	510	160	85	190	110	28	16	87	280	15	135	12	8	99
68	545	170	90	200	120	28	19	92	290	18	145	13	9	121
73	585	180	95	220	130	30	19	97	305	18	150	14	9	144
78	625	195	100	230	135	32	22	102	320	18	160	15	10	180
84	670	210	105	250	145	35	22	107	330	18	165	16	10	219
90	720	225	115	270	160	38	25	117	375	18	180	17	10	280
95	760	235	120	280	170	38	28	127	390	21	190	18	11	321
102	815	255	135	300	180	40	28	137	405	21	205	19	11	386
111	890	275	145	330	190	45	28	147	425	21	215	20	11	465
120	960	300	155	350	205	50	30	157	450	21	230	21	11	586
132	1050	330	165	390	225	50	35	167	480	21	245	22	11	723
