MARINE TOEING BRACKET

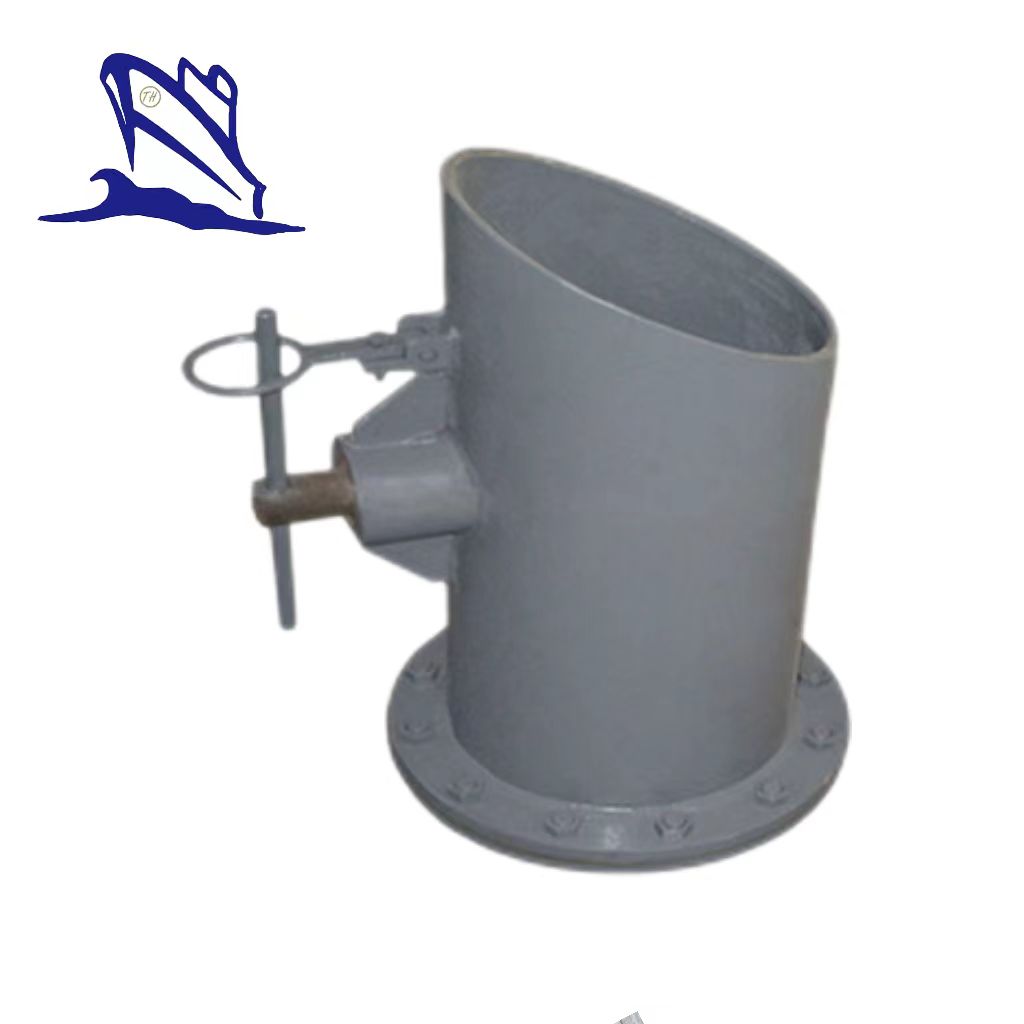

German Standard Anchor Chain Releaser




Application:

DIN 81860 german standard anchor releaser can provide you a easy and safe way to cut off the anchor when ships facing sudden danger. The materials of DIN 81860 german standard anchor releaser are casting steel or stainless steel. Besides, it is produced through many procedures such as casting forging and welding. German standard anchor releasers’ surface should be polished and galvanized without any defects. For more information, please contact us.

Features of DIN 81860 German Standard Anchor Releaser:

1. Standard: DIN 81860;

2. Nominal Chain Diameter: 36mm to 152mm;

3. Material: Cast Steel;

4. Surface Treatment: Anti-rust Paint Surface;

5. Package: customized;

6. Certificates: CCS, ABS, DNV·LR, NK, etc.;

7. Customized size is available.

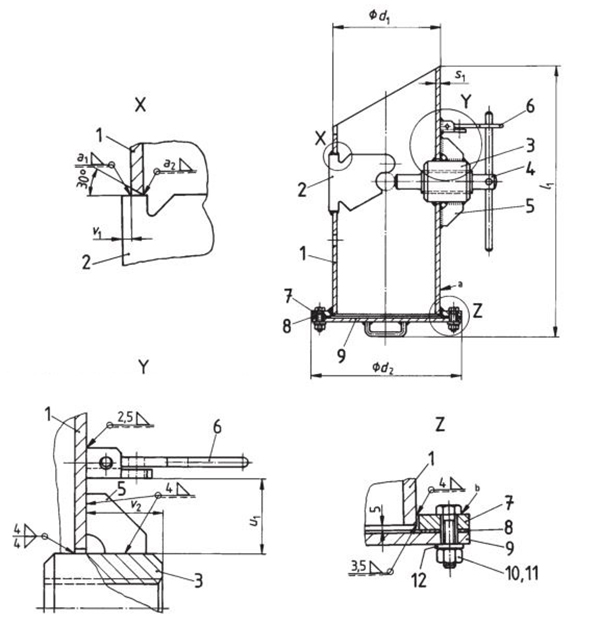

Parameters of DIN 81860 German Standard Anchor Releaser:

Anchor Chain

Dia.

(mm)

d1 x s1

d2

l1

u1

v1

v2

a1

a2

36,38,40,42,44,46

273 x 12.5

375

735

75

10

75

6

3

48,50,52,54,56

323.9 x 14.2

440

835

95

12

90

6

4

58,60,62,64,66,68

406.4 x 16

540

995

110

14

95

8

5

70,73,76,78,81

508 x 17.5

645

1245

105

15

100

10

6

84,87,90,92

508 x 17.5

645

1245

130

15

150

10

6

95,97,100,102,105

610 x 20

754

1430

130

18

150

10

8

107,111,114

610 x 20

754

1430

170

18

185

10

8

117,120,122,124,127

711 x 22.2

856

1615

170

20

185

12

8

130,132,137

813 x 22.2

958

1790

170

20

185

12

8

142,147,152

914 x 25

1060

1970

190

22

200

14

10
