MARINE TOEING BRACKET

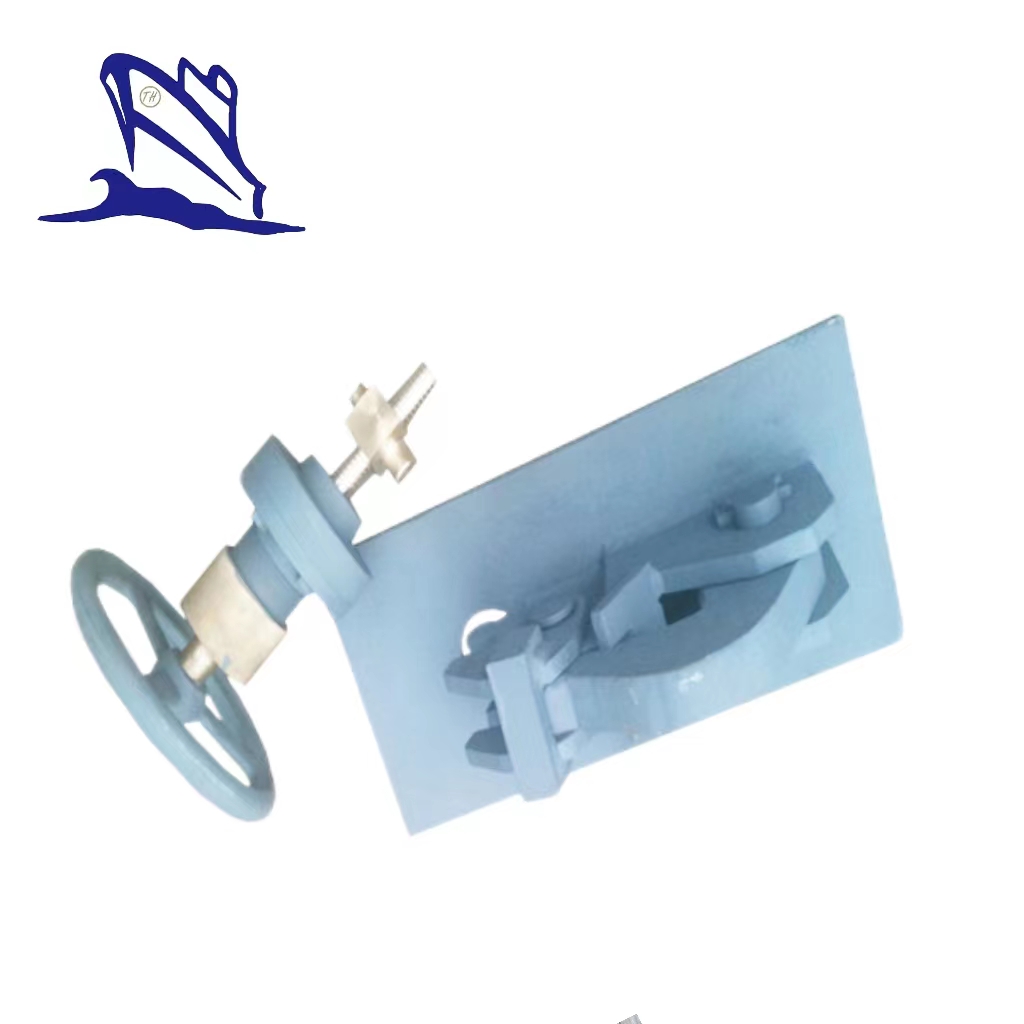

CB 887-77 Watertight Swivel Type Anchor Releaser

Application:

One main important feature of CB 887-77 anchor releaser is watertight function. Sailors operate on the ship facing dangerous situations and they can use anchor releaser to release the anchor chains quickly and then guarantee the ship's safety. We can supply watertight swivel type anchor releaser with qualified certificates. If you want to know more information, please contact us.

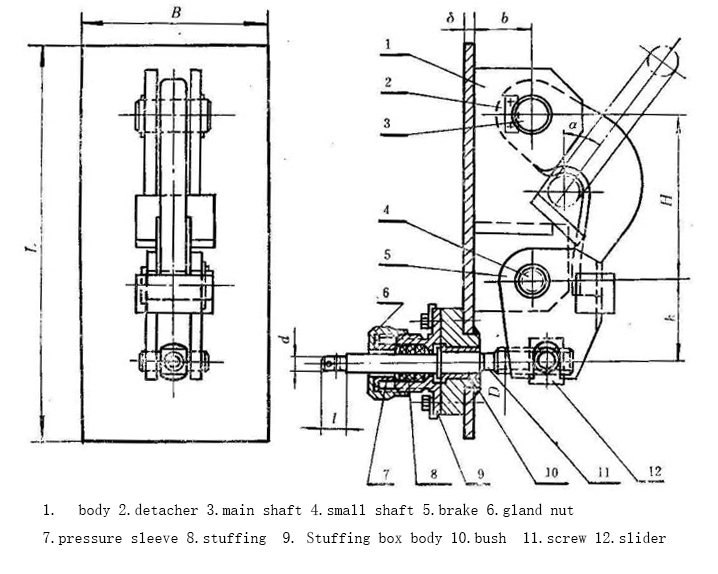

Parameters of CB 887-77 Watertight Swivel Type Anchor Releaser:

Anchor Chain Dia. (mm)	H	h	b	L	B	&	D	d	l	Weight (kg)
28	170	65	60	500	200	10	T24×5	18	45	22.73
31	180	70	70	510	210	10	T26×5	18	45	27.74
34	180	70	70	510	210	10	T26×5	18	45	28.1
43	200	80	80	550	250	12	T26×5	18	45	48.67
49	220	85	80	560	260	14	T32×6	18	45	63.63
53	235	90	90	575	275	14	T32×6	18	45	78.30
57	235	90	90	575	275	14	T32×6	18	45	79.47

Features of CB 887-77 Watertight Swivel Type Anchor Releaser:

1. Nominal Chain Diameter: 28mm to 57mm;

2. Material: Carbon Steel, Lead Brass, Iron Brass;

3. Smooth Surface Without Burrs, Cracks and Sharp Corners, etc.;

4. Lubricated Friction Surface and Anti-rust Painting;

5. Flexible Rotation and Operation;

6. Watertight Feature;

7. Obtain Qualified Certificate;

8. Supply CCS, ABS, BV, DNV, LR, etc.;

9. Customized size is available.
