CB 3048-1983 Electric Mooring Wire Rope Reel
Application:
CB 3048-1983 motor driven tight wire reel is suitable for all kinds of ships, except towing or using for stranded cable. This type mooring wire reel is controlled by a motor, by operating a operating handle connected with a worm gear reducer. This standard wire reel has three types: Type A, Type AS ,Type B, Type As has double reels. Steel wire size is the key to choose a right electric mooring wire rope reel. Please check with the parameters on data sheets.
For more information, please feel free to contact us.
Features of CB 3048-1983 Electric Mooring Wire Rope Reel:
1. Model: A26, A32, As 26, As 32, B39, B48;
2. Max. Diameter of Steel Wire: 26mm~48.5mm;
3. Steel Length: 210m-220m;
4. Material: Cast steel and carbon steel;
5. No Pit, Burr, Crack or Other Defects.
Specifications of CB 3048-1983 Electric Mooring Wire Rope Reel:
Type | Model | Max. Diameter of Steel Wire (mm) | Length of Steel Wire (m) | Motor | Speed Ratio | Reel Rope Speed (m/min) | Max. External Size (mm) | Weight (kg) | |||
Model | Power(kw) | Rotate Speed (r/min) | 1350 r/min | 410 r/min | |||||||
A | A26 | 26 | 220 | JZ2-H-23-4/12 | 4.3/1/7 | 1350/410 | 44 | 56 | 17 | 1330×1360×1175 | 545 |
A32 | 32 | 210 | 60 | 18 | 1430×1450×1330 | 575 | |||||
As26 | 26 | 220 | 56 | 17 | 2345×1360×1175 | 773 | |||||
As32 | 32 | 210 | 60 | 18 | 2525×1450×1330 | 820 | |||||
B | B39 | 39 | 210 | 64 | 19 | 1800×1360×1075 | 700 | ||||
B48 | 48.5 | 210 | 73 | 22 | 2060×1410×1270 | 824 | |||||

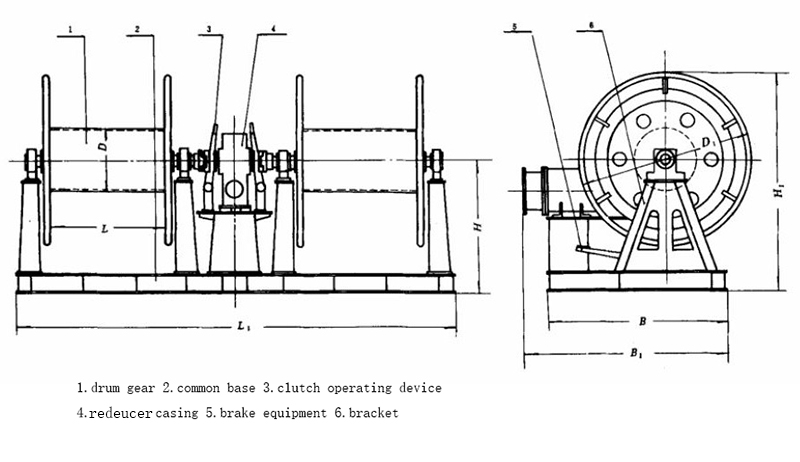

Parameters of CB 3048-1983 Electric Mooring Wire Rope Reel Type As:
Model | Max. cable Dia. (mm) | D (mm) | D1 (mm) | B (mm) | B1 (mm) | L (mm) | L1 (mm) | H (mm) | H1 (mm) | Weight (kg) |
As26 | 26 | 300 | 870 | 1120 | 1360 | 550 | 2340 | 740 | 1175 | 773 |
As32 | 32 | 360 | 1050 | 1120 | 1450 | 650 | 2525 | 800 | 1330 | 820 |

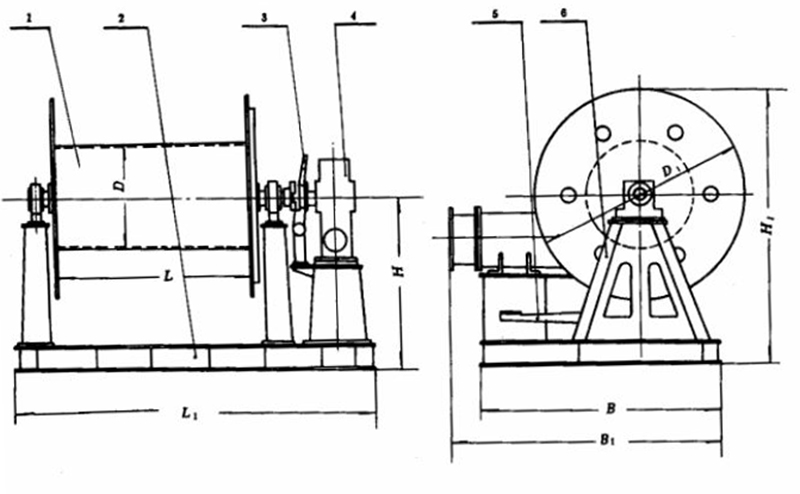

Parameters of CB 3048-1983 Electric Mooring Wire Rope Reel Type A:
Model | Max. cable Dia. (mm) | D (mm) | D1 (mm) | B (mm) | B1 (mm) | L (mm) | L1 (mm) | H (mm) | H1 (mm) | Weight (kg) |
A26 | 26 | 300 | 870 | 1120 | 1360 | 550 | 1330 | 730 | 1175 | 545 |
A32 | 32 | 360 | 1050 | 1120 | 1450 | 650 | 1430 | 800 | 1330 | 575 |

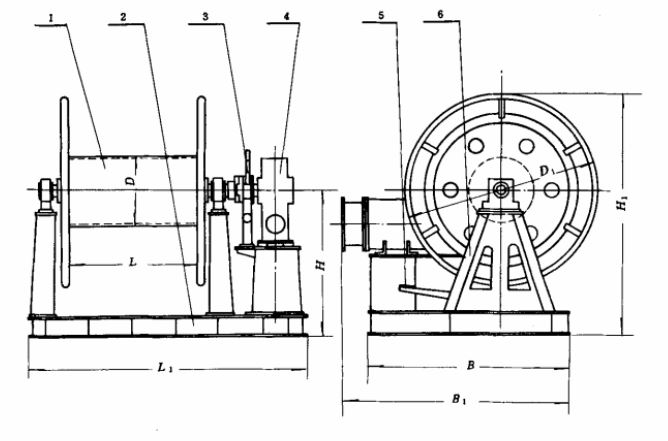

Parameters of CB 3048-1983 Electric Mooring Wire Rope Reel Type B:
Model | Max. cable Dia. (mm) | D (mm) | D1 (mm) | B (mm) | B1 (mm) | L (mm) | L1 (mm) | H (mm) | H1 (mm) | Weight (kg) |
B39 | 39 | 450 | 870 | 1120 | 1360 | 994 | 1800 | 750 | 1075 | 700 |
B48 | 48.5 | 550 | 970 | 1120 | 1410 | 1250 | 2060 | 800 | 1270 | 824 |
