MARINE CHAIN STOPPER

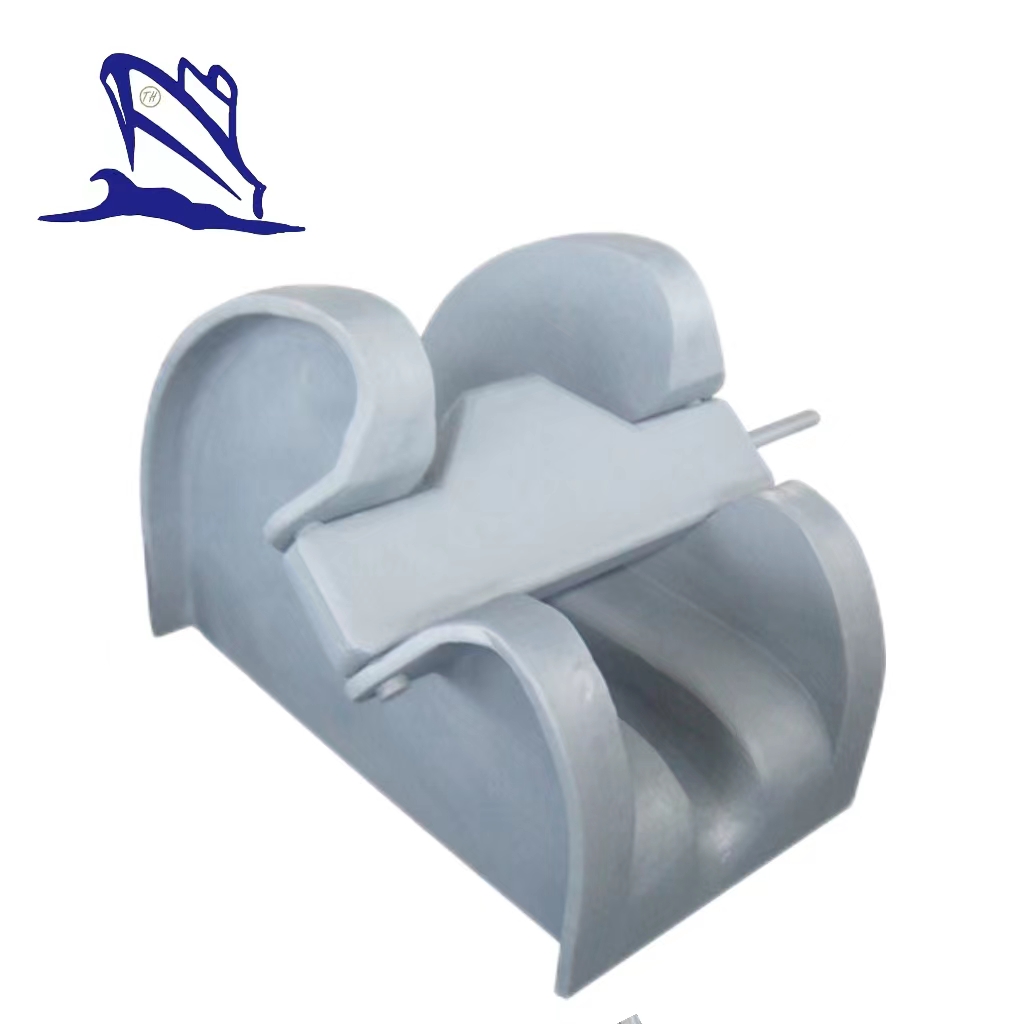

JIS F2031 Cast Steel Bar Type Chain Stopper

Application:

JIS F2031-1998 cast steel bar type chain stopper is a device used for ship mooring to prevent the anchor chain slipping out.

We can supply different types of chain stoppers including roller type chain stopper, screw type chain stopper, bar type chain stopper, pawl type chain stopper, etc..

For more information, please contact us.

Parameters of JIS F2031 Cast Steel Bar Type Chain Stopper:

Nominal Size (mm)	Applicable Dia. of Anchor Chain (mm)	Size(mm)				Weight (kg)
Nominal Size (mm)	Applicable Dia. of Anchor Chain (mm)	A	B	C	D	Weight (kg)
40	38~40	378	540	390	336	85
44	42~44	412	590	424	366	108
48	46~48	450	640	460	397	139
52	50~52	491	695	494	428	173
56	54~56	528	745	530	457	210
60	58~60	564	795	564	488	255
64	62~64	600	850	600	517	305
68	66~68	635	900	636	547	363
73	70~73	675	960	678	582	452
78	76~78	715	1020	720	617	551

Features of JIS F2031 Cast Steel Bar Type Chain Stopper:

1. Model Type: bar type chain stopper;

2. Material: Cast steel;

3. Applicable Anchor Chain Dia.:38~78mm;

4. Weight: 85 to 551kg;

5. Finish: Anti-rust paint;

6. Certificate: ABS, CCS, BV, LR, NK, etc.;

7. Customized service is available.
