MARINE CHAIN STOPPER

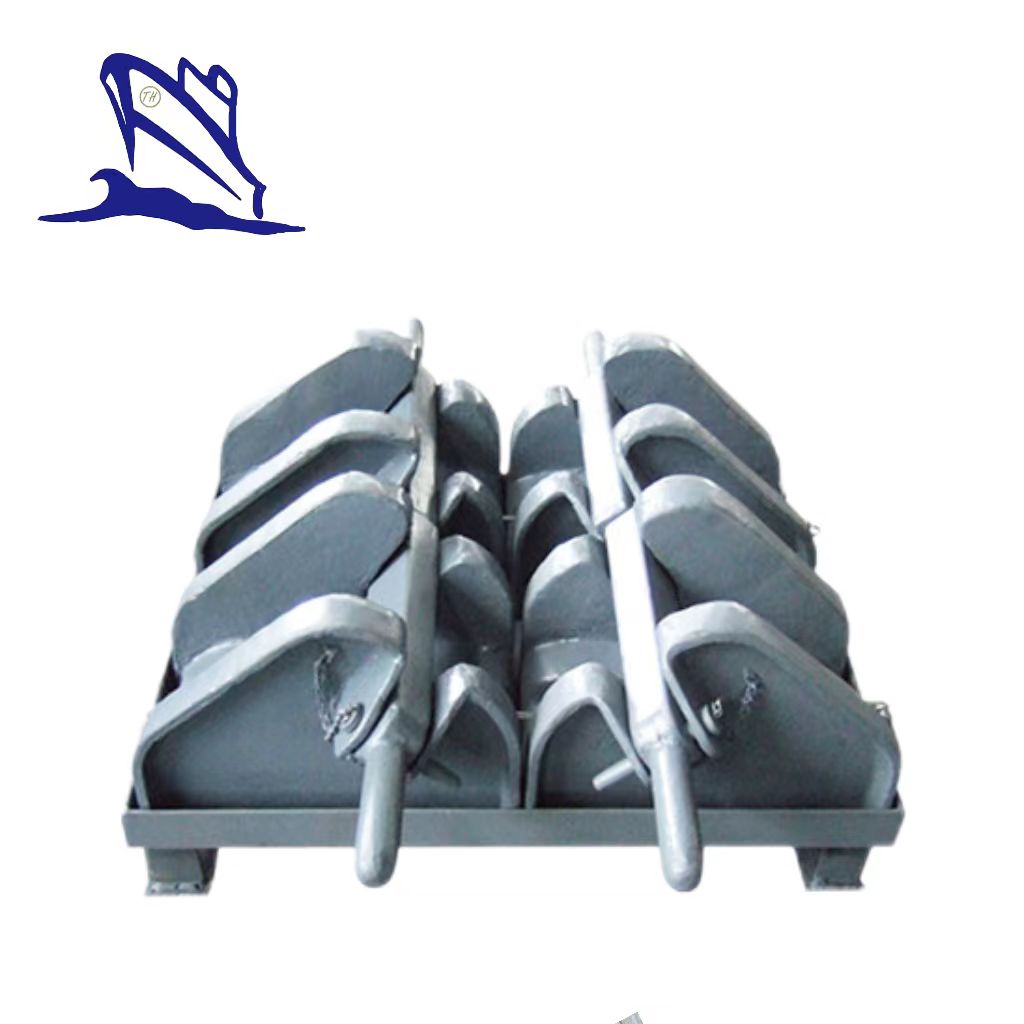

JIS F2031 Small Size Bar Type Chain Stopper

Application:

JIS F2031 small size bar type chain stopper has a roller bar in machine to clamp anchor chains according to JIS F2031-1998 standard.

Features of JIS F2031 Small Size Bar Type Chain Stopper:

1. Model Type: Bar Type Chain Stopper;

2. Standard: JIS F2031-1998;

3. Material: Cast steel;

4. Certificate: ABS, CCS, LR, BV, NK,etc.;

5. Customized size available.

Parameters of JIS F2031-1998 Small Size Bar Type Chain Stopper:

Form 1-1:

Nominal Size	Applicable Anchor Chain Dia. (mm)	B	B1	B3	H	H1	H2	H3	L	b	b1	d	h	l	l1	l2
19	17~19	134	112	48	190	107	85	62	270	29	36	14	32	80	100	21
22	20~22	153	129	56	216	121	100	72	310	32	39	16	37	95	113	24
25	23~25	175	147	68	241	136	112	82	345	36	43	18	43	110	128	27
28	26~28	193	163	74	270	153	125	92	385	39	46	20	48	121	140	29
32	29~32	220	186	84	305	174	145	104	435	44	53	23	54	137	160	33
36	34~36	246	208	94	342	194	162	118	490	48	57	26	61	157	177	37

Form 1-2:
