MARINE CHAIN STOPPER

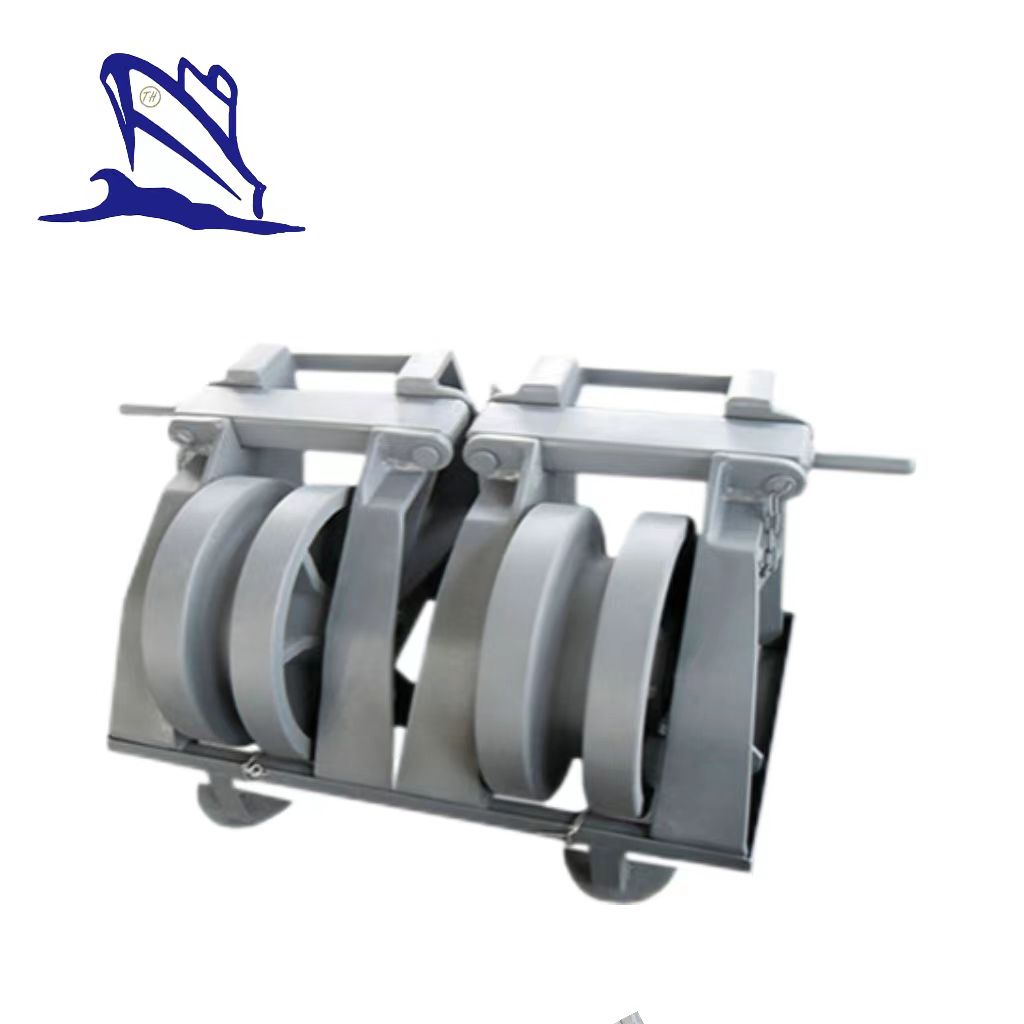

JIS F2031 Roller Bar Type Chain Stopper

Application:

JIS F2031 roller bar type chain stopper has one roller and one bar in the chain stopper according to JIS F2031.

For more informations, please feel free to contact us.

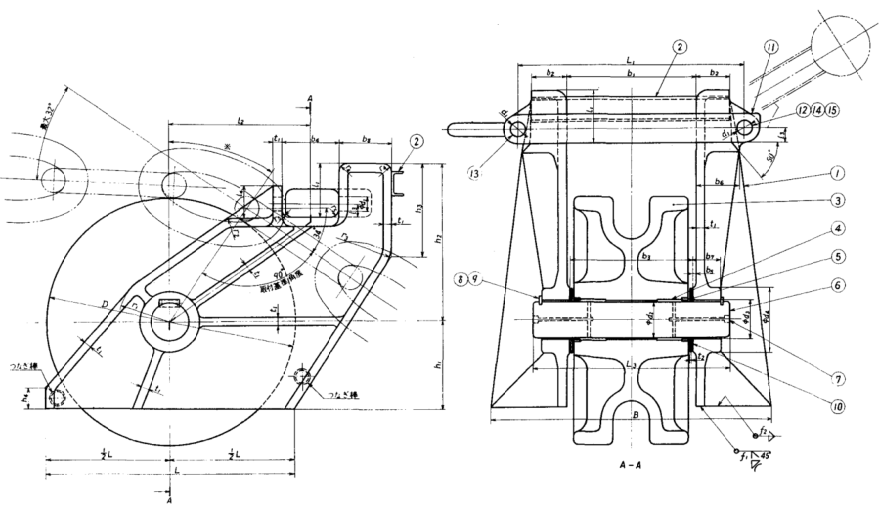

Parameters of JIS F2031 Roller Bar Type Chain Stopper:

Form 1-1:

Nominal Size (mm)	Applicable Anchor Chain Dia. (mm)	L	L1	l1	l2	l3	l4	B	b1	b2	b3	b4
73	70~73	730	700	130	414	45	100	850	400	100	376	180
78	76~78	780	730	140	442	48	105	900	425	110	399	190
84	81~84	840	780	160	475	50	110	970	454	120	426	200
90	87~90	900	840	180	507	55	125	1030	484	130	454	210
95	92~95	950	880	200	535	58	130	1080	508	140	476	220
102	97~102	1020	940	220	572	60	135	1150	540	150	506	230
107	105~107	1070	990	240	600	63	140	1210	569	160	533	240
114	111~114	1140	1040	250	637	68	150	1270	598	170	560	250
122	117~122	1220	1100	270	679	70	155	1340	632	180	592	260
132	127~132	1320	1170	280	730	75	165	1440	674	190	632	270

Form 1-2:

Form 1-3:

Features of JIS F2031 Roller Bar Type Chain Stopper:

1. Model Type: Roller Bar Type Chain Stopper;

2. Standard: JIS F2031-1998;

3. Material: Cast Steel;

4. Applicable Anchor Chain Dia.: 70~132mm;

5. Weight: 1000kg~5080kg;

6. Certificate: ABS, CCS, LR, BV, NK, etc.;

7. Customize service is available.
