MARINE CHAIN STOPPER

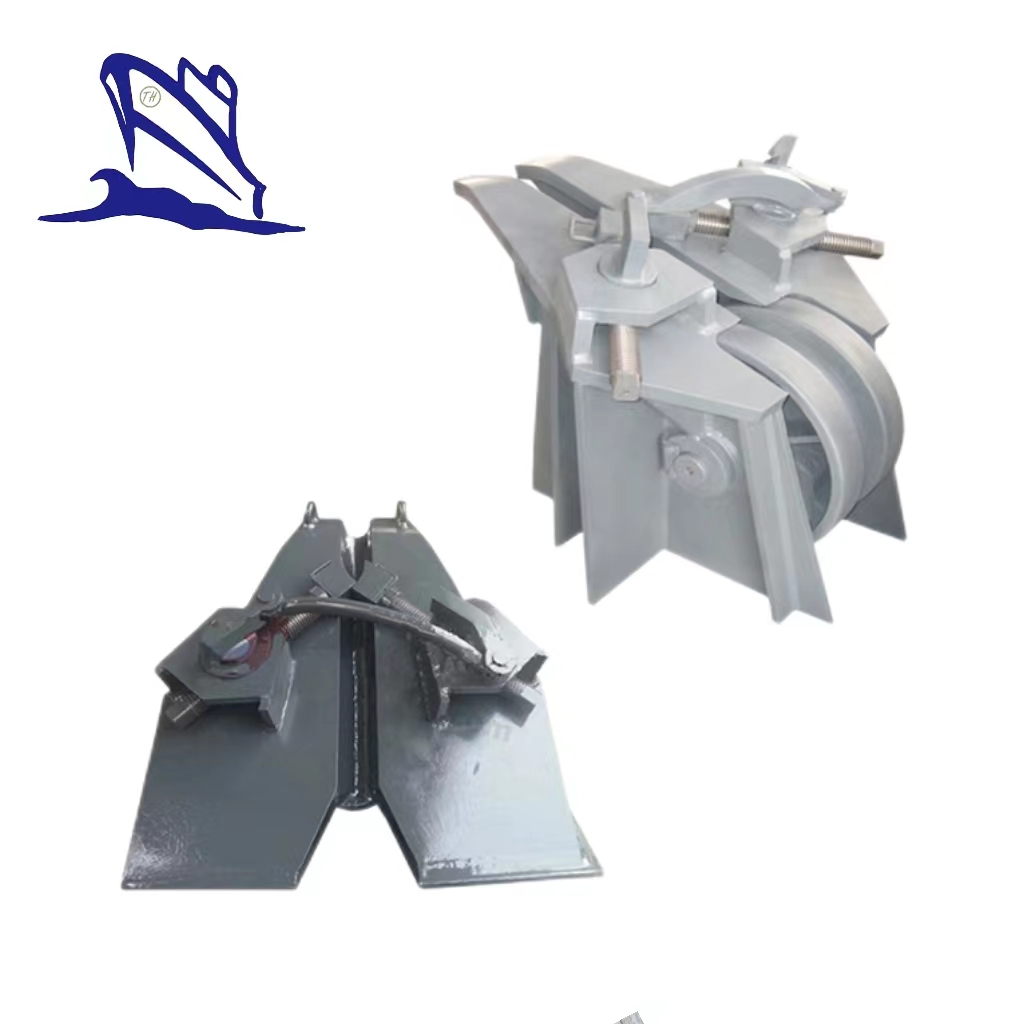

CB T3822-99 Adjustable Chain Stopper

Description:

CB/T 3822-99 adjustable chain stopper is a newly developed and produced chain stopper, with top block adjustable. The gap between anchor and the top blocks will get narrowed when the screw tightened, that's why it is suitable for different diameter of anchor chain. Adjustable chain stopper has simple structure, and it is easy to operate. It greatly simplifies the work of installation and commissioning.

For more information, please contact us.

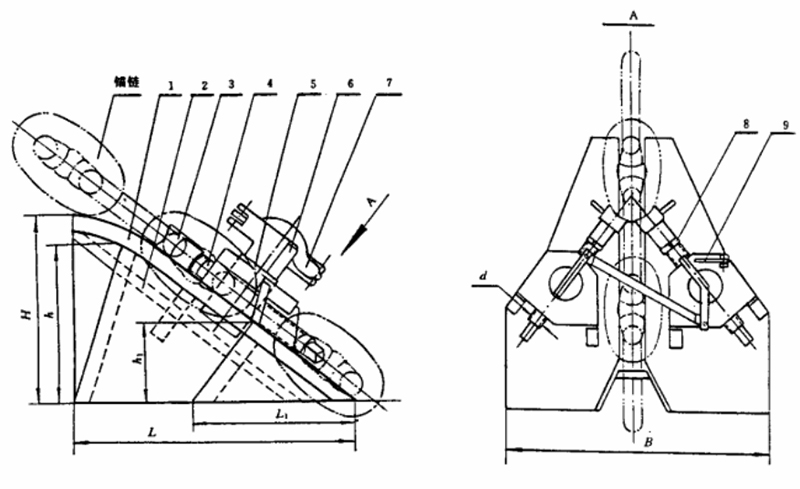

Parameters of CB/T 3822-99 Adjustable Chain Stopper Type A:

Nominal Size (mm)	Applicable Anchor Chain Dia. (mm)	B	H	h	h1	L	L1	Screw d	Weight (kg)
24	22~24	383	215	183	94	328	184	Tr24x5	35
28	26~28	449	251	214	109	383	214	Tr28x5	56
32	30~32	515	278	245	125	438	245	Tr32x6	83
36	34~36	580	323	275	140	492	275	Tr36x6	118
40	38~40	644	359	306	156	547	306	Tr40x7	162
44	42~44	708	395	336	171	602	336	Tr44x7	216
48	46~48	773	431	367	187	656	367	Tr48x8	280
52	50~52	837	466	398	203	711	398	Tr52x9	356
56	54~56	902	502	428	218	766	428	Tr55x9	445
60	58~60	966	538	459	234	820	459	Tr60x9	547
64	62~64	1031	574	489	249	875	489	Tr65x10	664
68	66~68	1095	610	520	265	930	520	Tr70x10	797
73	70~73	1175	654	558	284	998	558	Tr75x10	985
78	76~78	1256	700	596	304	1067	596	Tr80x10	1203
84	81~84	1353	753	642	327	1148	642	Tr85x12	1501
90	87~90	1449	807	688	350	1230	688	Tr90x12	1846
95	92~95	1530	852	726	370	1299	726	Tr95x12	2173
102	100~102	1642	915	780	398	1395	780	Tr100x12	2690
107	105~107	1723	959	818	417	1463	818	Tr110x12	3102
114	111~114	1836	1022	871	444	1559	871	Tr120x14	3752
120	117~120	1932	1077	918	468	1641	918	Tr120x14	4382
127	122~127	2045	1139	971	495	1737	971	Tr130x14	5195
137	130~137	2206	1229	1048	534	1874	1048	Tr140x14	6520

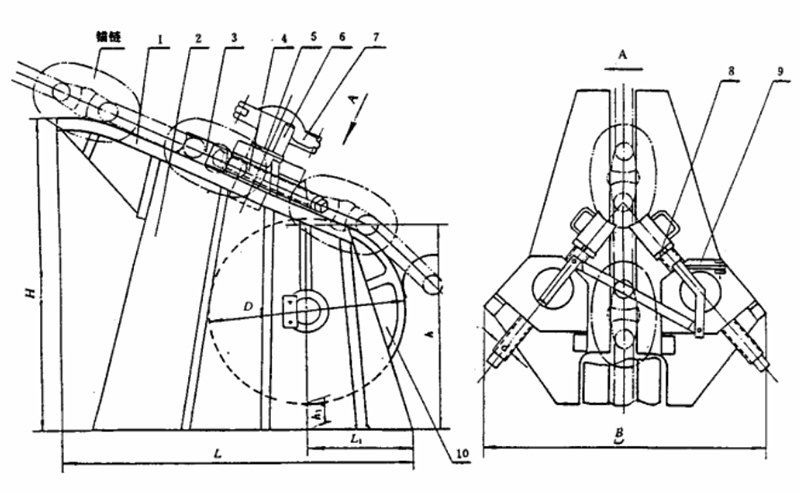

Parameters of CB/T 3822-99 Adjustable Chain Stopper Type B:

Nominal Size (mm)	Applicable Anchor Chain Dia. (mm)	B	H	h	h1	L	L1	D	Screw d	Weight (kg)
24	22~24	383	427	276	35	458	133	264	Tr24x5	72
28	26~28	449	498	322	41	538	156	308	Tr28x5	118
32	30~32	515	569	368	47	616	179	352	Tr32x6	175
36	34~36	580	641	415	53	694	201	396	Tr36x6	249
40	38~40	644	712	461	59	770	224	440	Tr40x7	342
44	42~44	708	783	507	65	848	246	484	Tr44x7	455
48	46~48	773	854	553	71	925	268	528	Tr48x8	591
52	50~52	837	925	599	76	1002	291	572	Tr52x8	752
56	54~56	902	996	644	82	1079	313	616	Tr55x9	939
60	58~60	966	1067	691	88	1156	335	660	Tr60x9	1154
64	62~64	1031	1139	737	95	1233	358	704	Tr65x10	1401
68	66~68	1095	1210	783	100	1310	380	748	Tr70x10	1681
73	70~73	1175	1298	840	107	1406	408	803	Tr75x10	2079
78	76~78	1256	1388	898	115	1502	436	858	Tr80x10	2537
84	81~84	1353	1494	967	123	1618	469	924	Tr85x12	3169
90	87~90	1449	1601	1036	132	1734	503	990	Tr90x12	3897
95	92~95	1530	1690	1094	140	1830	531	1045	Tr95x12	4583
102	100~102	1642	1815	1175	150	1965	570	1122	Tr100x12	5673
107	105~107	1723	1903	1232	157	2061	598	1177	Tr110x12	6549
114	111~114	1836	2028	1312	168	2196	637	1254	Tr120x14	7921
120	117~120	1932	2136	1382	176	2312	670	1320	Tr120x14	9238
127	122~127	2045	2260	1463	188	2446	710	1397	Tr130x14	10950
137	130~137	2206	2438	1578	201	2639	765	1507	Tr140x14	13746

Features of CB/T 3822-99 Adjustable Chain Stopper:

1. Model Type: adjustable chain stopper;

2. Standard: CB/T 3822-1999;

3. Material: Cast Steel;

4. Applicable Chain Dia.: 22 to 137mm;

5. Weight: 72 to 13746kg;

6. Certificate: CCS, ABS, BV, LR, NK, etc.;

7. Customized service is available.
