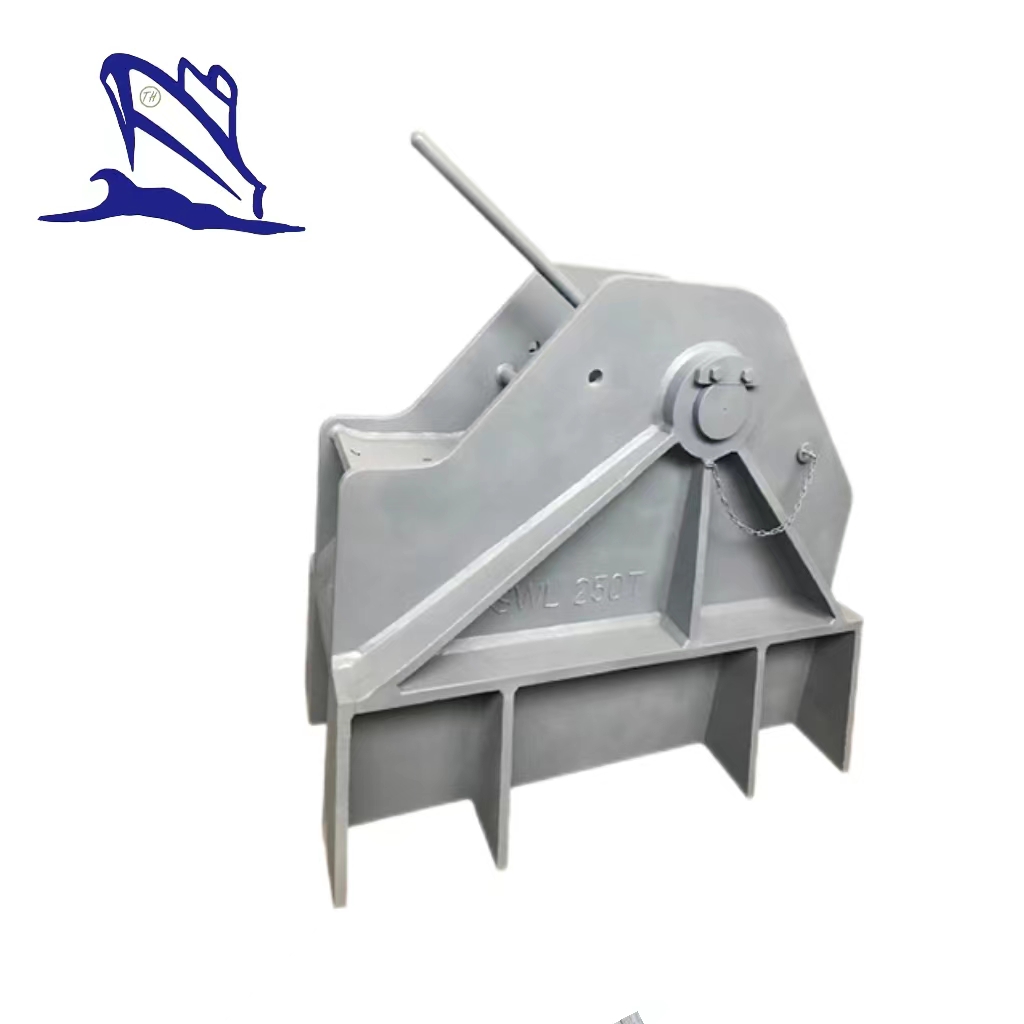

MARINE CHAIN STOPPER

Description:

It is installed between windlass and hawsepipe, chain stopper clamps the anchor chains and avoid it slipping out. When casting anchor, chain stopper transfer the pull strength of anchor and anchor chain to the ship body in order to reduce the load of windlass and protect it. CBT 3672-2016 single point mooring chain stopper is strictly complying with standards. It has high quality, stable performance and can withstand 80% breaking load of anchor chains. If you’re interested in our products, please feel free to contact us. We’re looking forward to having cooperation with you.

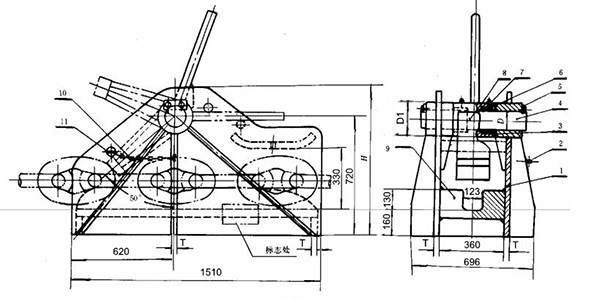

Parameters of CBT 3672-2016 Single Point Mooring Chain Stopper Type A:

CBT 3672-2016 Single Point Mooring Chain Stopper:

Material: Cast Steel and Steel Plate;

Mounting Type: Welded Mounting;

Foundation is available;

Nominal Chain Diameter: 76mm.
