MARINE ROPE

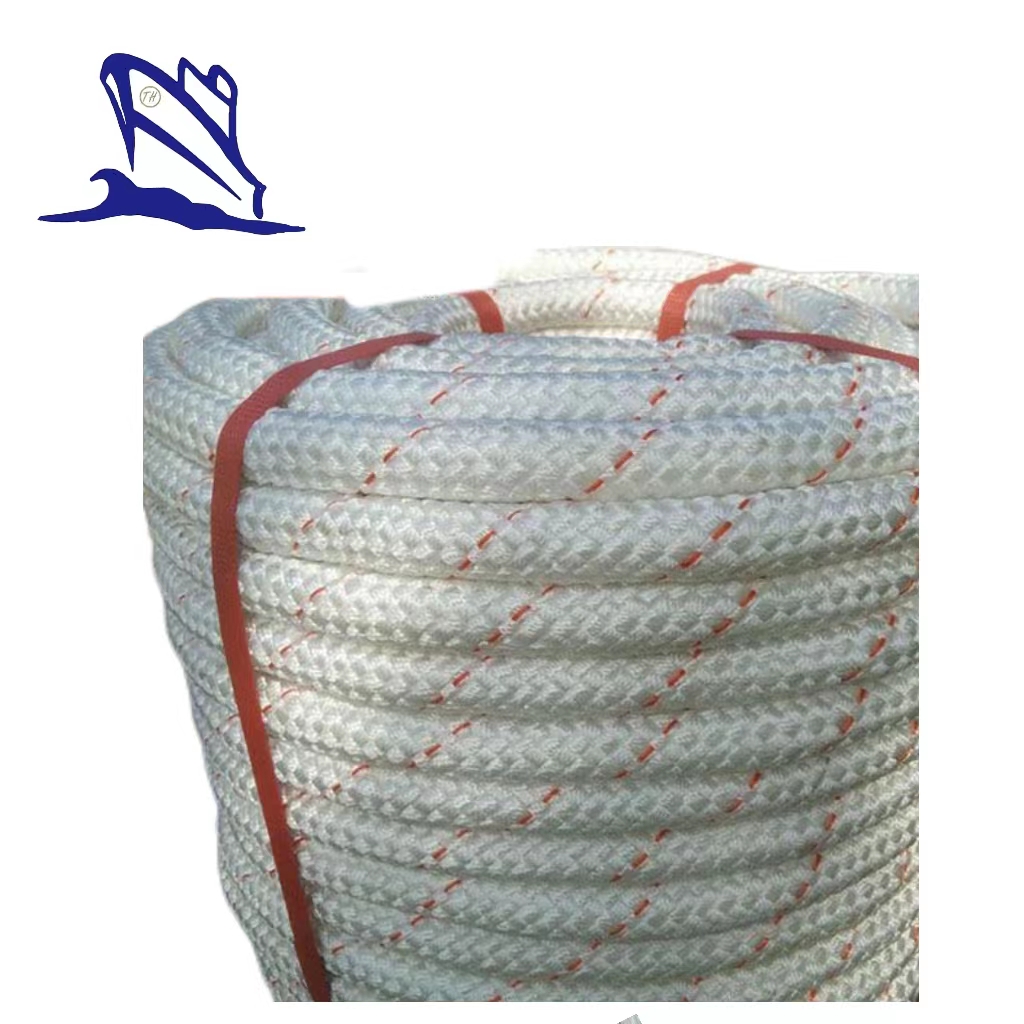

Nylon Marine Mooring Rope

Description:

Nylon marine mooring rope is a type of synthetic rope that is commonly used for securing boats and other watercraft to docks or other structures. It is made from strong and durable nylon fibers, which provide excellent resistance to abrasion, UV rays, and saltwater corrosion. Nylon marine mooring rope is typically braided to increase its strength and prevent it from unraveling. It is available in various sizes and lengths to suit different types of boats and mooring applications. Overall, nylon marine mooring rope is a reliable and long-lasting option for securing boats in marine environments.

Characteristics of Nylon Marine Mooring Rope:
Nylon marine mooring rope is a type of synthetic rope that is commonly used in the maritime industry for securing boats, ships, and other vessels to the dock or anchor. The material characteristics of nylon marine mooring rope include:
1.High strength: Nylon is known for its high tensile strength and can withstand heavy loads without breaking. This makes it an ideal material for mooring ropes that need to withstand the weight and movement of boats and ships.
2.Elasticity: Nylon has a high degree of elasticity, which means it can stretch and absorb shock loads. This helps to reduce the impact on the vessel and the mooring system, making it less likely to break or damage.
3.Resistance to abrasion: Nylon has a high resistance to abrasion, which means it can withstand the wear and tear of constant use in marine environments. This makes it a durable and long-lasting material for mooring ropes.
4.UV resistance: Nylon is resistant to the damaging effects of UV radiation from the sun, which can cause other materials to weaken and degrade over time. This makes it a good choice for mooring ropes that will be exposed to sunlight for extended periods.
5.Water resistance: Nylon is highly resistant to water absorption, which means it will not weaken or degrade when exposed to saltwater or freshwater. This makes it a reliable material for mooring ropes that will be used in marine environments.

In summary, the material characteristics of nylon marine mooring rope make it a strong, durable, and reliable option for securing boats and ships to docks or anchors. Its high strength, elasticity, resistance to abrasion and UV, and water resistance make it a popular choice for marine applications.

Specification of Nylon Marine Mooring Rope:

1. Material: Nylon (polyamide fiber);

2. Strands: 3,8,12,16 or as your requirements;

3. Diameter: 4mm-160mm or on request;

4. Color: As your needs;

5. Applications: shipbuilding, ocean transportation, national defense, military industry, sea petroleum, harbor operation, etc.;

6. Packing: Packaged with bags, standard export carton or by customer requirements;

7. Certificates: ABS, CCS, ISO, NK, BV, LR, RS, etc..

Main Performance:

Material	Polyamide multifilament	Polyamide yarn	Polypropylene multifilament	Polypropylene	Polyester	Polypropyle and Polyester mixed
Spec.Density	1.14 not floating	1.14 not floating	0.91 floating	0.91 floating	1.27 not floating	0.95 floating
Melting Point	215℃	215℃	165℃	165℃	260℃	165℃/260℃
Abrasion Resistance	Very Good	Very Good	Medium	Medium	Good	Good
U.V.resistance	Very Good	Very Good	Medium	Medium	Good	Good
Temperature resistance	120℃ max	120℃ max	70℃ max	70℃ max	120℃ max	80℃ max
Chemical resistance	Very Good	Very Good	Good	Good	Good	Good

Parameters of Nylon Marine Mooring Rope for Reference:

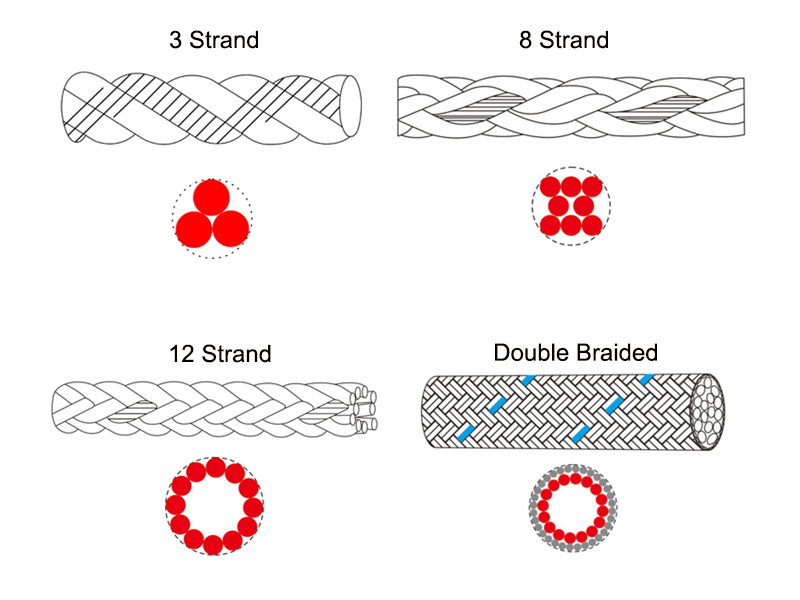

3 Strand:

Specification		PA multifilament		PA yarn		PP multifilament		Polypropylene		Polyester		PET/PP mixed
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN
4	1/2	10	3.7	10	2.6	6.3	2.3	6	2.1	12	2.9	7	2.8
6	3/4	22	7.9	22	6	18	6.5	17	5.9	27	5.6	17.5	6.8
8	1	40	13.8	40	10.9	32	11.4	30	10.4	48	10	31	11.9
10	1-1/4	62	21.2	62	15.7	47	16.8	45	15.3	76	15.6	48.5	18.2
12	1-1/2	89	30.1	89	24.1	68	23.9	65	21.7	110	22.3	69.9	25.7
14	1-3/4	121	40	121	33	95	32.9	90	29.9	148	31.2	95.1	34.7
16	2	158	51.9	158	42.5	121	40.7	115	37	195	39.8	124	44.8
18	2-1/4	200	64.3	200	53.9	155	51.9	148	47.2	245	49.8	157	56.1
20	2-1/2	247	79.2	247	66.7	189	62.6	180	56.9	303	62.3	194	68.7
22	2-3/4	299	94	299	80.4	231	75	220	68.2	367	74.7	235	82.1
24	3	355	112	355	96.3	273	87.7	260	79.7	437	89.6	279	96.3
26	3-1/4	417	129	417	111.5	320	101	305	92.2	512	105	328	113
28	3-1/2	484	149	484	127	373	115	355	105	594	120	380	130
30	3-3/4	555	169	555	143	425	132	405	120	682	134	437	148
32	4	632	192	632	161	483	146	460	132	778	154	497	167
36	4-1/2	800	240	800	200	614	182	585	166	982	190	629	210
40	5	987	294	987	241	756	221	720	201	1215	235	776	257
44	5-1/2	1190	351	1190	289	924	266	880	242	1468	275	939	308
48	6	1420	412	1420	338	1092	308	1040	280	1750	329	1110	364
52	6-1/2	1670	479	1670	393	1281	357	1220	325	2050	384	1320	424
56	7	1930	550	1930	450	1491	408	1420	371	2380	439	1520	489

8 Strand:

Specification		PA multifilament		PA yarn		PP multifilament		Polypropylene		Polyester		PET/PP mixed
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN
20	2-1/2	247	79.2	247	66.7	189	62.6	180	56.9	303	62.3	194	68.7
24	3	355	112	355	96.3	273	87.7	260	79.7	437	89.6	279	96.3
28	3-1/2	484	149	484	127	373	115	355	105	594	120	380	130
32	4	632	192	632	161	483	146	460	132	778	154	497	167
36	4-1/2	800	240	800	200	614	182	585	166	982	190	629	210
40	5	987	294	987	241	756	221	720	201	1215	235	776	257
44	5-1/2	1190	351	1190	289	924	266	880	242	1468	279	939	308
48	6	1420	412	1420	338	1092	308	1040	280	1750	329	1110	364
52	6-1/2	1670	479	1670	393	1281	357	1220	325	2050	384	1320	424
56	7	1930	550	1930	450	1491	408	1420	371	2380	439	1520	489
60	7-1/2	2220	627	2220	513	1712	467	1630	424	2730	489	1750	558
64	8	2530	709	2530	579	1943	528	1850	480	3110	568	1990	631
72	9	3200	887	3200	723	2457	663	2340	603	3930	707	2520	789
80	10	3950	1080	3950	884	3045	815	2900	741	4850	867	3110	963
88	11	4780	1300	4780	1053	3686	978	3510	890	5870	1040	3750	1160
96	12	5690	1530	5690	1239	4379	1155	4170	1050	6990	1230	4470	1370
104	13	6670	1780	6670	1482	5145	1325	4900	1204	8200	1420	5260	1590
112	14	7740	2050	7740	1690	5985	1529	5700	1390	9500	1620	6050	1840
120	15	8880	2340	8880	1930	6825	1756	6500	1596	10900	1865	6980	2100
128	16	10100	2650	10100	2187	7770	1982	7400	1802	12400	2110	7950	2370
136	17	11400	2980	11400	2461	8820	2231	8400	2029	14000	2400	8950	2660
144	18	12800	3320	12800	2751	9870	2490	9400	2264	15700	2650	10100	2970
160	20	15800	4060	15800	3395	12100	3051	11521	2774	19400	3270	12500	3630

12 Strand:

Specification		PA multifilament		PA yarn		PP multifilament		Polypropylene		Polyester		PET/PP mixed
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN
20	2-1/2	247	81	247	70	189	64	180	58	303	64	194	70
24	3	355	114	355	101	273	89	260	81	437	91	279	98
28	3-1/2	484	152	484	133	373	118	355	107	594	122	380	133
32	4	632	196	632	169	483	148	460	135	778	157	497	170
36	4-1/2	800	245	800	210	614	186	585	169	982	194	629	214
40	5	987	300	987	253	756	226	720	205	1215	240	776	262
44	5-1/2	1190	358	1190	303	924	271	880	246	1468	285	939	314
48	6	1420	420	1420	355	1092	315	1040	286	1750	336	1110	371
52	6-1/2	1670	489	1670	413	1281	364	1220	331	2050	392	1320	432
56	7	1930	561	1930	473	1491	416	1420	378	2380	448	1520	499
60	7-1/2	2220	640	2220	539	1712	476	1630	433	2730	499	1750	569
64	8	2530	723	2530	608	1943	539	1850	490	3110	579	1990	644
72	9	3200	905	3200	759	2457	676	2340	615	3930	721	2520	805
80	10	3950	1102	3950	928	3045	832	2900	756	4850	884	3110	982
88	11	4780	1326	4780	1106	3686	998	3510	907	5870	1061	3750	1183
96	12	5690	1561	5690	1301	4379	1178	4170	1071	6990	1255	4470	1397
104	13	6670	1816	6670	1556	5145	1351	4900	1228	8200	1448	5260	1622
112	14	7740	2091	7740	1775	5985	1560	5700	1418	9500	1652	6050	1877
120	15	8880	2387	8880	2027	6825	1791	6500	1628	10900	1902	6980	2142
128	16	10100	2703	10100	2296	7770	2022	7400	1838	12400	2152	7950	2417
136	17	11400	3040	11400	2584	8820	2276	8400	2069	14000	2448	8950	2713
144	18	12800	3386	12800	2889	9870	2540	9400	2309	15700	2703	10100	3029
160	20	15800	4141	15800	3565	12097	3112	11521	2829	19400	3335	12500	3703

Double Braided:

Specification		PA multifilament		Polyester		PP multifilament		Polyester/PA		Polyester/PP		Polyamide/PP
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN	Ktex	KN
4	1/2	10.3	3.7	12.2	3.2	8.4	2.4	12.0	4.0	9.0	2.6	8.5	2.7
6	3/4	23	8.3	27.4	7.2	18.8	5.4	27.0	9.0	20.2	5.8	19	6.0
8	1	41	15	49	13	33	9.6	48	16	36	10	34	11
10	1-1/4	64	23	76	20	52	15	75	25	56	16	53	17
12	1-1/2	92	33	109	29	75	22	108	35	81	23	76	25
14	1-3/4	126	45	149	39	102	29	147	47	110	31	104	33
16	2	164	59	195	51	133	38	192	62	143	41	136	44
18	2-1/4	207	75	246	65	168	49	243	78	181	52	172	55
20	2-1/2	255	92	304	80	208	60	300	96	224	64	212	68
22	2-3/4	309	111	368	97	252	73	363	116	271	77	256	82
24	3	368	127	440	114	299	86	430	138	325	93	304	98
28	3-1/2	501	172	597	157	404	118	585	182	430	124	415	130
32	4	654	225	779	205	528	154	760	236	576	162	542	170
36	4-1/2	828	285	998	262	668	195	970	314	732	216	679	227
40	5	1018	352	1220	324	825	240	1180	385	902	266	838	280
44	5-1/2	1236	420	1470	378	1006	294	1440	462	1093	324	1030	341
48	6	1473	500	1760	450	1190	354	1710	546	1300	380	1230	400
52	6-1/2	1730	600	2050	535	1390	411	2010	635	1525	443	1440	466
56	7	2009	690	2380	621	1610	474	2330	731	1773	513	1670	540
60	7-1/2	2297	780	2740	712	1850	539	2670	834	2035	584	1910	615
64	8	2616	900	3120	810	2090	613	3050	942	2310	665	2170	700
72	9	3306	1090	3950	980	2640	767	3860	1180	2924	846	2730	890
80	10	4089	1344	4870	1240	3290	934	4860	1442	3610	1036	3350	1090
88	11	4954	1626	5910	1500	3950	1117	5780	1729	4371	1254	4060	1320
96	12	5892	1950	7020	1750	4710	1304	6870	2033	5207	1501	4880	1580
104	13	6911	2320	8250	2090	5480	1513	8070	2402	6112	1758	5800	1850
112	14	8024	2670	9560	2400	6390	1694	9360	2730	7082	2043	6710	2150
120	15	9198	3050	10970	2750	7350	2010	10740	3100	8127	2328	7690	2450
