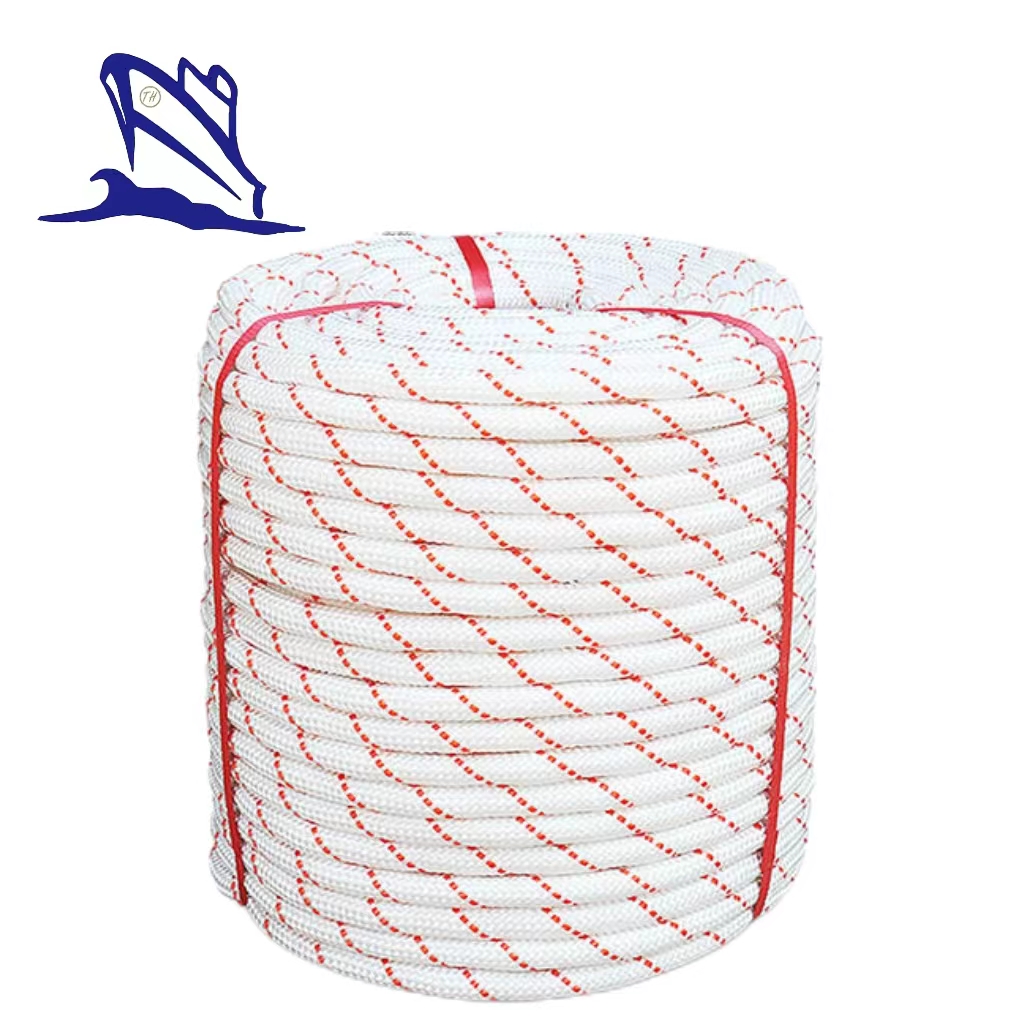

Polyamide Mooring Rope

Description:

Polyamide mooring rope also can be called nylon rope, which is made up of high quality polyamide fiber. The polyamide fiber used to make polyamide mooring ropes has stronger abrasion resistance than all other fibers. In addition to making polyamide mooring ropes, it can also be used to make the cover of double braided mooring ropes, which greatly increases the abrasion resistance of the ropes.Polyamide mooring rope is a type of synthetic rope commonly used in marine applications for securing ships to docks or to anchorages. Polyamide mooring ropes are made from a strong, synthetic fiber that is known for its high strength and excellent durability. The most commonly used polyamide for mooring ropes is nylon, which is known for its high tensile strength and abrasion resistance.
Polyamide mooring ropes are typically braided or twisted to increase their strength and durability. They come in a range of sizes and lengths, depending on the specific application they are intended for. They can also be coated with a protective layer to increase their resistance to water, UV radiation, and abrasion.
Polyamide mooring ropes have a high breaking strength and are able to withstand heavy loads, making them ideal for use in harsh marine environments. They are also resistant to most chemicals, which means that they can be used in a variety of different applications. However, polyamide mooring ropes can be affected by heat and can lose strength over time if exposed to sunlight or other sources of UV radiation.
Overall, polyamide mooring ropes are a strong and durable option for marine applications that require a high level of performance and reliability.

Advantages of Polyamide Mooring Rope:

1. High Strength: Polyamide mooring ropes are known for their exceptional strength and ability to withstand high loads. This makes them ideal for use in harsh environments such as offshore oil rigs and large ships.

2. Abrasion Resistance: These ropes are highly resistant to abrasion, which makes them an ideal choice for mooring applications. The rope can withstand continuous rubbing against sharp objects without fraying or losing strength.

3. Lightweight: Polyamide mooring ropes are lightweight and easy to handle. This makes them easy to transport and use, even in difficult situations.

4. Low Stretch: Polyamide ropes have low stretch properties, which is important for maintaining the stability of the mooring system. This means that the rope will not elongate when under load, ensuring that the vessel is held in place.

5. Good Shock Absorption: These ropes have good shock absorption properties, which is important in situations where the vessel may be subjected to sudden impacts or heavy loads.

6. UV Resistant: Polyamide mooring ropes are highly resistant to UV radiation, which means they can be used in sunny environments without suffering from damage due to exposure to the sun.

7. High Durability: These ropes are designed to withstand harsh conditions and can last for a long time without needing to be replaced. This makes them a cost-effective option for mooring applications.

Specification of Polyamide Mooring Rope:

1. Material: Nylon(polyamide) Fiber;

2. Strands: 3,8,12,16 or as your requirements;

3. Diameter: 4mm-160mm or on request;

4. Color: As your needs;

5. Applications: shipbuilding, ocean transportation, national defense, military industry, sea petroleum, harbor operation, etc.;

6. Packing: packaged with bags, standard export carton or by customer requirements;

7. Certificate: ABS, CCS, ISO, NK, BV, LR, RS, DNV, etc..

Main Performance of Polyamide Fiber for Reference:

Material	Polyamide multifilament	Polyamide yarn
Spec.Density	1.14 not floating	1.14 not floating
Melting Point	215℃	215℃
Abrasion Resistance	Very Good	Very Good
U.V.resistance	Very Good	Very Good
Temperature resistance	120℃ max	120℃ max
Chemical resistance	Very Good	Very Good

Prameters of 3 Strand Polyamide Mooring Rope:

Specification		PA multifilament		PA yarn
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex	KN
4	1/2	10	3.7	10	2.6
6	3/4	22	7.9	22	6
8	1	40	13.8	40	10.9
10	1-1/4	62	21.2	62	15.7
12	1-1/2	89	30.1	89	24.1
14	1-3/4	121	40	121	33
16	2	158	51.9	158	42.5
18	2-1/4	200	64.3	200	53.9
20	2-1/2	247	79.2	247	66.7
22	2-3/4	299	94	299	80.4
24	3	355	112	355	96.3
26	3-1/4	417	129	417	111.5
28	3-1/2	484	149	484	127
30	3-3/4	555	169	555	143
32	4	632	192	632	161
36	4-1/2	800	240	800	200
40	5	987	294	987	241
44	5-1/2	1190	351	1190	289
48	6	1420	412	1420	338
52	6-1/2	1670	479	1670	393
56	7	1930	550	1930	450

Prameters of 8 Strand Polyamide Mooring Rope:

Specification		PA multifilament		PA yarn
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex	KN
20	2-1/2	247	79.2	247	66.7
24	3	355	112	355	96.3
28	3-1/2	484	149	484	127
32	4	632	192	632	161
36	4-1/2	800	240	800	200
40	5	987	294	987	241
44	5-1/2	1190	351	1190	289
48	6	1420	412	1420	338
52	6-1/2	1670	479	1670	393
56	7	1930	550	1930	450
60	7-1/2	2220	627	2220	513
64	8	2530	709	2530	579
72	9	3200	887	3200	723
80	10	3950	1080	3950	884
88	11	4780	1300	4780	1053
96	12	5690	1530	5690	1239
104	13	6670	1780	6670	1482
112	14	7740	2050	7740	1690
120	15	8880	2340	8880	1930
128	16	10100	2650	10100	2187
136	17	11400	2980	11400	2461
144	18	12800	3320	12800	2751
160	20	15800	4060	15800	3395

Prameters of 12 Strand Polyamide Mooring Rope:

Specification		PA multifilament		PA yarn
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex
20	2-1/2	247	81	247
24	3	355	114	355
28	3-1/2	484	152	484
32	4	632	196	632
36	4-1/2	800	245	800
40	5	987	300	987
44	5-1/2	1190	358	1190
48	6	1420	420	1420
52	6-1/2	1670	489	1670
56	7	1930	561	1930
60	7-1/2	2220	640	2220
64	8	2530	723	2530
72	9	3200	905	3200
80	10	3950	1102	3950
88	11	4780	1326	4780
96	12	5690	1561	5690
104	13	6670	1816	6670
112	14	7740	2091	7740
120	15	8880	2387	8880
128	16	10100	2703	10100
136	17	11400	3040	11400
144	18	12800	3386	12800
160	20	15800	4141	15800

Prameters of 16 Strand Polyamide Mooring Rope:

Specification		PA multifilament		PA yarn
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex	KN
20	2-1/2	247	87	247	73
24	3	355	123	355	106
28	3-1/2	484	164	484	140
32	4	632	211	632	177
36	4-1/2	800	264	800	220
40	5	987	323	987	265
44	5-1/2	1190	386	1190	318
48	6	1420	453	1420	372
52	6-1/2	1670	527	1670	432
56	7	1930	605	1930	495
60	7-1/2	2220	690	2220	564
64	8	2530	780	2530	637
72	9	3200	976	3200	795
80	10	3950	1188	3950	972

Prameters of Double Braided Polyamide Mooring Rope:

Specification		PA multifilament		Polyester/PA		Polyamide/PP
Dia. (mm)	Cir. (inch)	Ktex	KN	Ktex	KN	Ktex	KN
4	1/2	10.3	3.7	12.0	4.0	8.5	2.7
6	3/4	23	8.3	27.0	9.0	19	6.0
8	1	41	15	48	16	34	11
10	1-1/4	64	23	75	25	53	17
12	1-1/2	92	33	108	35	76	25
14	1-3/4	126	45	147	47	104	33
16	2	164	59	192	62	136	44
18	2-1/4	207	75	243	78	172	55
20	2-1/2	255	92	300	96	212	68
22	2-3/4	309	111	363	116	256	82
24	3	368	127	430	138	304	98
28	3-1/2	501	172	585	182	415	130
32	4	654	225	760	236	542	170
36	4-1/2	828	285	970	314	679	227
40	5	1018	352	1180	385	838	280
44	5-1/2	1236	420	1440	462	1030	341
48	6	1473	500	1710	546	1230	400
52	6-1/2	1730	600	2010	635	1440	466
56	7	2009	690	2330	731	1670	540
60	7-1/2	2297	780	2670	834	1910	615
64	8	2616	900	3050	942	2170	700
72	9	3306	1090	3860	1180	2730	890
80	10	4089	1344	4860	1442	3350	1090
88	11	4954	1626	5780	1729	4060	1320
96	12	5892	1950	6870	2033	4880	1580
104	13	6911	2320	8070	2402	5800	1850
112	14	8024	2670	9360	2730	6710	2150
120	15	9198	3050	10740	3100	7690	2450
