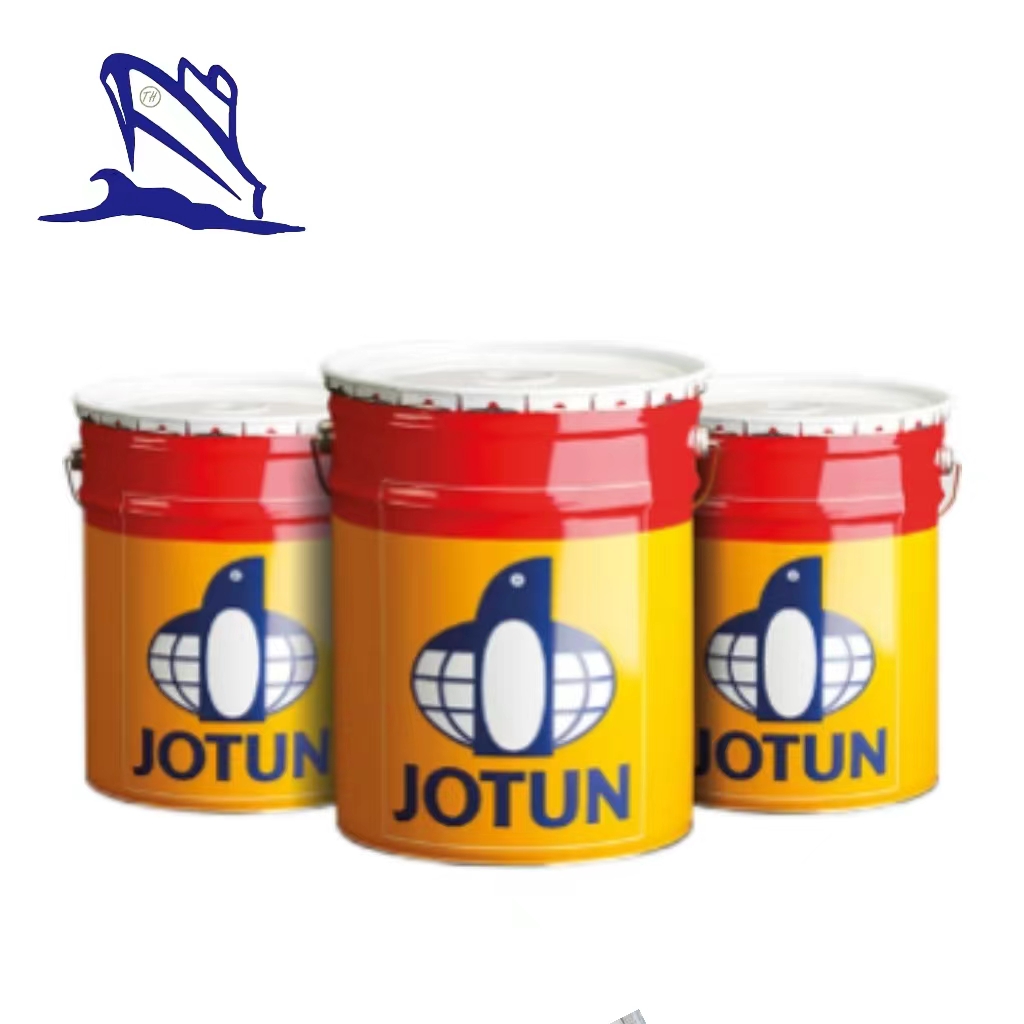

Jotun Marine Paint Pure Epoxy Primer for Ships
1. Product name: Jotun marine paint pure epoxy primer for ships
2. Introduce:This is a two component polyamide cured high molecular weight epoxy coating. It is a primer suitable for new construction projects. It can be used as a primer in both atmospheric and immersion environments.
3.Typical use: Suitable for steel structures and pipelines in highly corrosive and submerged environments. Recommended for use in offshore environments such as refineries, power plants, bridges, buildings, and mining equipment.
4.Color: Grey, red
| performance | Testing or Standards | Description |
| Volume solid content | ISO 3233 | 51±2% |
| GlossGU 60 ° | IS0 2813 | matte (0-35) |
| flash point | IS0 3679 Method1 | 25 °C |
| density | Theoretical value | 1.3 kg/1 |
| VOC - (USA/Hong Kong) | US EPA Method 24 (test value) (CARB (SCM) 2007, SCAQMD rule 1113, Hong Kong) | 440g/l |
| V0C -EU | IED (2010/75/EU) (theoretical value) | 456g/l |
| VoC -China | GB/T 23985- 2009 (after testing) | 415g/l |
Product Mix Ratio (Volume)
Penguard Primer component A 4 parts
Pure epoxy paint series component B 1 part
Guiding parameters for airless spraying
Nozzle aperture (inch/1000): 15-19
Nozzle pressure (minimum): 150 bar/2100 psi
Construction methods
This product can be constructed in the following ways
Spraying: Use airless spraying.
Brushing: Recommended for pre coating and small area painting. Pay attention to achieving a specific dry film thickness
storage
It must be stored in accordance with national regulations. The storage environment should be dry, cool, well ventilated, and away from heat and ignition sources. The packaging container must be kept closed. Handle with caution.
