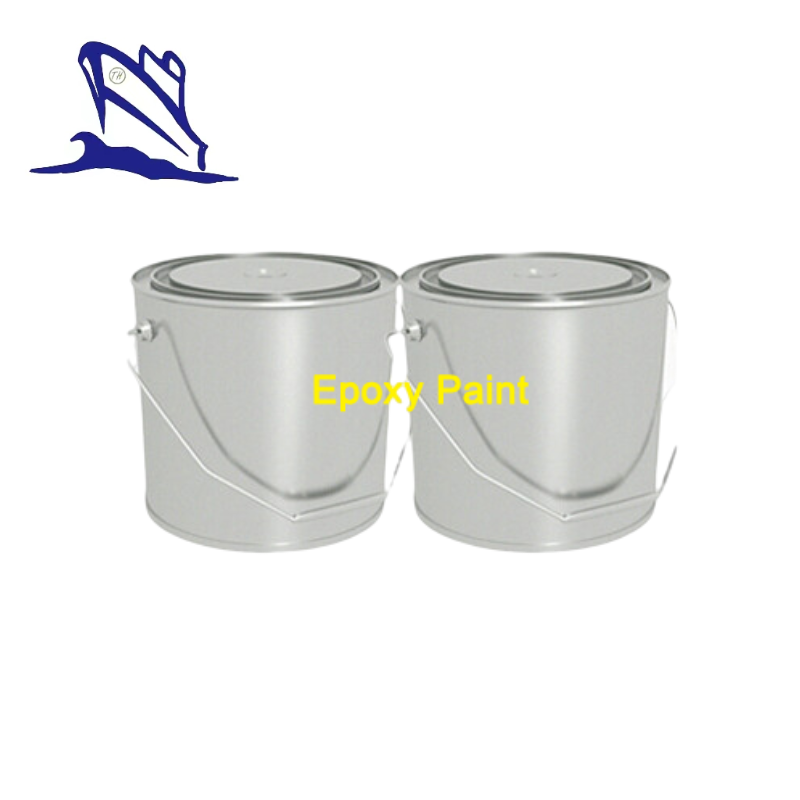

Jotun Paint Primer Epoxy F60 Outfitting Primer for Ships
1. Product name: Jotun paint Primer Epoxy F60 Outfitting Primer for Ships
2. Introduce:This is a two component polyamine cured pure epoxy coating. An outfitting primer that meets the optimal adhesion requirements for many surfaces. Can be used as a primer or intermediate in atmospheric and immersion environments
Intercoat, topcoat, or single coat system. Suitable for properly treated carbon steel, steel, stainless steel, aluminum, galvanized steel, glass fiber reinforced polyester, and thermal spraying for painting workshop primer
The surface of zinc. The applicable temperature range is from low temperature -196 ° C to 210 ° C, for both insulated and uninsulated surfaces.
3.Typical use: External and internal areas, including the hull shell, superstructure, deck, and ballast tanks.
4.Industrial protective paint field:Recommended for use in marine engineering environments, refineries, power plants, and mining equipment.
Note: Due to volatile organic compound regulations, this product is not recommended for use in ballast tanks in Korea.
5.Color:Grey, red, white, aluminum, aluminum red, bronze
Due to the different thermal stability of pigments, slight color changes may occur when the coating is heated. Please note that such color changes will not affect the performance of the coating.
| performance | Testing or Standards | Description |
| Volume solid content | ISO 3233 | 60±2% |
| Gloss GU 60 ° | IS0 2813 | Matte (0-35) |
| flash point | IS0 3679 Method1 | 26 °C |
| density | Theoretical value | 1.4 kg/1 |
| V0C - USA or Hong Kong | US EPA Method 24 (test value) (CARB (SCM) 2007, SCAQMD rule 1113, Hong Kong) | 359 g/l |
| V0C -EU | IED (2010/75/EU) (theoretical value) | 396 g/l |
| VoC -China | GB/T 23985- 2009 (after testing) | 356g/l |
Product Mix Ratio (Volume)
Epoxy paint F60 component A 4 parts
Epoxy paint F60 component B 1 part
Guiding parameters for airless spraying
Nozzle aperture (inch/1000): 19-31
Nozzle pressure (minimum): 150 bar/2100 psi
Construction methods
This product can be constructed in the following ways
Spraying: Use airless spraying.
Brushing: Recommended for pre coating and small area painting. Pay attention to achieving a specific dry film thickness.
Roller coating: can be used in small areas. Not recommended for the first primer coating. Pay attention to achieving a specific dry film thickness.
storage
It must be stored in accordance with national regulations. The storage environment should be dry, cool, well ventilated, and away from heat and ignition sources. The packaging container must be kept closed. Handle with caution.
