MARINE SHACKLE

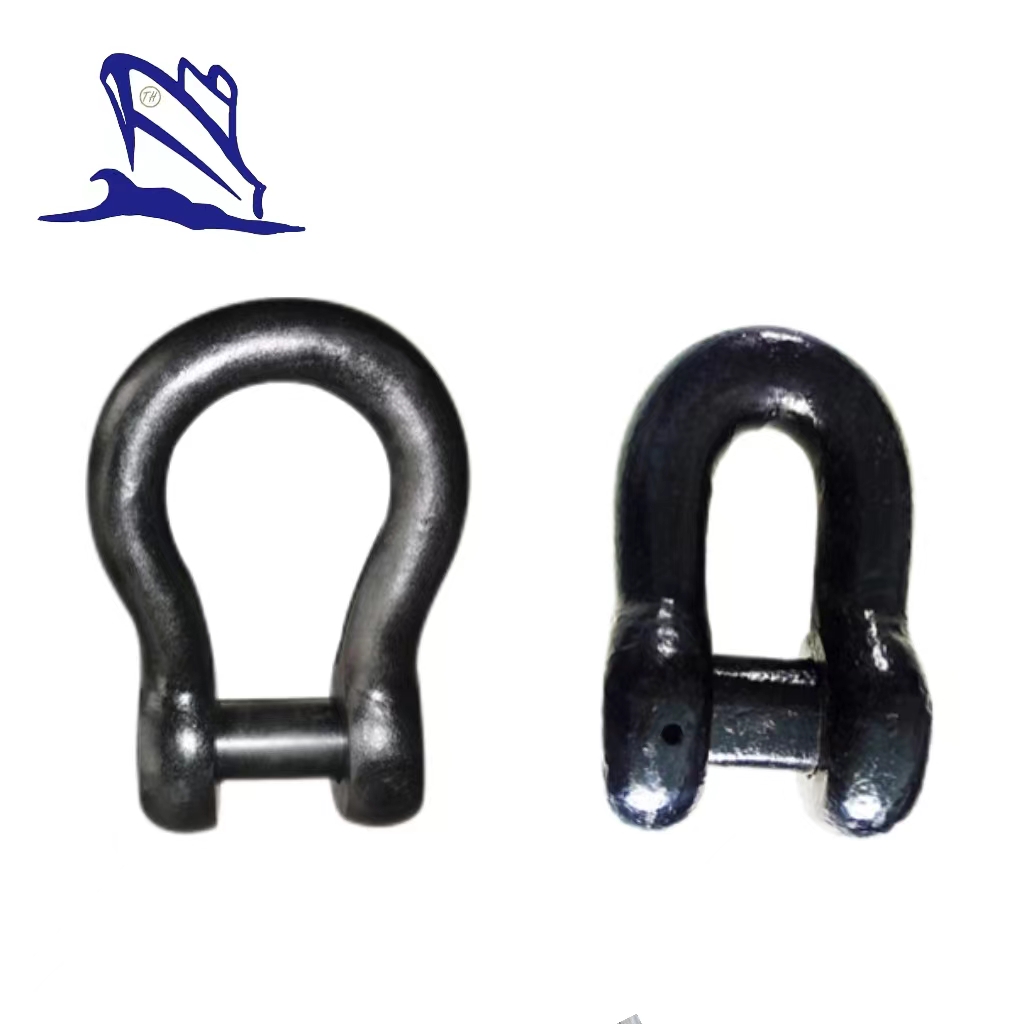

Anchor Shackle

Description:

An anchor shackle is a type of shackle that is used to secure an anchor chain to an anchor or to connect two lengths of chain together. It is typically made of metal, such as stainless steel or galvanized steel, and has a U-shaped design with a threaded pin that fits through the two ends of the U-shape.

The pin of an anchor shackle is removable, which makes it easy to attach and detach from the anchor or chain. This is particularly useful when it is necessary to replace the anchor or chain, or to switch between different types of anchors or chains.

Anchor shackles come in a variety of sizes and weight ratings, which allow them to be used with different sizes and weights of anchor chains. They are also designed to withstand heavy loads and harsh environments, making them ideal for marine and offshore applications.

Overall, anchor shackles are an essential component of any anchor system, as they provide a secure and reliable connection between the anchor and the chain, ensuring the safety and stability of the vessel.

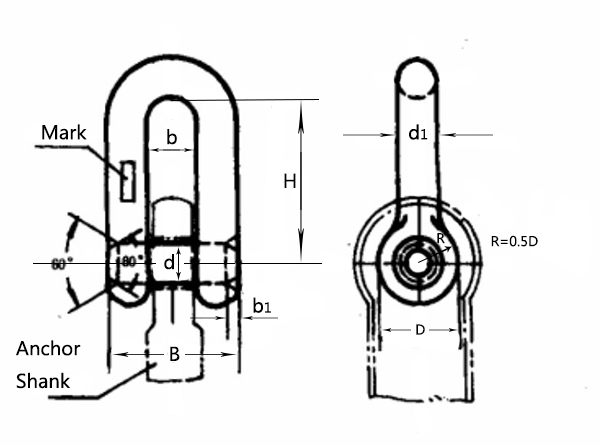

Main Model of Anchor Shackle Type A:

Model of Anchor Shackle	B	b	b1	D	d	d1	H	Weight (kg)	Maximum Applicable Anchor Mass (kg)
a1	49	21	4	35	16	14	60	0.40	15
a2	57	25	4	40	19	16	72	0.63	20
a3	70	30	5	45	22	20	84	1.01	30
a4	78	34	5	50	26	22	98	1.43	50
a5	85	37	6	60	30	24	115	2.10	100
a6	98	42	7	68	34	28	130	3.20	150
a7	110	46	8	75	36	32	145	4.50	200
a8	122	50	9	80	40	36	160	6.00	250
a9	136	56	10	90	45	40	175	8.30	360
a10	151	61	11	100	52	45	192	11.50	450
a11	163	67	12	110	55	48	215	14.70	600
a12	174	74	13	120	60	50	235	17.80	800
a13	200	80	14	130	65	60	255	26.30	1020
a14	215	91	15	156	75	62	280	35.00	1500
a15	236	100	17	174	80	68	310	46.80	2000
a16	256	108	19	190	90	74	340	60.70	2500
a17	279	115	20	210	100	82	380	80.80	3060
a18	284	120	20	210	100	82	385	82.80	3540
a19	305	125	22	230	110	90	410	106.0	4050
a20	310	130	22	230	110	90	410	109.0	4500
a21	335	135	25	250	120	100	415	139.0	5000
a22	343	143	25	250	120	100	450	144.6	6000
a23	370	150	27	270	130	110	480	192.0	7000
a24	377	157	27	280	130	110	500	196.3	8000
a25	391	163	30	300	138	117	540	238.6	9000
a26	418	170	30	310	145	124	580	280.0	10000
a27	437	177	32	320	150	130	600	314.0	11100
a28	452	182	32	335	155	135	620	353.0	12300
a29	468	188	34	345	160	140	640	390.0	13500
a30	483	193	34	355	165	145	660	430.0	14700
a31	498	198	36	365	170	150	680	471.0	16100
a32	515	205	36	380	175	155	700	523	17800
a33	534	214	38	395	185	160	730	584	20000
a34	564	224	38	410	190	170	770	679	23000
a35	594	234	40	430	200	180	800	791	26000
a36	611	241	40	445	205	185	820	863	29000
a37	626	246	42	455	210	190	850	934	31000
a38	642	252	42	465	215	195	860	999	33000
a39	657	257	44	475	220	200	880	1072	35500
a40	674	264	44	490	225	205	910	1165	38500
a41	692	272	46	510	235	210	940	1279	42000
a42	720	280	46	520	240	220	960	1412	46000

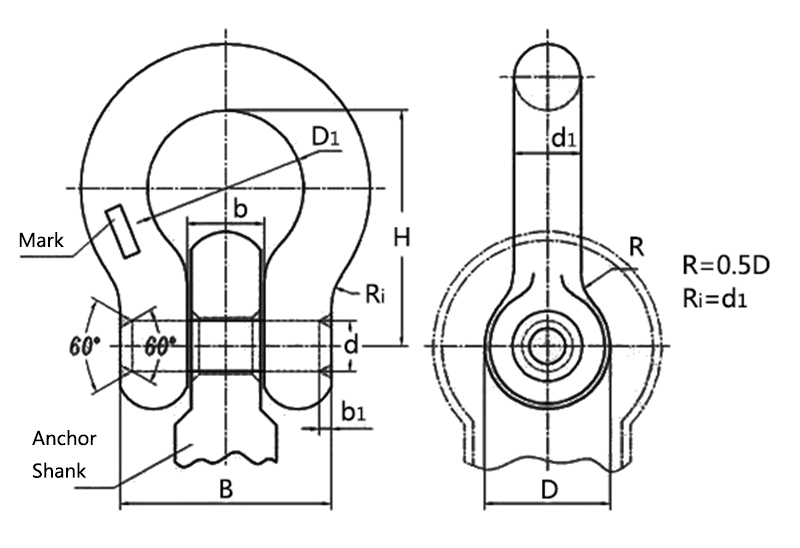

Main Model of Anchor Shackle Type B:

Model of Anchor Shackle	B	b	b1	D	D1	d	d1	H	Weight (kg)	Maximum Applicable Anchor Mass (kg)
b1	53	21	4	40	60	16	16	83	0.71	15
b2	65	25	4	45	70	19	20	100	1.20	20
b3	74	30	5	50	82	22	22	115	1.66	30
b4	82	34	5	60	90	26	24	135	2.35	50
b5	93	37	6	68	108	30	28	160	3.70	100
b6	106	42	7	75	124	34	32	183	5.30	150
b7	118	46	8	80	138	36	36	200	7.20	200
b8	130	50	9	90	150	40	40	218	9.80	250
b9	146	56	10	100	166	45	45	242	13.70	300
b10	157	61	11	110	180	52	48	263	17.40	400
b11	167	67	12	120	200	55	50	290	21.00	600
b12	194	74	13	130	220	60	60	320	31.70	800
b13	200	80	14	130	236	65	60	345	33.40	1000
