MARINE SHACKLE

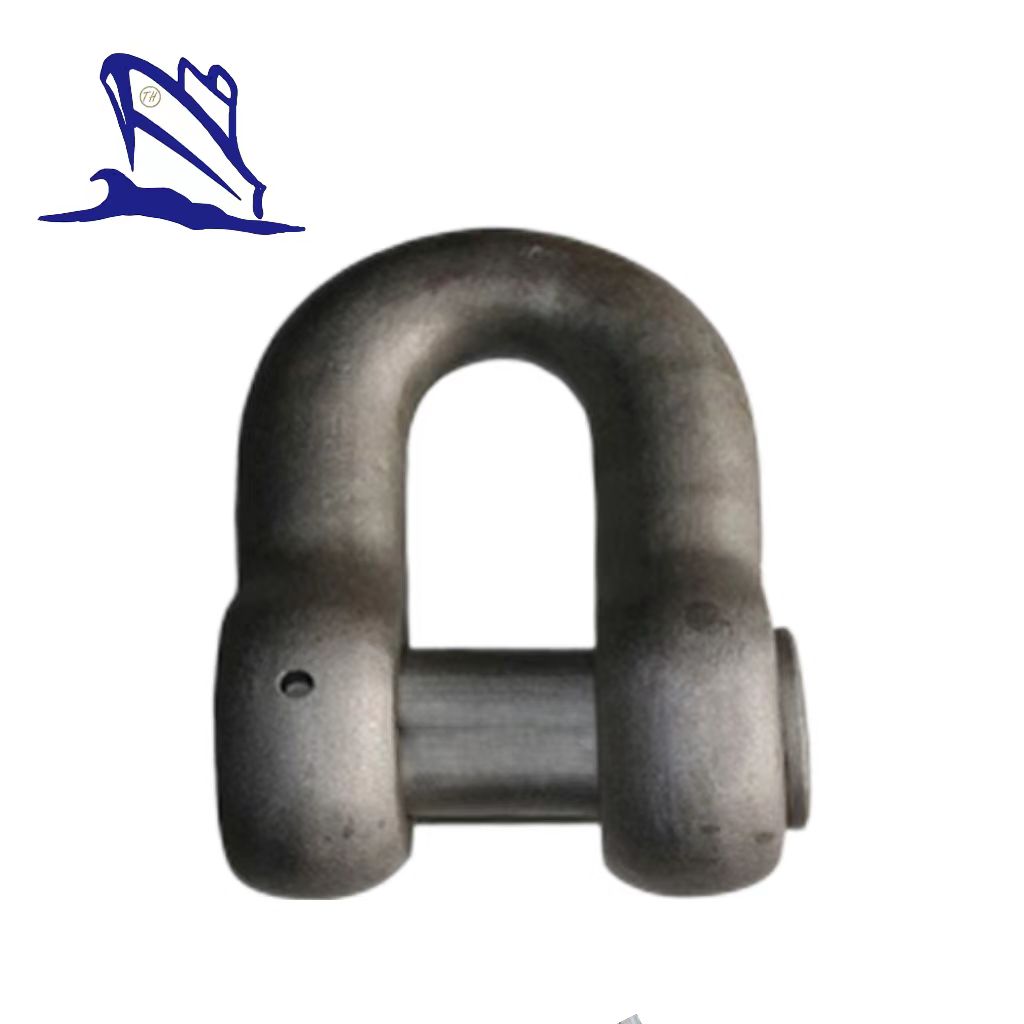

Straight Shackle

Description:

A straight shackle is a type of shackle that is used to connect two pieces of equipment or to secure an object. It consists of a U-shaped metal rod that is closed with a straight pin or bolt. The pin or bolt is threaded through the ends of the U-shaped rod, securing it in place.

Straight shackles are commonly used in a variety of industries, including marine, construction, and industrial applications. They are often used to secure rigging or to connect chains, ropes, and other equipment.

One of the advantages of straight shackles is their strength and durability. They are typically made from high-quality steel or other metals, which allows them to withstand heavy loads and harsh conditions. Additionally, they are relatively easy to use and can be quickly attached and detached, making them a versatile and convenient option for many different applications.

Overall, straight shackles are a reliable and essential component of many different types of equipment and systems, and they are valued for their strength, durability, and ease of use.

Features:

Type: Straight Shackle;

Material: Forged Steel;

Grade: Grade 2 & Grade 3;

Surface: Black Bituminous Painted, Hot Dip Galvanized;

Size: Can be customized;

Packing: Carton or Wooden Case;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc.

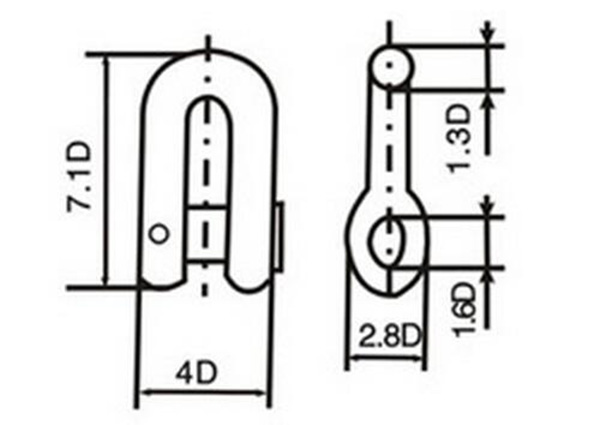

Main Model of Straight Shackle:

Nominal Diameter (mm)	d3	l3	p3	w3	a1	e1	f1	g1	g2	h1	h2	2R1	2R2	Weight (kg)
11	15	78	37	44	9	18	31	2.2	1.1	4	23	13	11	0.53
12.5	16	89	43	50	10	20	35	2.5	1.3	4	25	15	12.5	0.60
14	18	99	48	56	11	22	39	3.0	1.4	6	28	17	14.0	0.67
16	21	114	54	64	13	26	45	3.0	1.6	6	32	21	17.5	0.95
17.5	23	124	60	70	14	28	49	3.5	1.8	6	38	21	17.5	1.34
19	25	135	65	76	15	30	53	4.0	2.0	6	40	23	19.0	1.84
20.5	27	146	70	82	16	33	57	4.0	2.0	6	45	25	20.5	2.20
22	29	156	75	88	18	35	62	4.4	2.2	6	50	26	22.0	2.66
24	31	170	82	96	19	38	67	5.0	2.4	8	55	29	24.0	3.40
26	34	185	88	104	21	42	73	5.0	2.6	8	60	31	26.0	4.50
28	36	199	95	112	22	45	78	5.6	2.8	8	60	34	28.0	5.19
30	39	213	102	120	24	48	84	6.0	3.0	8	70	36	30.0	6.32
32	42	227	109	128	26	51	90	6.4	3.2	8	75	38	32.0	8.24
34	44	241	116	136	27	54	95	7.0	3.4	8	80	41	34.0	9.56
36	47	256	122	144	29	58	101	7.0	3.6	10	80	43	36.0	11.31
38	49	270	129	152	30	61	106	7.6	3.8	10	85	46	38.0	13.45
40	52	284	136	160	32	64	112	8.0	4.0	10	90	48	40.0	15.50
42	55	298	143	168	34	67	118	8.4	4.2	10	95	50	42.0	18.10
44	57	312	150	176	35	70	123	9.0	4.4	10	100	53	44.0	20.25
46	60	327	156	184	37	74	129	9.0	4.6	10	105	55	46.0	23.33
48	62	341	163	192	38.5	77	134	9.5	4.8	12	110	58	48.0	27.50
50	65	355	170	200	40	80	140	10	5.0	12	115	60	50.0	31.60
52	68	369	177	208	42	83	146	10.4	5.2	12	120	62	52.0	34.00
54	70	383	184	216	43	86	151	11.0	5.4	12	125	65	54.0	38.50
56	73	398	190	224	45	90	157	11.0	5.6	12	130	67	56.0	46.00
58	75	412	197	232	46	93	162	11.6	5.8	12	140	70	58.0	46.80
60	78	426	204	240	48	96	168	12.0	6.0	12	140	72	60.0	51.00
62	81	440	211	248	50	99	174	12.4	6.2	12	145	74	62.0	59.20
64	83	454	218	256	51	102	179	13.0	6.4	16	150	77	64.0	62.70
66	86	469	224	264	53	106	185	13.0	6.6	16	150	79	66.0	75.00
68	88	483	231	272	54	109	190	13.6	6.8	16	155	82	68.0	76.70
70	91	497	238	280	56	112	196	14.0	7.0	16	160	84	70.0	90.00
73	95	518	248	292	58	117	204	14.6	7.3	16	170	88	73.0	95.00
76	99	540	258	304	61	122	213	15.0	7.6	16	180	91	76.0	107.00
78	101	554	265	312	62	125	218	15.6	7.8	16	180	94	78.0	116.00
81	105	575	275	324	65	130	227	16.0	8.0	16	190	97	81.0	130.00
84	109	596	286	336	67	134	235	17.0	8.4	16	200	101	84.0	136.00
87	113	618	296	348	70	139	244	17.4	8.7	16	200	104	87.0	160.00
90	117	639	306	360	72	144	252	18.0	9.0	16	210	108	90.0	176.00
92	120	653	313	368	74	147	258	18.4	9.2	16	220	110	92.0	196.00
95	124	675	323	380	76	152	266	19.0	9.5	16	220	114	95.0	215.00
97	126	689	330	388	78	155	272	19.4	9.7	20	230	116	97.0	222.00
100	130	710	340	400	80	160	280	20.0	10.0	20	230	120	100.0	252.00
102	133	724	347	408	82	163	286	20.4	10.2	20	240	122	102.0	267.00
105	137	746	357	420	84	168	294	21.0	10.5	20	250	126	105.0	294.00
107	139	760	364	428	86	171	300	21.4	10.7	20	260	128	107.0	305.00
111	144	788	377	444	89	178	311	22.0	11.0	20	260	133	111.0	325.00
114	148	809	388	456	91	182	319	23.0	11.4	20	280	137	114.0	345.00
117	152	831	398	468	94	187	328	23.4	11.7	20	280	140	117.0	365.00
120	156	852	408	480	96	192	336	24.0	12.0	20	290	144	120.0	400.00
122	159	866	415	488	98	195	342	24.5	12.3	20	300	146	122.0	425.00
124	161	880	422	496	99	198	347	25.0	12.4	20	300	149	124.0	465.00
127	165	902	432	508	102	203	356	25.4	12.7	25	300	152	127.0	499.00
130	169	923	442	520	104	208	364	26.0	13.0	25	320	156	130.0	536.00
132	172	937	449	528	106	211	370	26.4	13.2	25	320	158	132.0	561.00
137	178	973	466	548	110	219	384	27.5	13.7	25	320	164	137.0	627.00
142	185	1008	483	568	114	227	398	28.4	14.2	25	350	170	142.0	698.00
147	191	1044	500	588	118	235	412	29.4	14.7	25	350	176	147.0	774.00
152	198	1079	517	608	122	243	426	30.4	15.2	25	350	182	152.0	856.00
157	204	1115	534	628	126	251	440	31.4	15.7	25	400	188	157.0	943.00
162	211	1150	551	648	130	259	454	32.4	16.2	25	400	194	162.0	1036.00
