AIDS TO NAVIGATION

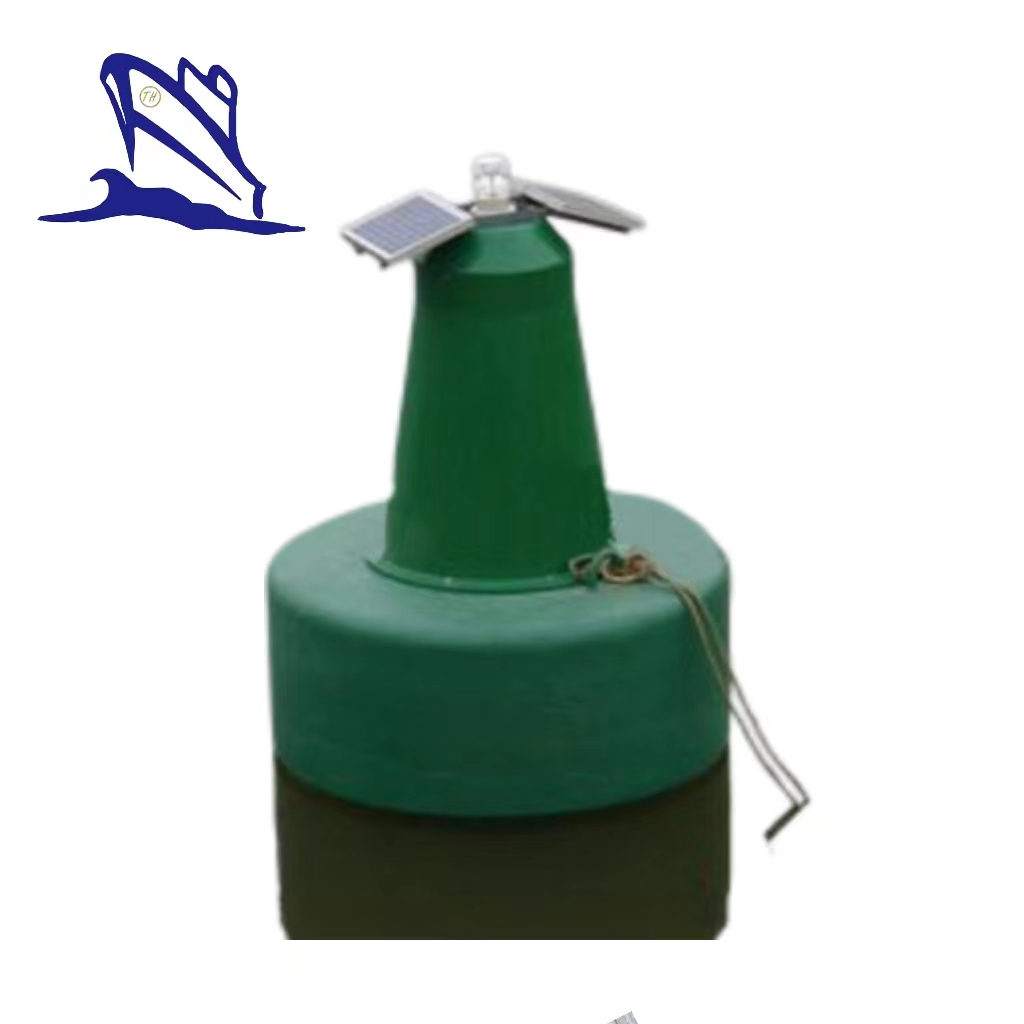

Marine Polyurea Navigation Buoy

Marine polyurea navigation buoy is IALA recommended navigation aids. It is widely used for the guiding of ship’s safe sailing.

Details of Polyurea Buoy

1. Application: open seas, river, port or other waters

2. Material: new composite materials, high-density elastic polyurethane; stainless steel skeletons; closed-cell elastic foam

3. Color: Red, Green, Yellow or other high visuality colors as required

4. Sizes: 0.8m, 1.2m, 1.5m, 1.8m, 2.4m, 3.0m etc. (we can customize the sizes according to your requirements)

5. Long Service Life and Free Maintenance Time

6. Great Corrosion Resistance, High Temperature Resistance, Anti-collision and Good Buoyancy Ability, Light Weight for Easy Transportation

7. Certificate: CCA/IALA

Specification of 1.2m Polyurea Buoy

1. Body Diameter: 1200mm

2. Body Height: 2250mm

3. Freeboard: 400mm

4. Focal Plane Height: 1680mm

5. Draft Height: 600mm

6. Reserve Buoyancy: 450kg

Basic Parameters of Polyurea Buoy
